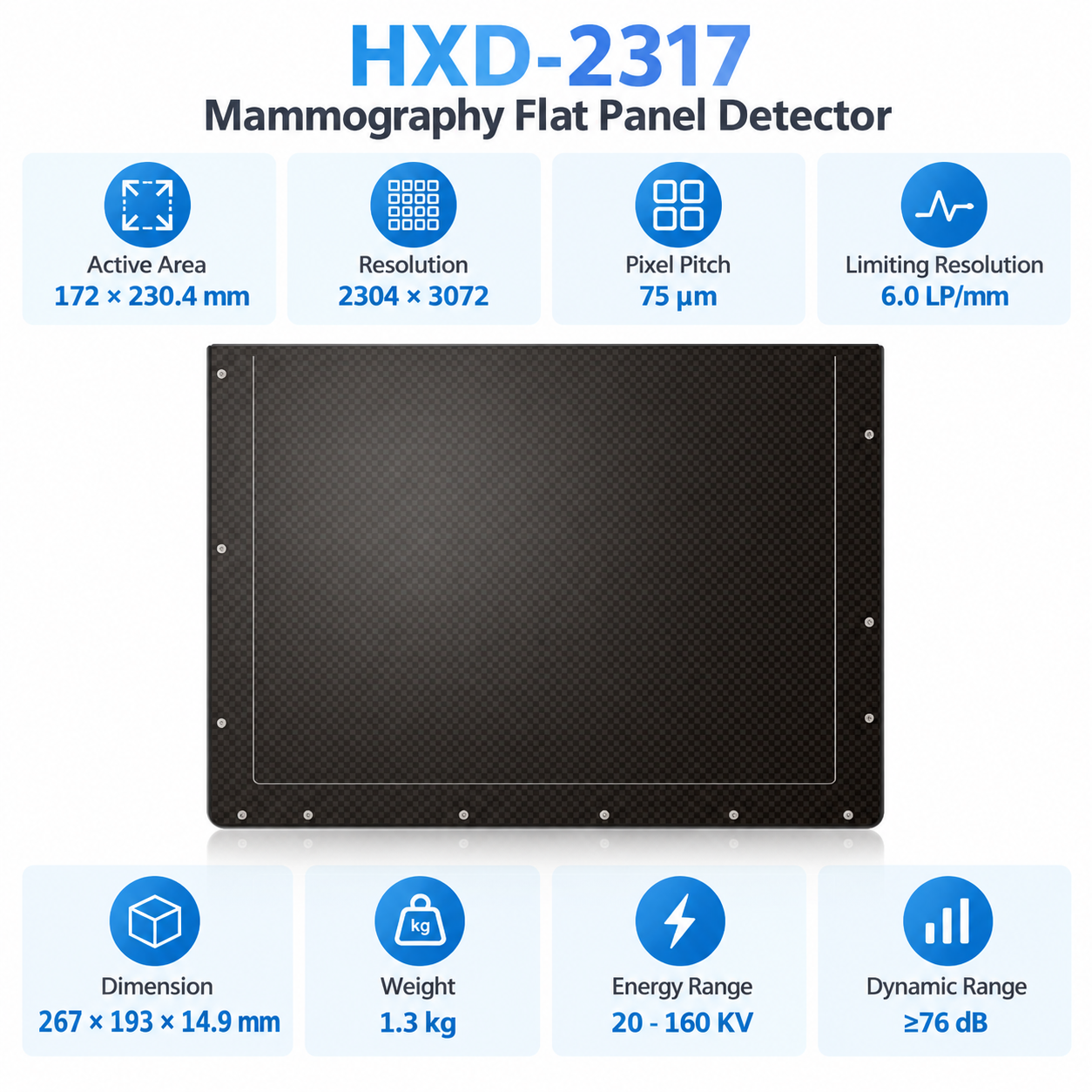

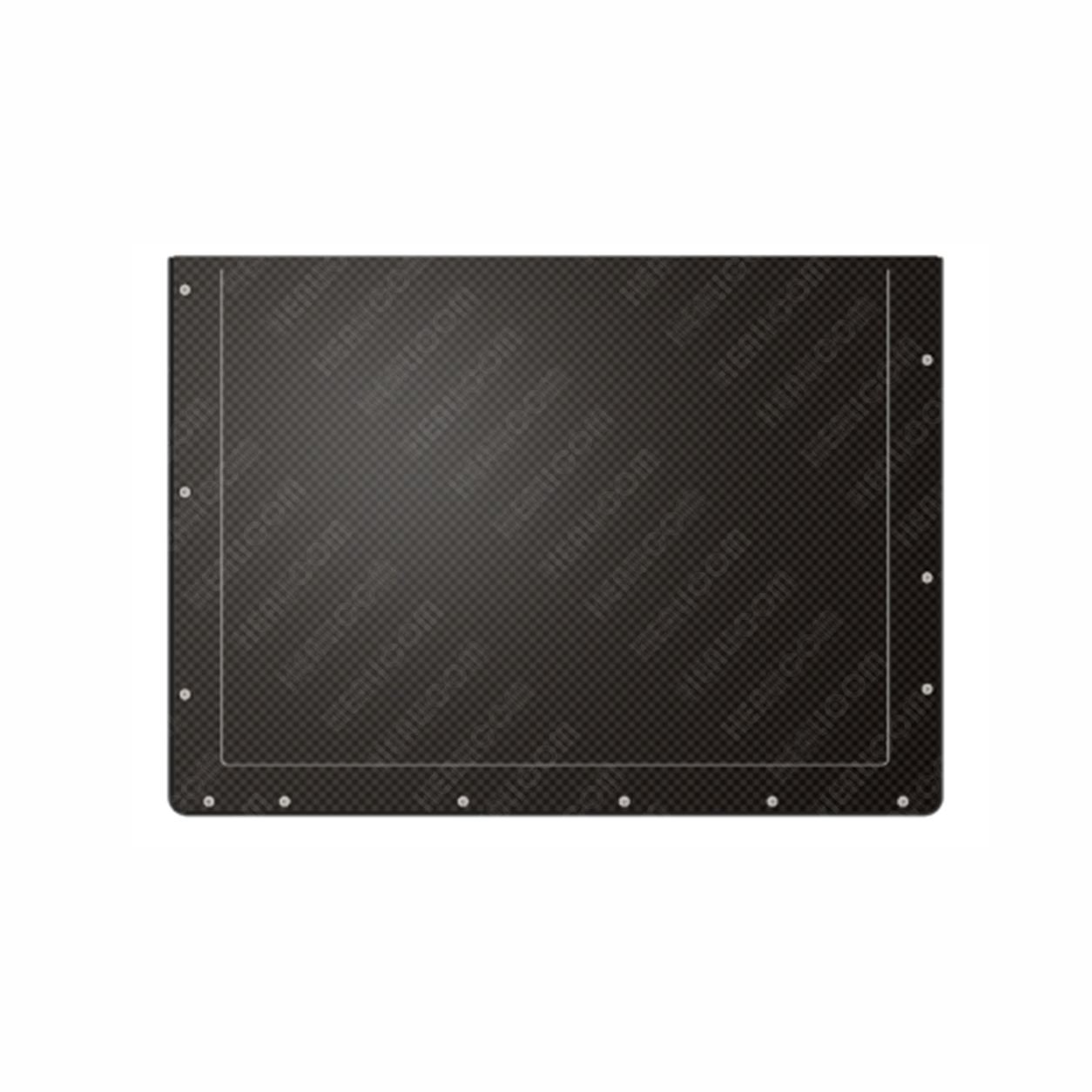

HXD-2317
Healicom
Product Description
| Receptor Type | a-Si |
| Scintillator | CsI:Tl |
| Active Area | 230.4 x 172 mm |
| Resolution | 3072 x 2304 |
| Pixel Pitch | 75 μm |
| Adapter In | AC 100-240V, 50-60Hz |
| Adapter Out | DC 24V, 2.7A |
| Power Dissipation | 20 W |
| Limiting Resolution | 5.9 LP/mm |
| Energy Range | 40-150 KV |
| Dynamic Range | ≥76 DB |
| Sensitivity | ≥0.54 LSB/nGy |
| Ghost | < 1% 1st frame |
| A/D Conversion | 16 bits |
| Data Interface | Gigabit Ethernet |
| Acquire Time | 1 S |
| Exposure Control | Software/Sync/AED |
| Dimension | 267 × 193 × 14.9 mm |
| Weight | 1.5 kg |
| Material | Aluminum and magnesium alloys |
| Front Panel | Carbon fiber |
| Narrowest Edge Distance | ≤3 mm |
| Temperature | 10-35°C (operating); -10~50°C (storage) |
| Humidity | 30-70% RH (non-condensing) |
| Ingress Protection | IP51 |
