Imagine doctors waiting 15 minutes in a dark room just to see a single, static X-ray. Early fluoroscopy was a slow, cumbersome process. Surgeons operated blind for long stretches. Today, the modern surgical environment looks vastly different. This transformation largely stems from one foundational piece of medical equipment. You might wonder about the origin of the name. The "C-arm" gets its name from its distinctive semicircular chassis. This curved gantry connects the X-ray source at one end to the image detector at the other.
However, the C-shape is not just an architectural quirk. It represents a massive leap in medical engineering. This specific design enables seamless orbital rotation. It allows surgeons to perform real-time, multi-angle C-arm fluoroscopy without ever repositioning the patient. This fundamentally drives operating room efficiency. It significantly reduces infection risks by maintaining the sterile field intact. It also lowers secondary surgery rates by improving intraoperative accuracy.
This article provides medical facility administrators and clinical leads with a clear framework. You will learn how to evaluate, size, and select the right imaging system. We will guide you through matching equipment configurations to your specific specialty workflows safely and effectively.
The Anatomical Advantage: The C-shaped arm allows 180-degree orbital rotation around the surgical table, delivering dynamic imaging without compromising the sterile field.
Application Drives Configuration: Sizing (Mini to Super C) and detector type (II vs. FPD) must be dictated by clinical specialty (e.g., vascular requires 12-inch fields and high generator power, while basic orthopedics can utilize cost-effective 9-inch models).
TCO and Future-Proofing: Budget-conscious facilities can leverage digital retrofits for older analog models, while advanced workflows benefit from cord-free, battery-operated units to streamline ICU and ER operations.

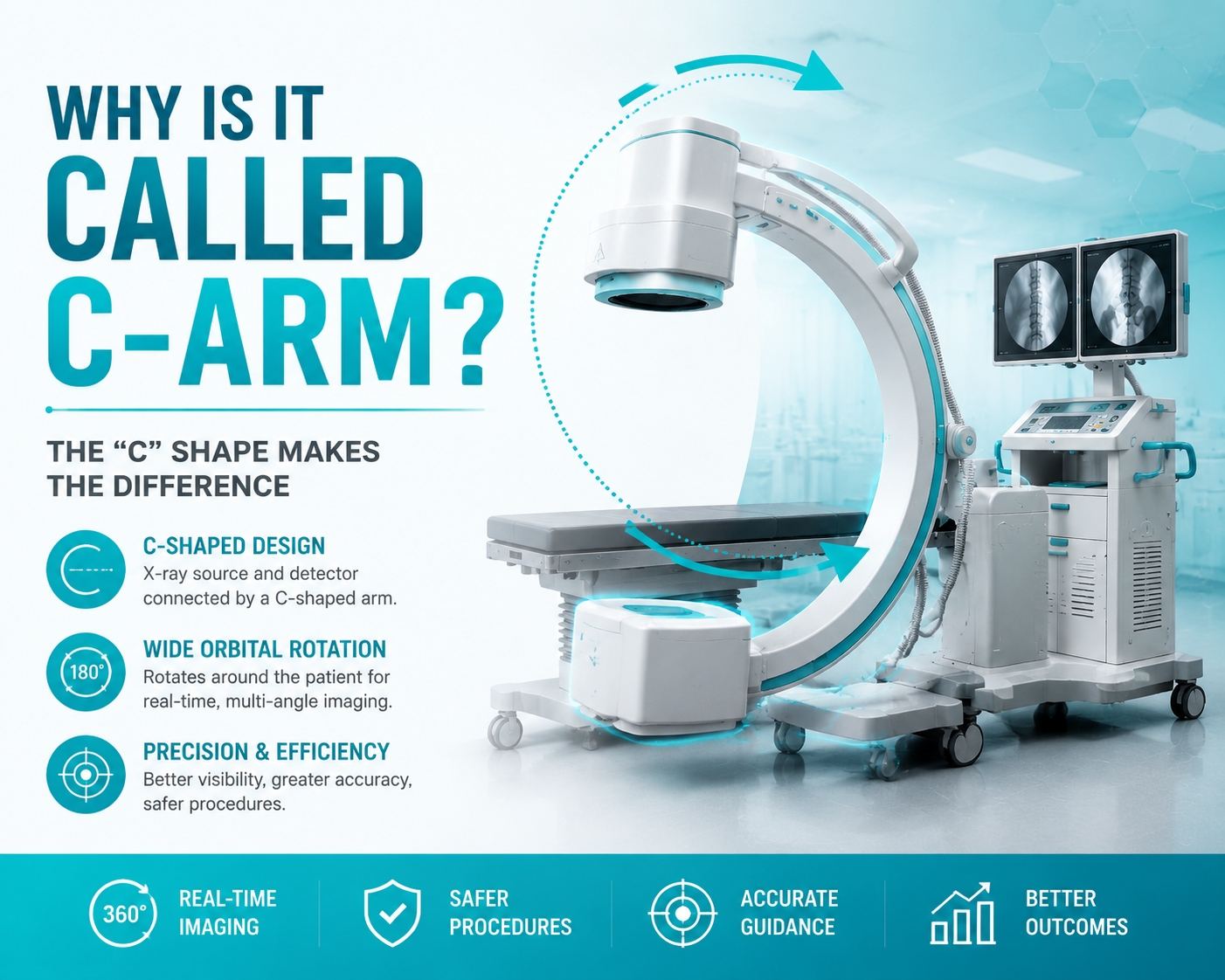

We must look at the physical architecture first. An X-ray generator sits firmly at one end of the machine. The image detector sits at the opposite end. A rigid, C-shaped gantry connects them together. This creates a perfect semi-circle around the operating table. The open gap accommodates the patient easily.
The true magic lies in its mechanical advantage. The C-shape allows the machine to rotate smoothly. It moves axially along the patient's body. It also moves orbitally around the patient. It swivels around a stationary surgical bed seamlessly. You can capture anterior-posterior views in moments. You switch to lateral views in seconds.
This movement eliminates massive clinical headaches. You never need to move the patient during complex procedures. Moving a sedated patient disrupts critical surgical alignment. It risks breaking the sterile boundary. The orbital swivel preserves surgical alignment flawlessly. Surgeons rely on this stability to ensure absolute precision. It maintains the sterile zone perfectly. Procedure times drop drastically compared to older fixed setups. Surgeons make quick visual confirmations instantly. They adjust implants or catheters in real time. This immediate feedback loop saves lives. It also reduces hospital overhead significantly. You avoid costly secondary surgeries caused by blind placements.
We must move beyond basic definitions. Procurement teams need detailed technical specifications. Several core components drive system performance daily. You must understand these parts to make smart purchasing decisions.
X-Ray Generator Power: Engineers measure this power in kilowatts (kW). This metric dictates your image clarity. High power penetrates dense anatomy easily. It accommodates larger patients without losing resolution. Standard pain injections might only need low kW ratings. Complex vascular work demands much higher power outputs.
Anode Heat Capacity: This is a critical metric for long procedures. Vascular or cardiac surgeries require continuous, prolonged scanning. The X-ray tube generates massive amounts of heat rapidly. Active cooling systems prevent sudden machine overheating. Rotating anodes dissipate heat effectively during operations. High heat capacity ensures you avoid costly downtime mid-surgery.
The Detector: This component acts as the visual receiver. It captures the invisible photons passing through the patient. It converts these photons into a live digital feed. You typically choose between two main technologies here. You select either a traditional Image Intensifier or a modern Flat Panel.
Finally, the workstation control panel ties everything together. It serves as your digital command hub. Technicians manage radiation dose levels directly from this console. It provides seamless image post-processing tools. It ensures direct integration into hospital PACS networks. It also connects flawlessly with advanced surgical navigation software.
You must match machine size to your clinical workflow. Physical dimensions dictate medical specialty applications directly. Buying an oversized machine wastes money and space. Buying an undersized machine limits your clinical capabilities severely. Use this sizing guide to make informed procurement decisions.
Mini C-Arms: These compact units are highly mobile. They feature much smaller fields of view. The viewing area typically ranges from four to six inches. This restricted view is intentional and highly specialized. They are incredibly lightweight and easy to steer. You can move them between clinic rooms easily. They are ideal for sports medicine clinics and podiatry. Surgeons use them for closed reductions of small extremities. They work perfectly for scanning hands, feet, and ankles.
Compact C-Arms: This format offers a great hybrid solution. They fit smaller outpatient clinics perfectly. They work very well in tight operating rooms. Full-scale mobility is often constrained in these smaller spaces. However, doctors still need broader anatomical imaging capabilities. Compact models bridge the gap brilliantly. They sit right between mini units and full-size hospital systems.
Full-Size C-Arms: These represent the undeniable industry standard for hospitals. They feature a large internal clearance area. The gap measures roughly 26 inches across. This ample space easily accommodates standard surgical tables. It gives surgeons room to operate without bumping the hardware. They are perfectly suited for complex spine procedures. They handle abdominal scans and routine pain management injections flawlessly.
Super C C-Arms: Engineers designed these specifically for maximum working space. They provide an impressive 33 inches of internal clearance. They easily accommodate bariatric patients without compromising image quality. They also handle highly complex cardiovascular setups. Cardiovascular surgeries often require bulky ancillary equipment nearby. The extra clearance keeps the machine away from the sterile field.
This choice represents your most significant financial decision. Should you choose legacy analog technology or modern digital sensors? The detector type dictates the baseline cost of the entire system.
Image Intensifiers represent the analog legacy of medical imaging.
Pros: They remain highly cost-effective for budget-conscious buyers. They offer proven, robust reliability for standard daily procedures. Basic orthopedics and straightforward pain management rely heavily on them. They provide excellent return on investment for low-complexity outpatient centers.
Cons: They have a bulky, heavy physical profile. This makes the machine harder to maneuver quickly. Image quality can degrade slowly over time. The vacuum tubes lose efficiency after years of heavy use. They are also highly susceptible to magnetic distortion near MRI rooms.
Flat-Panel Detectors represent the modern digital standard.
Pros: They feature a much smaller physical footprint. This compact design frees up critical operating room space. They provide consistent, edge-to-edge high-resolution imaging. They do not suffer from time-based image degradation at all. Furthermore, they operate at significantly lower radiation doses. This protects both the patient and the surgical staff daily.
Cons: They require significantly higher upfront capital expenditure. Repairing a damaged flat panel is also very expensive.
Fortunately, there is a highly effective financial compromise. You can explore the route of digital retrofitting. This process upgrades existing analog frames affordably. Technicians install modern digital flat panels on legacy systems. It extends your equipment lifespan beautifully. You completely avoid a massive total system replacement. It serves as an excellent mid-tier financial strategy for hospitals.
Feature | Image Intensifier (II) | Flat-Panel Detector (FPD) |
|---|---|---|
Core Technology | Analog vacuum tube | Digital solid-state sensor |
Physical Footprint | Bulky and heavy | Compact and lightweight |
Image Quality | Center focus, degrades at edges | Edge-to-edge consistent resolution |
Radiation Dose | Standard operational levels | Significantly reduced exposure |
Upfront Cost | Highly affordable and accessible | Substantial capital investment |
You should create a strict decision-matrix framework. Base it entirely on your actual medical department needs. Do not buy expensive features you will never use. Let the clinical application drive the final hardware configuration.
Orthopedics and pain management usually require standard setups. A basic 9-inch field of view works perfectly for joint injections. Simple image storage is often enough for these departments. Last Image Hold capabilities suffice for most doctors. This straightforward configuration keeps initial costs low. It maximizes your immediate return on investment effectively.
Vascular and neurology departments need much more firepower. They require a 12-inch field of view minimum. This larger sensor provides a wider view of the vascular system. You must include advanced software capabilities as well. Digital Subtraction Angiography is absolutely mandatory. It removes bone structures from the image to highlight blood vessels clearly. Roadmapping software is also essential for safe contrast agent visualization.
Cardiac and critical care demand peak machine performance. High generator power is entirely non-negotiable here. You need extremely fast image acquisition rates. High frames per second capture a rapidly beating heart cleanly. We also see a rising adoption of cord-free models. Battery-operated units eliminate dangerous tripping hazards instantly. They speed up bedside deployment in the ICU significantly. In emergency rooms, every second counts.
Clinical Specialty | Recommended FOV | Key Software & Features | Ideal Form Factor |
|---|---|---|---|
Orthopedics & Pain | 9-inch | Basic storage, Last Image Hold | Compact or Full-Size |
Vascular & Neurology | 12-inch | Digital Subtraction Angiography | Full-Size or Super C |
Cardiac & ER/ICU | 9-inch to 12-inch | High frame rate, high kW, cord-free | Full-Size (Battery-operated) |
The C-arm gets its name from a simple physical characteristic. However, its true clinical value lies much deeper. It adapts to complex surgical demands effortlessly. Orbital rotation and variable configurations make this adaptability possible every single day.
Selecting the right system requires careful balancing. You must weigh upfront costs against long-term operational benefits. You must choose between traditional II and modern FPD technologies. Physical footprint matters greatly in tight surgical suites. Specialty-specific software needs ultimately drive the final purchasing decision.
We encourage facility directors to audit their highest-volume procedures carefully. Consult with imaging specialists to calculate your true return on investment. Upgrading, retrofitting, or expanding your fleet takes careful, strategic planning. If you need expert guidance on your next procurement cycle, feel free to contact us today.
A: Standard fluoroscopy relies on fixed room setups. Facilities use it for broader diagnostic imaging. A C-arm is a mobile unit specifically designed for real-time intraoperative use. It offers high maneuverability directly at the surgical table. If you want to understand the difference between C-arm and fluoroscopy, look at flexibility. One stays in radiology, while the other moves dynamically through the operating room.
A: A C-arm provides single-plane imaging. It requires physical rotation to change views. A G-arm features a dual-plane design. It uses two X-ray sources and two detectors simultaneously. G-arms provide front and side views without moving the machine. They are highly efficient but remain much more expensive and highly specialized.
A: Yes, it is very worth it for many outpatient centers. Refurbished systems from top-tier brands offer substantial capital savings. Buyers should verify available generator power first. You must ensure ongoing service support is included. You should also consider a digital retrofit. This maximizes the operational lifecycle of a refurbished analog frame.
