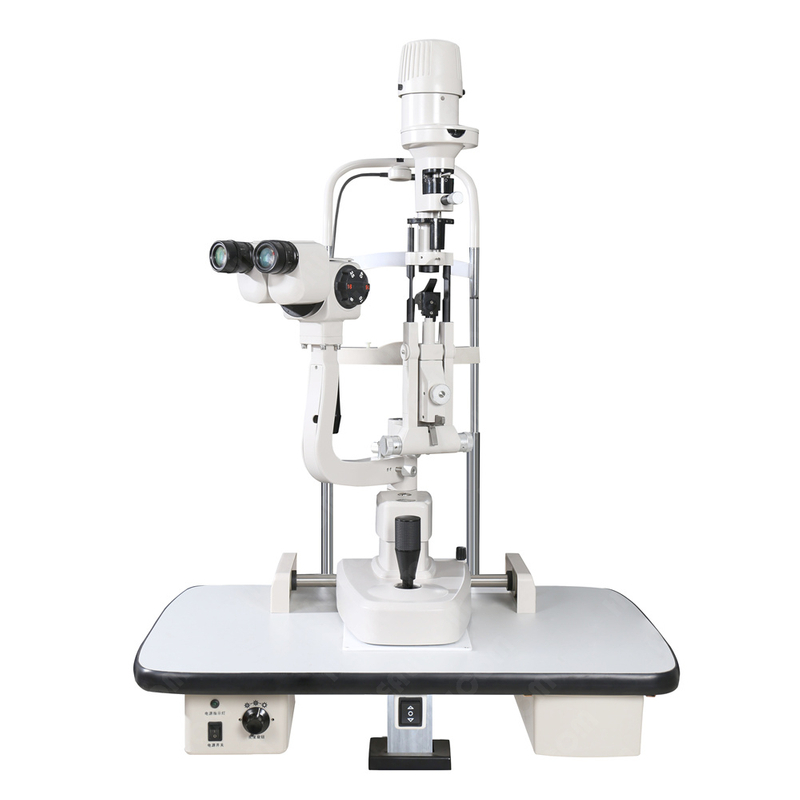

SLM-2ER
Healicom
Product Description
Feature
1. The new design of high-quality micro platforms, operating handy .
2. High eye point, comfort, maxium 14mm spot checks greater extent of disease
3. Five-step drum zoom design,easier to use.6X, 10X, 16X,25.6X, 40X magnification; Corneal endotheial cells can be observed under 40X
4. All optical lenses are made of imported materials, anti-moisture and anti-fog coating treatment in a variety of climatic conditions, which can ensure the long-term good optical effect;
5. Digital upgrade interface, you can upgrade to a digital slit lamp.
Technical Specifications | |
Model | SLM-2 |
Microscope Type | Galileo Parallel |
Magnification Change way | Drum Five Magnification |
Eyepiece | 12.5x |
Total Magnification | 6x 10x 16x 25x 40x |
Diopter Adjustment | -5D ~ +5D |
Illumination | Three Steps (Five Steps and Stepless Optional) |
Slit Width | 0-14mm Continuous |
Slit Height | 1-14mm Continuous |
Slit Angle | 0-180°Adjustable |
Slit Inclination Angle | 5° 10° 15° 20° |
Light Spot Diameter | 0.2mm, 2mm, 3mm, 5mm, 8mm, 10mm, 14mm(optional) |
Filters | Heat Absorption, Grey, Redfree, Cobalt Blue |
Fixation | Red LED |
Electrical | |
Illumination Bulb | German OSRAM Halogen Tungsten Lamp |
Input Voltage | 110V/220V (+/- 10%) |
Input Power | 60VA |
Diffuse Lens | Yes |
Preset Lens | Yes |
Laser Interface | Optional |
Applanation Tonometer Interface | YES |
