APS-6000CER
Healicom
Product Description
System Configuration
▪ Blink dynamic identification device
▪ Automatic ambient light detection device
▪ Integrated vision stimulator
▪ Computer System
| Technical Specification | |
| Stimulus Type | LED |
| Stimulator Screen | Hemispherical bowl, radius 30cm integrated |
| Stimulus Soure | Light emitting diode, wave length 580nm-650nm |
| Stimulus Size | goldmann III |
| Stimulus Intensity | ≤1000asb |
| Stimulus Duration | Adjustable 0.2 to 2 seconds |
| Stimulus color | yellow, red |
| Stimulus step | total 27step 1 |
| Minimum inter-stimulus delay | Adjustable 0.2 to 2 seconds |
| Background illumination | 4asb |
| Lens holder diameter | 35mm ( optional ) |
| Stimulus points | 144(0-60°).72(0-30°).72(60-90°).61(0-10° red). 114(Blind spot) |
| Chin rest moving range | verical 70mm. horizontal 90mm |
| Fixation Methob | Automatic monitoring with two options Available blind spot method, Eye tracking method. In both methods, fixation errors are to be immediately announced by visual and audible warnings. The standard video camera should provide visual of the patient's eye for additional monitoring. |
| Test Range | Default tes(0-60°), Yellow spot test (central 0-10°), Central 0-30° test, Quadrant est, Peripheral test, Peripheral test (60-90°), Blind spot test, Custom test |

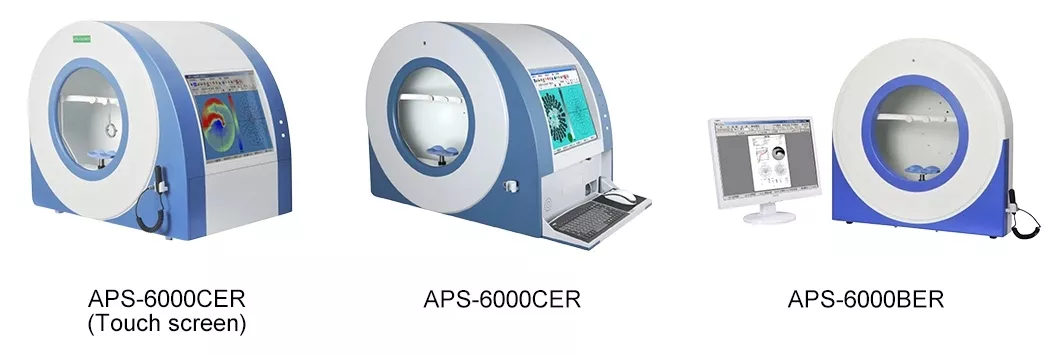

| Stimulator unit dimensions | APS -000BER 67 x 66 x 38cm (HxWxD) APS-6000CER 75 x 60 x 65cm (HxWxD) |
| Stimulator unit weight | 18KG approx (APS-6000BER) 40KG approx (APS-6000CER) |
| Stimulator unit power requirements | 110V220V Ac 50-60Hz |
