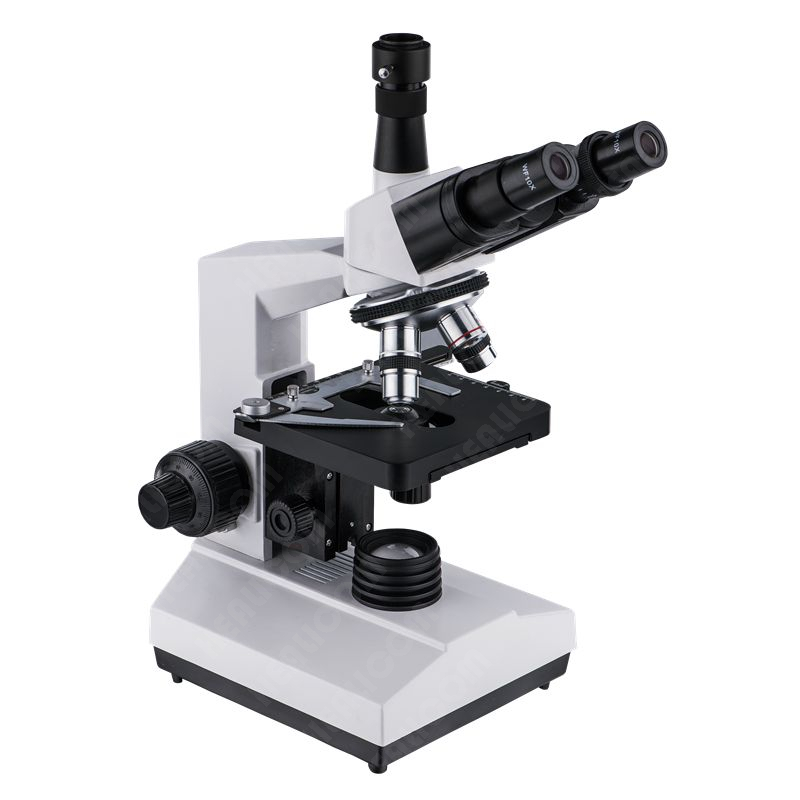

HXSZ-107TN
Healicom
Product Description
Features
1. With wide field eyepieces and achromatic objectives, the field of view is widely and clear
2. Coaxial coarse/fine focus system, with tensional adjustable and up stop
Technical Specifications | |
Achromatic Objectives | 4X,10X, 40X(Sping),100X (Spring, Oil) |
Eyepiece | Wide Field Eyepiece: WF10X (WF16X optional) |
Viewing head | Compensation Free Trinocular Head |
Stage | Double Layer Mechanical Stage Size 140X140mm, Moving Range 75*45mm |
Focusing | Coaxial Coarse and Fine Adjustment, Focusing Range 30mm, Focusing Interval 0.002mm |
Condenser | Abbe NA=1.25 with lris Diaphragm & Filter |
Illumination | Halogen Lamp or LED 3W, 220V/6V20W or 110V/6v20W |
