HBL-88 Ophthalmic Equipment 40X Magnification Five-Step Handheld Slit Lamp

The HBL-88 Medical Optical Ophthalmic Five-step Drum Magnification Portable Slit Lamp is a cutting-edge ophthalmic device. It features a five-step drum magnification system, allowing for precise and adjustable magnification levels to meet various diagnostic needs. Its portability makes it easy to transport, ideal for both clinical settings and mobile medical services. With advanced optical technology, this slit lamp provides clear and detailed views of the eye, enabling accurate diagnosis of eye diseases.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HBL-88

  • Healicom

Product Description

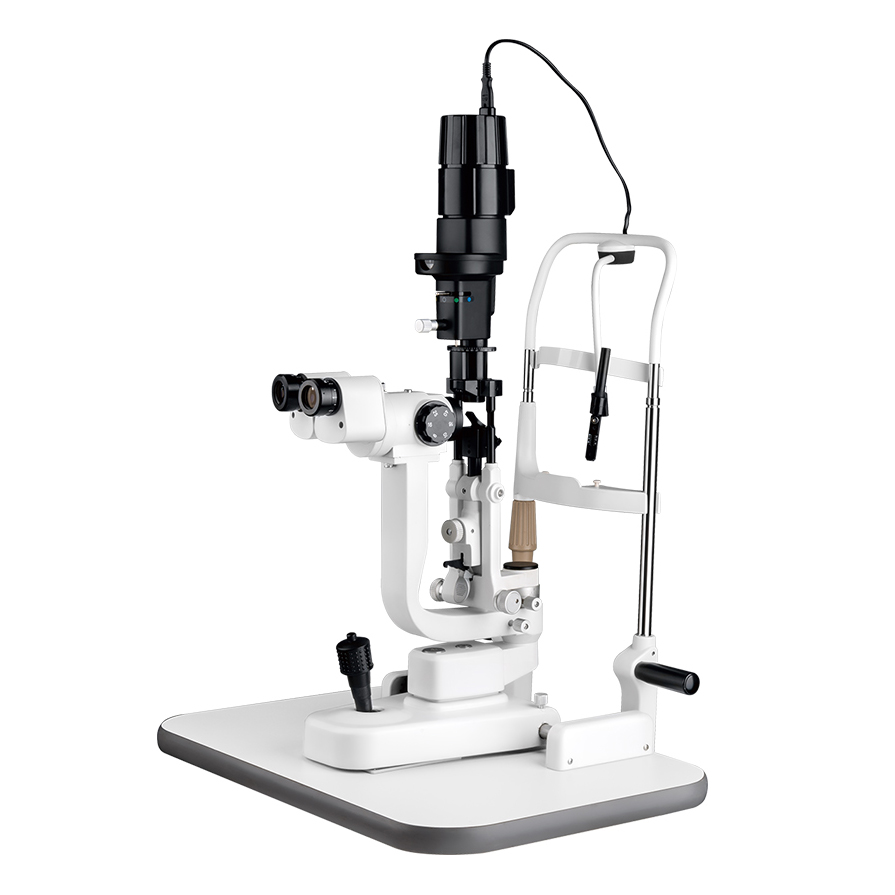

HBL-88 Medical Optical Ophthalmic Five-step Drum Magnification Portable Slit Lamp

HBL-88 - 副本 (2)

Feature:
1.Five-step drum magnification for eyepiece. Sclera vein could be observed under the 40x magnification
2.All the optical lenses are moisture proof mildew proof and anti-reflective treated Large spot diameter,slit length reach to 14mm, more comprehensive view of the eye condition Multi-coated optical glass technology, imaging is clear and bright, the view field is wide Osram light bulbs, small heat, high-brightness, spot uniformity Handrail design, user-friendly and the convenience of patients
3.Oversized joystick space, mobile base does not touch the hand
4.All the joints can be connected by accessories with international standards

Technical Specification
Microscope
Microscope Type
Galilean stereoscopic microscope
Magnification Selection
5 steps by drum rotation
Eyepiece
12.5x
Magnification Ratio(Field of View)
6x(33mm),10x(22.5mm),16x(14mm),25x(8.8mm),40x(5.5mm)
Pupillary Adjustment
50mm ~ 82mm
Diopter adjustment
±7D
Base
Side Shift
110mm
Depth Shift
90mm
Height Shift
30mm
Chin rest
Height Shift
80mm
Fixation Target
Red LED
Illumination system
Slit Width
0 ~ 14mm Continuous(at 14mm, slit becomes a circle)
Slit Height
1 ~ 14mm Continuous
Slit Angle
0° ~ 180° adjustable
Slit Inclination
5°,10°, 15°,20°
Diameter of Light Spot
φ14mm,φ10mm,φ5mm,φ3mm,φ2mm,φ1mm,φ0.2mm and1~14mm continuous
Filter
Heat Absorption, Grey, Red-Free, Cobalt Blue
Illumination Bulb
12v 50w halogen lamp
Power
Input Voltage
110V/220V AC
Frequency
50/60Hz
Power Consumption
68VA
Weight and Size
Gross Weight
18kg
Dimension
690mm (L) x 440mm (W) x 420mm (H)

Company Profile


2025年2月24MIC详情页_01

2025年2月24MIC详情页_02

2025年2月24MIC详情页_03

2025年2月24MIC详情页_04

FAQ


1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.

2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.

3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.

4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.

5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
