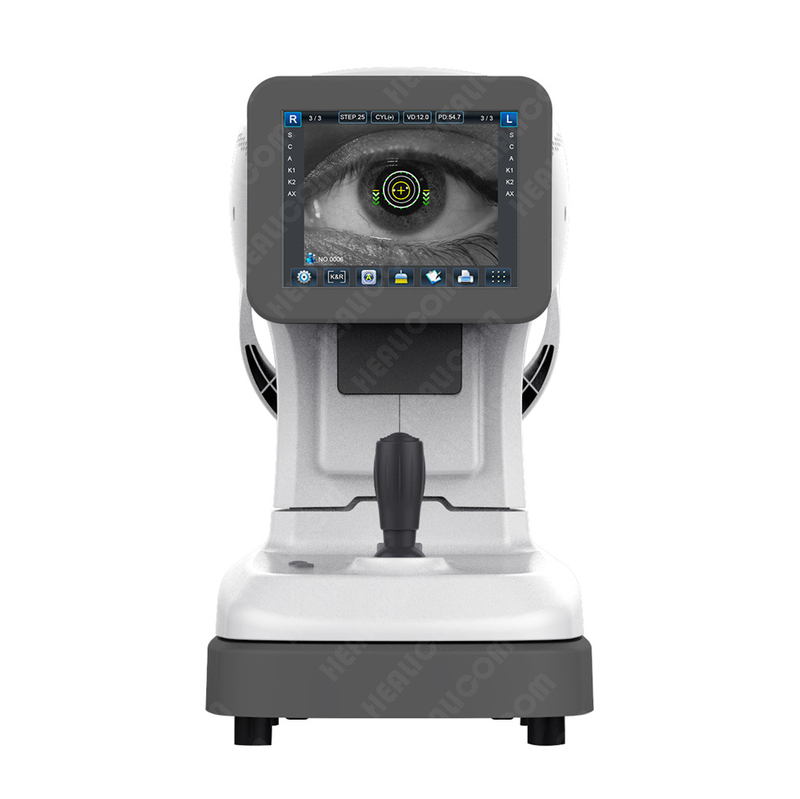

HRK-4000
Healicom
Product Description
▪ One-button operation, precise and fast scanning, precise center positioning
▪ Ultra-wide touch screen, 1:1 size display for intuitive comparison of frames and scanned graphics
▪ Powerful and efficient data processing, scan graphics can be edited, multi-machine interconnection, cost-effective
Technical specification | ||
Range of measurement | Sphere | -20~+20D(VD=12) 0.12D/25D step |
Cylinder | -10~+10D 0.12D/25D step | |
Axis | 0°~180° (1°step) | |
PD | 10-85mm,1mm step | |
VD | 10-85mm,1mm step | |
Min Pupil Size | 2.0mm | |
Keratometry | Corneal apex distance | 0.0, 12.0, 13.75, 15.0 |
Spherical mirror degree | -20.00D ~ + 20.00D (VD = 12mm, 0.01, 0.06, 0.12, 0.25 units) | |
Axis position | 10 ~ 180 ° (1 ° unit) | |
Cornea diopter | 33.00D ~ 67.0D (when the corneal equivalent diopter is 1.3375) | |
Cornea curvature radius | 5.0 ~ 10.0mm (0.01mm accuracy) | |
Measure light energy | <30uw (ensure measurement safety) | |
Others | Stored data | 10 measurements each |
Display | 8-inch TFT touch screen (adjustable viewing angle) | |
Print | 57mm thermal printer | |
Power supply | AC 100 ~ 250V, 50 / 60Hz, wide power supply | |
Dimension | 680mm x (width) 400mm x (height) 640mm | |
Gross weight | ~26KG | |
