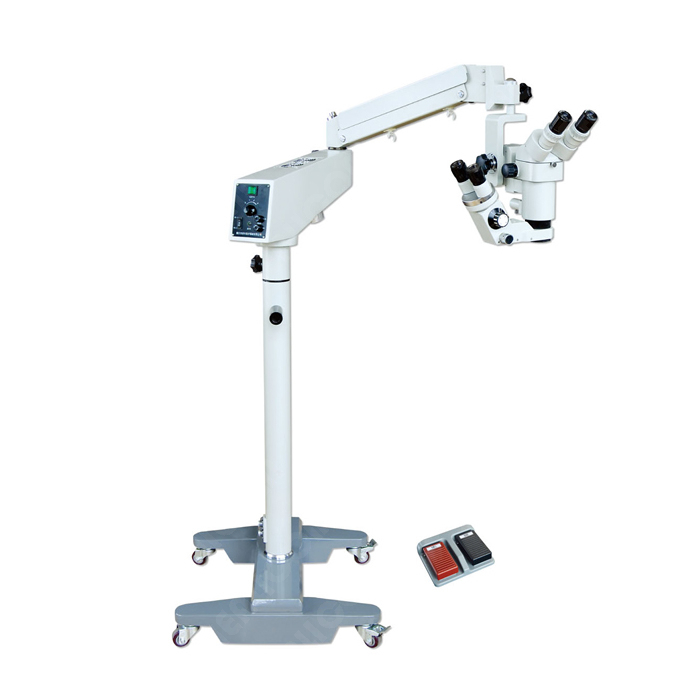

HXT-X-5B
Healicom
Product Description
Characteristics
1. Master Microscope with Model 5X-20X - electrodeless continual zoom having 65mm-width vision, strong three-dimension effect and good depth of field
2. Coaxial illumination equipped with Germany OSRAM bulb and optical fiber made of imported material having high brightness and strong penetration
3. Co-light route minor microscope with Model 5X-20X - electrodeless continual zoom
4. Electric zoom lens having low noise, locating accuracy and good control performance
Technical Specification | |
Master Microscope | Eye Lens: 10X wide-angle, Angle of observation: 45o, pupillary distance 55 - 75 mm (continuous-adjustment) |
Diopter adjustment: ±6o (Binocular) | |
Amplification factor: 5X - 20X electrodeless continual zoom, wide vision: 8mm - 65mm | |
Working distance ≥160mm, micro-focusing 20mm | |
Minor Microscope | Co-light route minor microscope with Model 5X-20X - electrodeless continual zoom |
Seat | Max extending length of cross arm: 1075mm; adjusting range: ±200mm |
Electrical performance | Power-supply AC220V 50Hz |
Double Light | 15V/150W Halogen lamp imported from German |
