HLED-650/650 High Cost Performance Overhead Operating Room LED Shadowless Operation Lamp

The HLED-650/650 LED Surgical Light features automatic shadow management technology, compensating for up to 80% obstructions like the surgeon's head or instruments, ensuring a clear and homogeneous light field for surgical safety. Its eye-friendly lighting system with smooth brightness adjustments reduces eye strain, allowing surgeons to focus fully on their work. The light can be flexibly combined with various camera systems, monitoring equipment, and backup UPS systems. Its laminar flow-friendly design ensures optimal air flow from the ceiling to the sterile field, making it an intelligent and versatile solution for any operating theater.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HLED-650/650

  • Healicom

Product Description

HLED-650/650 Operating Room LED Shadowless Operation Lamp

1


2

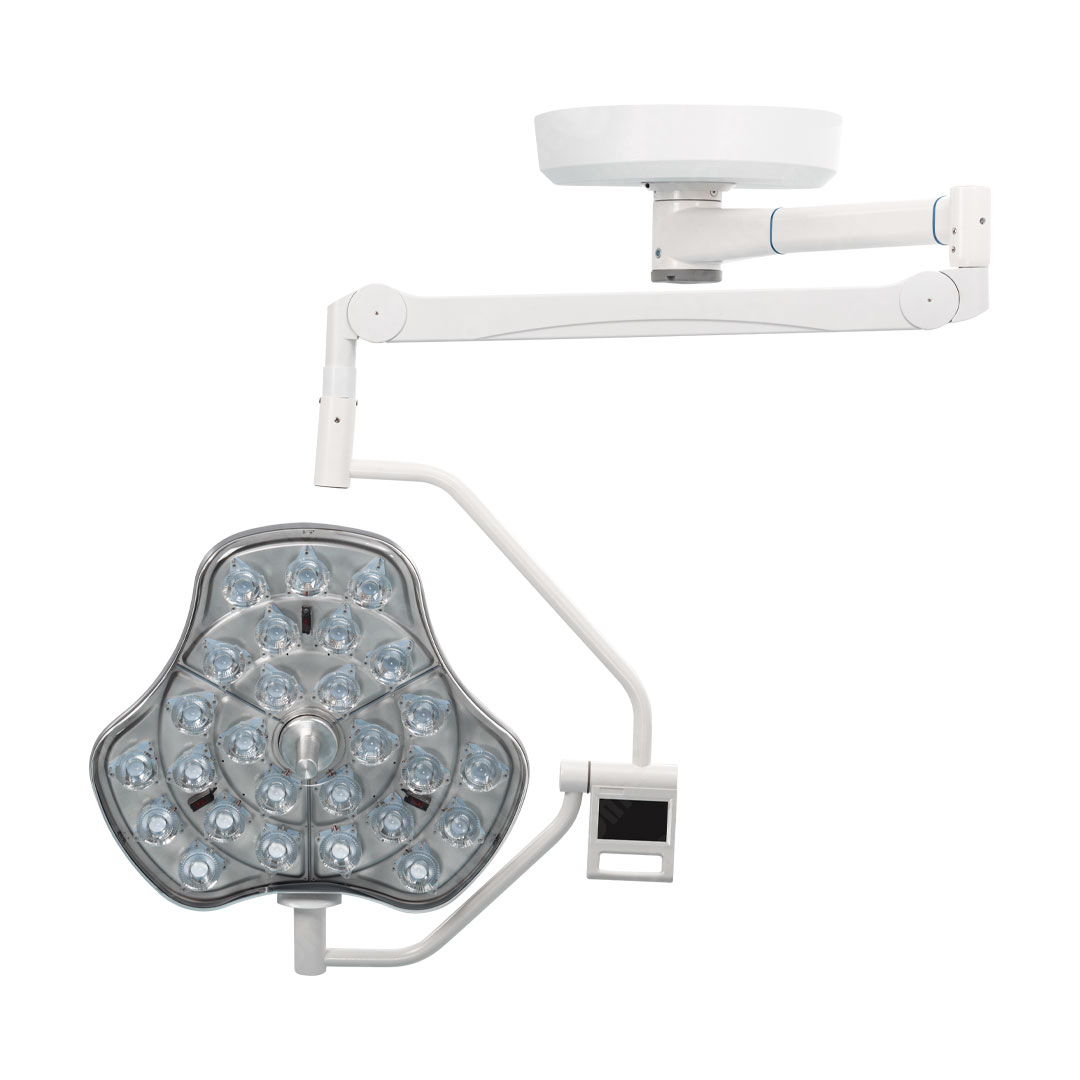

LED Surgical Light

HLED-650/650 series adopt innovative automatic shadow management technology to create a clear and homogeneous light field, even when it's obstructed by up to 80%, such as those shadow caused by the surgeon's head or instrument, are compensated for automatically, ensuring the safety of the surgery. Its unique lighting system offers eye-friendly light and smooth brightness adjustments to effectively relieve the surgeons ' eye strain. The surgeons are able to concentrate fully on their work, to the full benefit of the patient. It can flexilble combined with different kinds of camera systems and monitoring equipment, backup UPs system, etc. With a laminar flow friendly light body, ensure air flow from ceiling to sterile field. lt is the intelligent solution for any operating theatre.

2


Technical Parameter
Lamp head 650
Intensity@ 1m (Lux), 10 grades continues adjusted from
50,000-160,000Lux
Color temperature(k), 5 grades selection from
3,500-5,500k
Color rendering index
Ra295%,R9290%
Light field size(mm)
130-300
Depth ofillumination 20%(L1+L2)(mm)
1300


Shadow deduction %
One mask
90
Two masks
80
One mask one tube
78
Two marks one tube
76
Endoscopy mode
Yes
Qty of LED
27
Lifetime of LED Light source (hour)
250,000
LED brand
Imported Osram
Diameter of light head (mm)
650
Power consumption(Watt)
250
Working distance (mm)
800-1200
Total irradiance(w/ ㎡)
200-600
Sterilize handle
Yes
Lamp cap material
Die cast aluminum
Supply voltage
110-230Vac/50-60Hz


Safe& Shadow freeillumination

Uniform, homogeneous lighting for surface and deep cavity procedures even when the light is intercepted 80% by the surgeons' head orinstruments.Optimum illumination of the wound area with the unique multi-lens matrix with a light intensity up to 160,000lx Adjustable color temperature helping doctors accurately differentiate various tissue types during surgery,improving accuracy.


User Comfortable

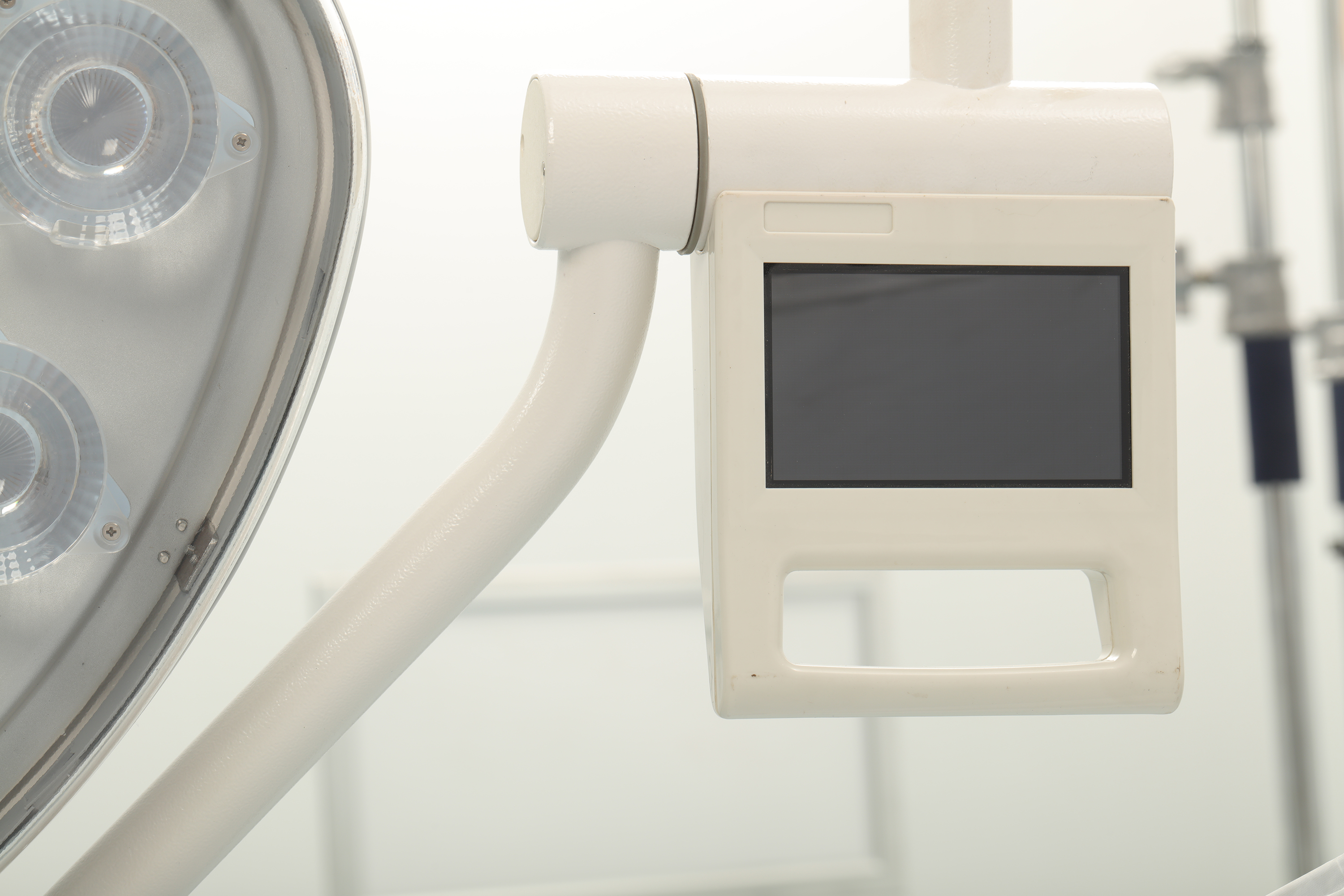

LCD touch screen control panel, quick switchover between the different illumination modes, color temperature modes, increase the doctors and nurses efficiency.Electrical focusing for changing the lighting field diameter One key to endoscopy model, background illumination for minimally invasive interven.tions.Synchronized control or separately control of light domes.Wall mount control panel is available.(optional)


Cost efficiency

Each LED can be individually replaced- combining cost efficiency and optimal performance More than 50,000 hours effective life-time of imported Osram LED, extremely reduce the hospital's maintenance cost.

图层 5

100 (1)

100 (2)

100 (5)


Company Profile


2025年2月24MIC详情页_01

2025年2月24MIC详情页_02

2025年2月24MIC详情页_03

2025年2月24MIC详情页_04

FAQ


1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.

2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.

3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.

4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.

5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
