HNLED-5A LED Stand Exam Mobile Surgical Light Operation Examination Lamp

The HNLED-5A Hospital Emergency Small Surgical Portable Stand LED Operating Examination Lamp is a highly efficient and versatile medical lighting solution. Designed for portability and ease of use, it provides exceptional illumination with adjustable brightness to meet various surgical and examination needs. Its energy-saving LED technology ensures bright, shadow-free light with accurate color rendering, crucial for precise medical procedures. The flexible stand allows for optimal positioning, making it ideal for emergency rooms, operating theaters, and clinical examinations. Durable and reliable, the HNLED-5A enhances procedural accuracy and patient care in any medical setting.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HNLED-5A

  • Healicom

Product Description

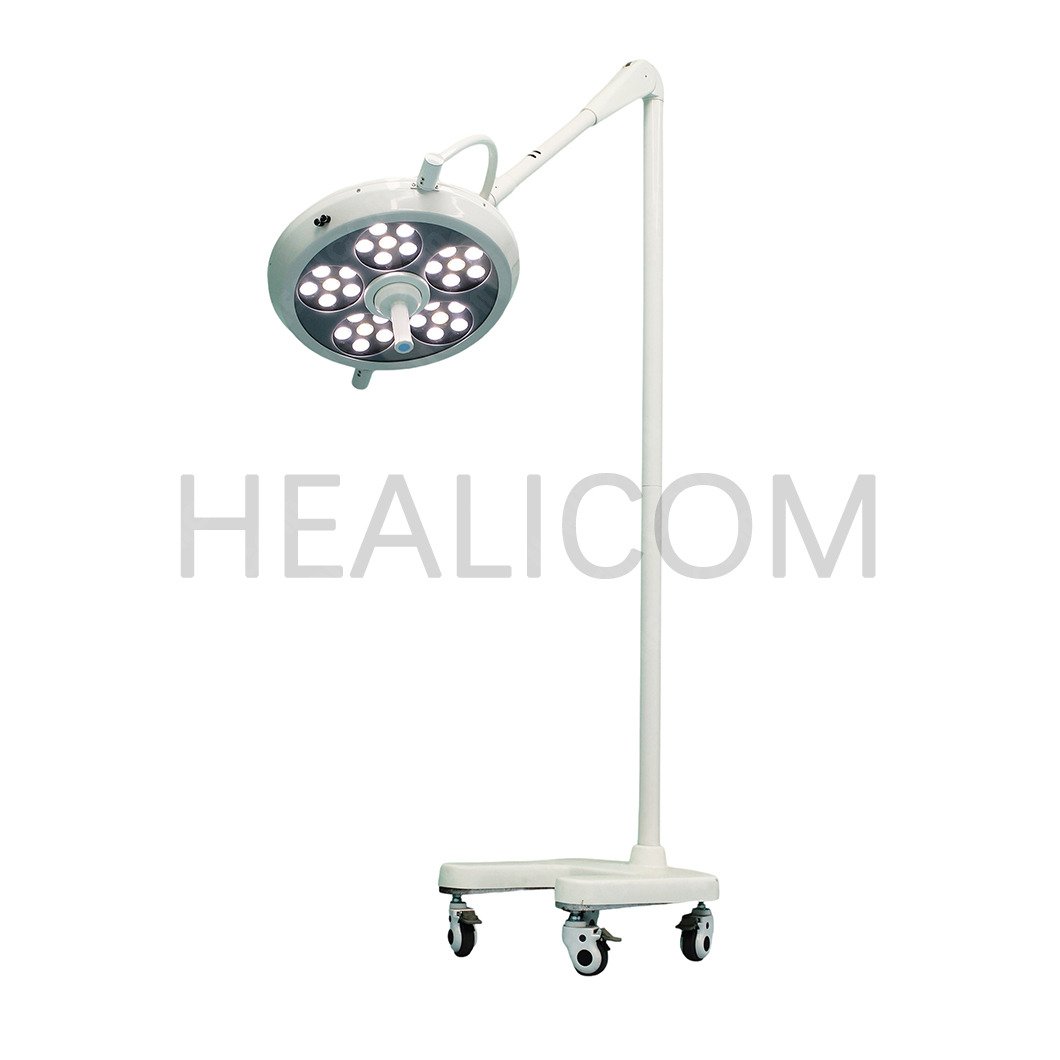

HNLED-5A Hospital Emergency Small Surgical Portable Stand LED Operating Examination Lamp1H


1

Technical parameters and performance description of LED lighting:

1.Intuitive and simple design: it is extremely convenient to install and maintain. The lamp head is controlled by PLC system.
2. LED cold light source: superimposed optical design, each LED is equipped with an independent lens reflection surface system, bringing a uniform illumination light column of more than 1000mm, the highest central illumination up to 60000Lux, providing surgeons with a shadowless, sharp contrast of the surgical field.
3. Illumination color temperature adjustment: Technical requirements: 3700K-5000K
4. Adjustable light spot size: The lamp head can be manually adjusted, and the focusing disinfection handle can adjust the size of the light spot illuminated by the shadowless lamp as needed
5. LED light source: namely LED (light emitting diode), using imported Osram LED light beads.
6. Average service life: LED lamp is better than traditional halogen lamp or gas discharge lamp in that the service life of LED is longer.
Traditional luminous models typically need to be replaced after about 500 hours of use, while LED lights have an average life of about 50,000 hours.
7. Quick disassembly handle: The lamp head can be adjusted in Angle and distance through the integrated handle and convenient disassembly handle, which is easy to operate. The disinfection handle can be sterilized at high temperature (≥ 160ºC).
8. Low failure rate: By using the original imported Osram lamp beads, the lamp head has a very low failure rate, and the failure of a single LED lamp bead will not damage the normal use of the lamp head.
9. The light transmittance plate is made of high strength PMMA material to ensure the safety of doctors and patients.

10. Technical parameters:

Parameter Configure
Light source assembly LED coldlight source
Number of lamp beads 30
Spectral range 5000-60000LUX
Regulation mode Zero adjustment
Color temperature range 3700K-5000K
Color rendering index 85<=Ra<=100
spot diameter Manual adjustment
Head temperature rise of the operator ≤1ºC
Temperature rise in the surgical field ≤2ºC
LED life length ≥50,000 hours
Input power supply AC220V/50Hz
Interiorinput power <=50W
Material quality Aluminum spray plastic + acrylic
