HDZF-700/700
Product Description
Main Use

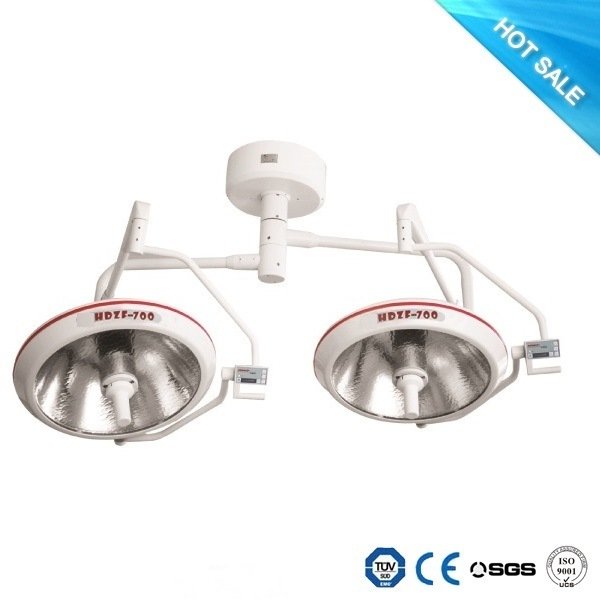

Operation shadowless lamp HDZF-700/700 series is widely used in various lighting situations, meeting all different needs of lighting during operation.
Structure
HDZF series is fully enclosed streamlined dual-lamp body structure, fully meeting the high standards of disinfection and laminar flow in today's operating room.
Using CAD / CAM technology to create overall reflection optical system, Adopting color temperature compensation technology to enhance color reproduction, more suitable for brain surgery, thoracic surgery and other complex large lighting operations.
The type is movable with stand.
It is mounted type and has monitor, the product can be based on user's demand matching video surveillance system for image
Specifications
| Characteristics | ||
| Content | Reflector diameter 700mm | Reflector diameter 500mm |
| Center Light intensity | 120klx~140klx | 80klx~120klx |
| Spot diameter(d10) | ≥180mm | ≥160mm |
| Column depth | ≥700mm | ≥600mm |
| Color temperature | 4500±500K | |
| Increasing Temperature | ≤10ºC | |
| Color rendering Index (CRI) | ≥92 | |
| Switch between main and assistant bulb | Automatic | |
| Illumination adjustment | 8-level sequentially | |
| Bulb watt | 150W | |
| Total radiated energy Ee where the illuminance reaches max level | ≤500w/m2 | |
| Mechanical characteristics | ||
| Spring arm around fixed holder | ≥360° | |
| Bracket around spring arm | ≥360° | |
| rotation of horizontal bracket | clockwise ≥140°,anti-clockwise ≥140° | |
| Lamp head around horizontal bracket | clockwise ≥100°,anti-clockwise≥100° | |
| Up and down of balancing arm | up≥40° down ≥40° | |
FAQ
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one and half year warrantee period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
