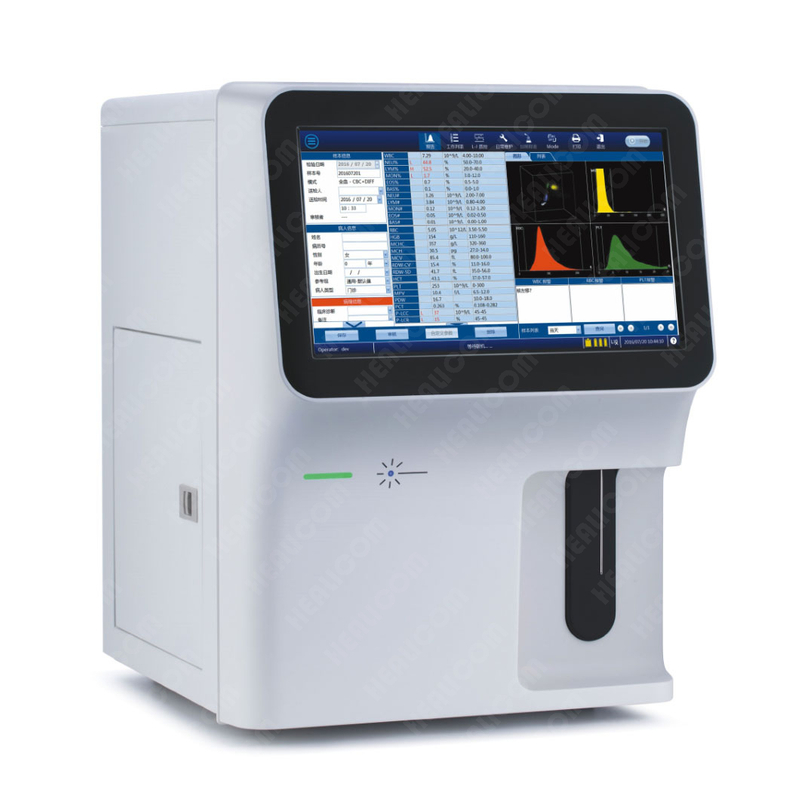

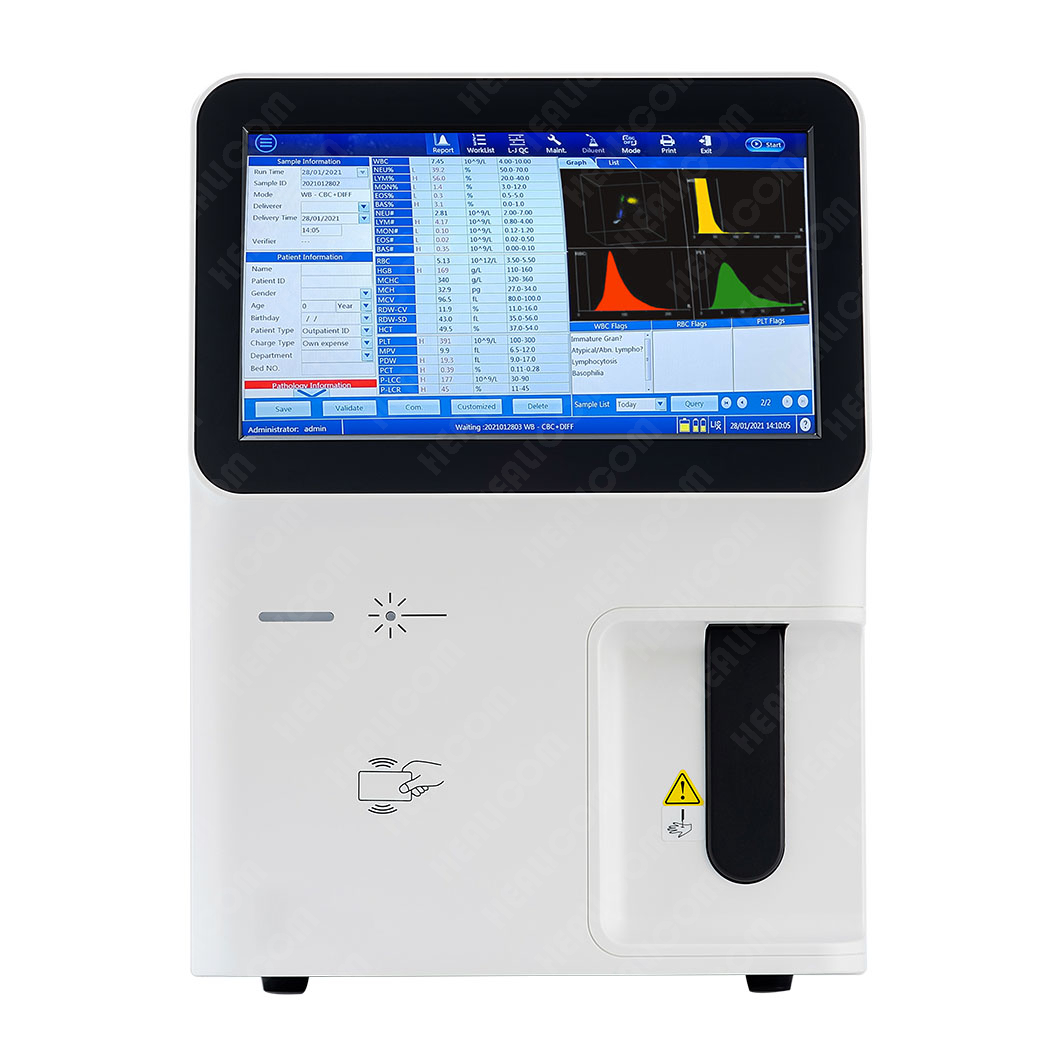

HMA-7518
Healicom
Product Description
Feature:
• 5-part blood cell counter
• 25 parameters +3 histogram+1 3D scattergram
• 2 test mode
• 60 samples/hour
• 14'' large touch screen
• External USB printer
• Support LIS system
• Stable, durable and economical
Performance
High Stability & Accuracy
• Advanced Sweep-Flow technology guarantees low PLT samples counted precisely.
• Combined with optical and inpedance method to make the BASO measurement more reliabce and stable
• Creative SMART-FLOW fluidic technology to makes SMART-II with good reliability and free of maintenance.
User-friendly System
• 14 inch touch screen with high resolution and sensitivity, can be operated by wearing gloves
• ONE touch to start the test,
• ONE click to remove error,
• ONE screen for most of the daily operation Intelligent turn off power switch.
Cost-effective and Attractive Design
• Low running cost, only three reagents needed for the test
• Low reagent consumption for single test • Low volume sample consumption CBC+DIFF mode:≤20ul, CBC mode:≤10ul, ideal choice for pediatrics and geriatrics
Technical Specifications | |
Principles | • Tri-angle Laser scatter • 3D Scattergram analysis • Flow Cytometry method • Cyanide free reagent for HGB test • Impedance method for RBC and PLT counting |
Parameters | • 25 Reportable parameters WBC, RBC HGB, HCT, MCV MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P_LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# • 1 3D Scattergram • 3 Histograms(WBC/BASO,RBC, PLT) • 4 Research parameter: ALY%, ALY#, IG%, IG# |
Test Mode | • CBC mode, CBC+DIFF mode • Venous whole blood, Capillary whole blood and Prediluted |
Throughput | 60 samples per hour |
Sample Volume | CBC+DIFF mode:≤20ul CBC mode:≤10ul |
Display | 14 inch touch screen, resolution 1366*768 |
Printout | Support various external USB printers, printout formats user definable |
Communication | Bi-direction LIS, support HL7 protocol Internal RFID reader |

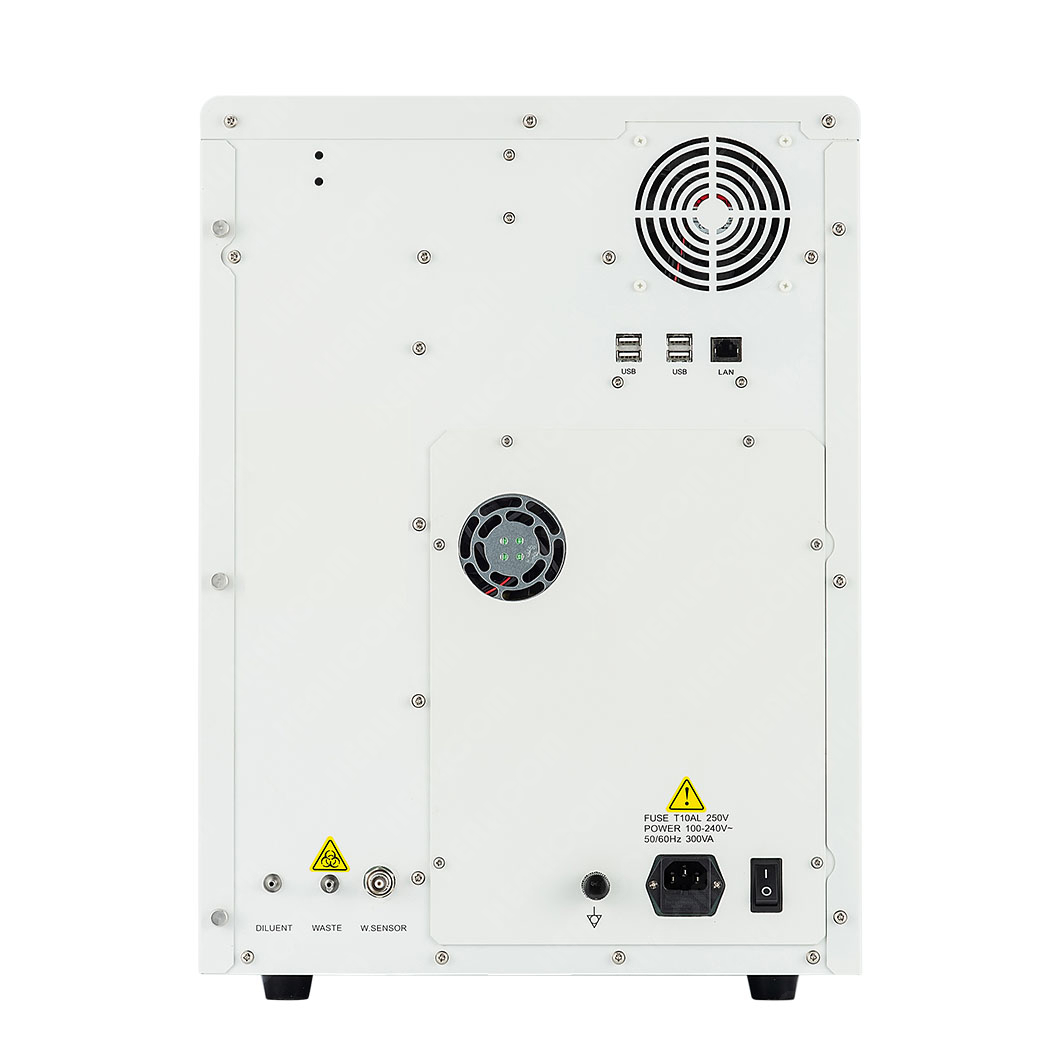

Interface | 1 LAN port, 4 USB ports |
Storage | Up to 10.0000 results (including histogram, scarttergram, patient information) |
Working Conditions | Temperature:10-30C Humidity: 20% - 85% Air pressure: 70~106kPa Working latitude:≤3500m Power supply: AC100-240V, 50/60Hz |
Dimension | 480x375x517mm(L*W*H) |
Weight | 36Kg(net) |
