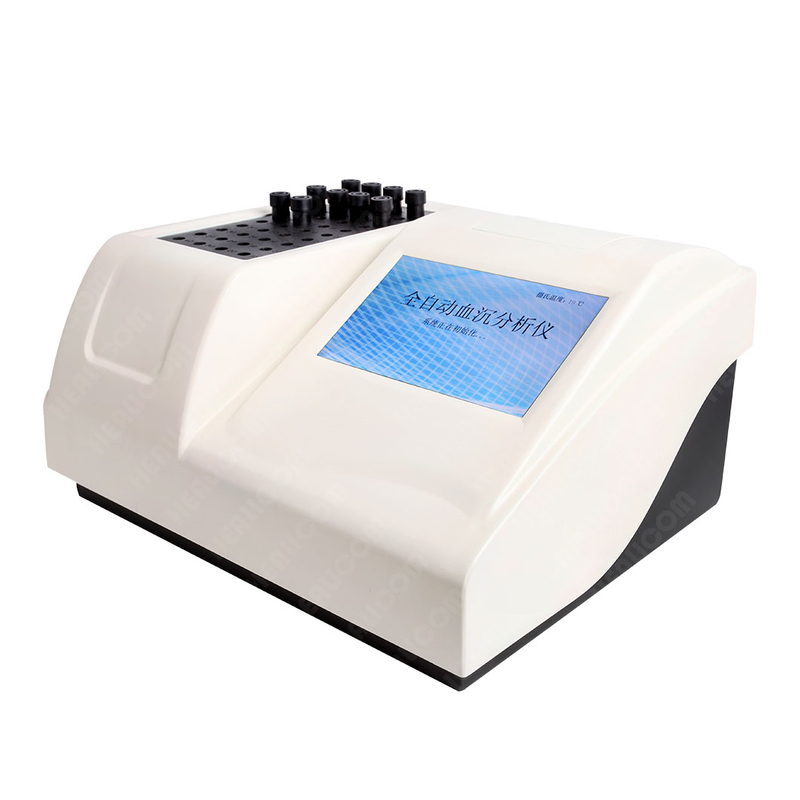

EA-200
Healicom
Product Description
Feature:
• Large color display, touch screen
• 40 channels, up to 80T/H
• Two working method: 30 mins or 60 mins
• ESR curve display and print out
• Barcode reader optional
• Can connect LIS
Technical Specifications | |
Field of application | Erythrocyte sedimentation rate analysis |
Measuring principle | Infrared sensor |
Analysis result | Westergren ESR value (mm/hr) |
Throughput | Up to 80 samples per hour |
Reading channels | 40 |
Loading capacity | 40 sample at same time |
Loading pattern | Random |
Measuring time | 30 minutes or 60 minutes selectable |
Sample interval | 3 minutes |
Measurement range | (1- 1 40)mm/h |
Temperature compensation | Refer to 18°C automatically (selectable) |
Reading resolution | ±0.1mm |
Result resolution | Result resolution |
Blood level range | 50mm~ 64mm |
Display | Color LCD screen |
Input | Touch screen |
Interface | RS -232 serial port |
Print | Internal thermal recorder |
Storage | 4,000 results |
Power supply | AC100- 240V, 50- 60Hz, 50W |
Operation conditions | Temperature 5 ~40℃, Humidity ≤80 % |
Dimension | 365mm x 300mmx 180mm(L * W * H) |
Net weight | 11Kg |
