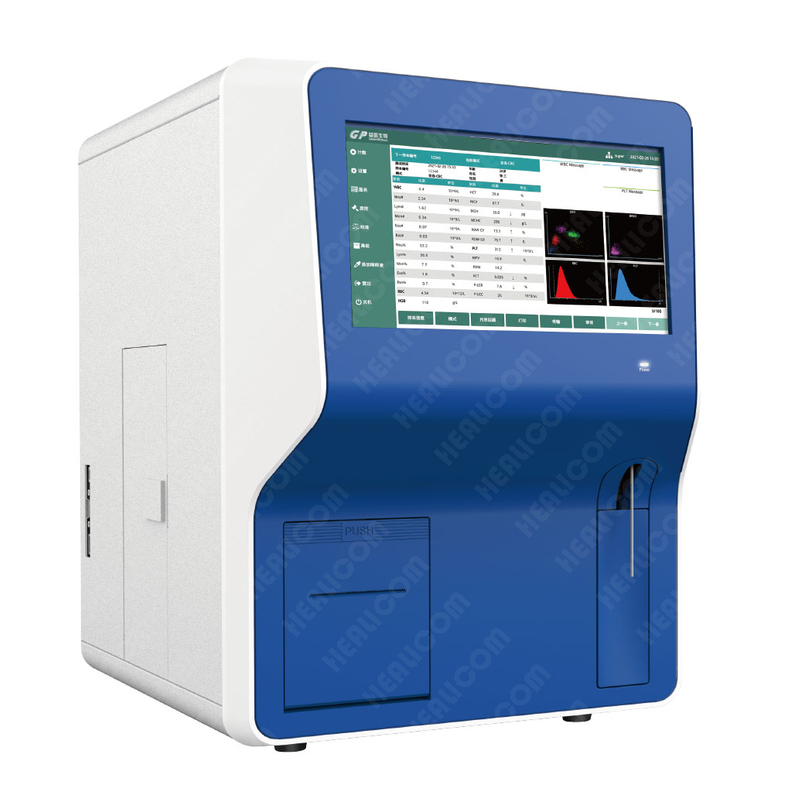

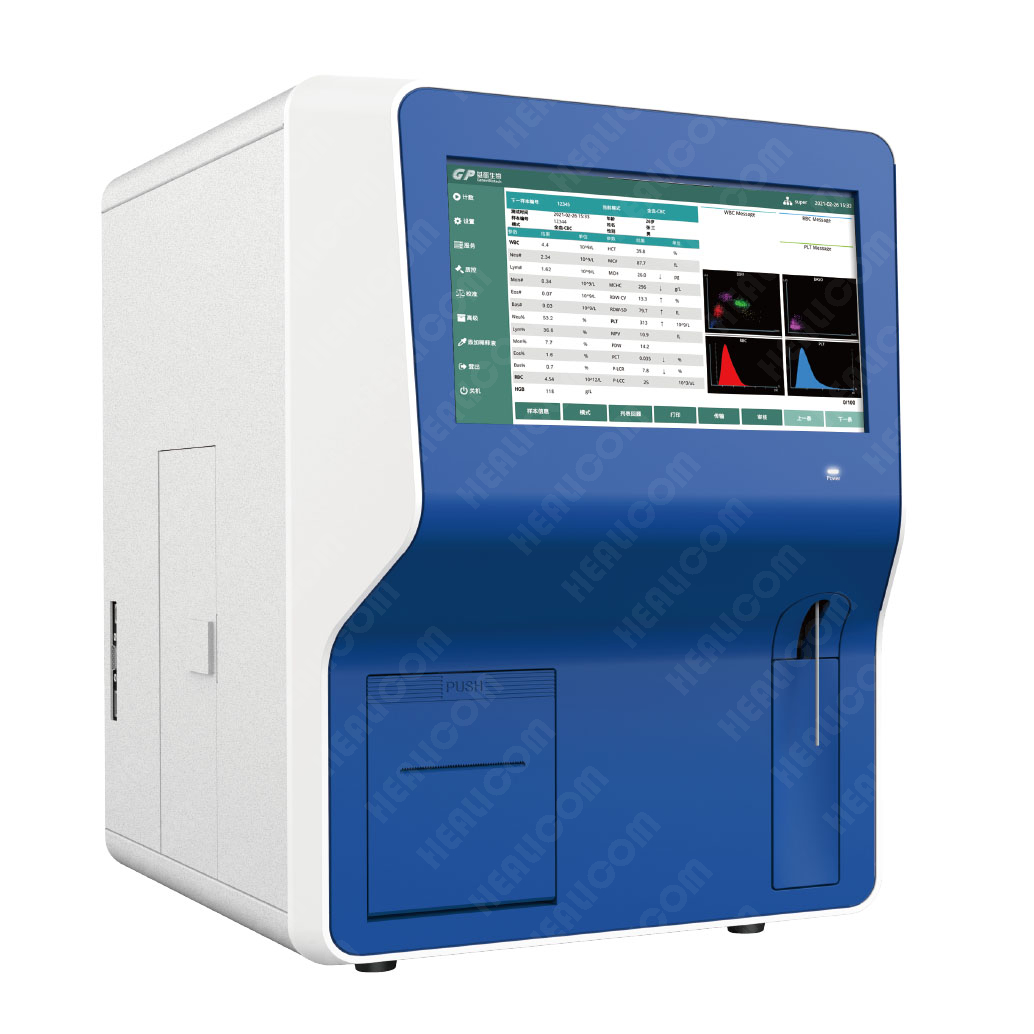

HMA-5000
Healicom
Product Description
More Reliable
• Multi-segment counting method, high anti-interference.
• Automatic maintenance and one-click trouble shooting.
• Automatic cleaning & maintenance of the liquid system at regular intervals.
• Intelligent anti-clogging, burning, back flushing and soaking.
• More durable columnar Pt electrode.
More Convenient
• Up to 60 samples/hour.
• Cost effective, less sample volume, only 15 μL sample for each test.
• No external computer required, automatic result print with in-built printer.
• Large touch screen, high-definition color monitor, supporting operation with rubber gloves.
• Patented reagent volume detection, ZERO reagent residue.
Laser Scattering Method
Blood cell was irradiated by laser one by one when passing through the detection area and 1100 the information of cell size & intemal composition was obtained by measuring the scattered light. Cells were classified according to each information.
More Accurate
• Digital filtering, coincidence correction in blood cell counting.
• Intelligent laser scattering clasification.
• The smallest gem hole in the industry with high sensitivity.
• Curve ftting, floating threshold technology.
• Optical method testing Basophil.
| Technical specifications | |

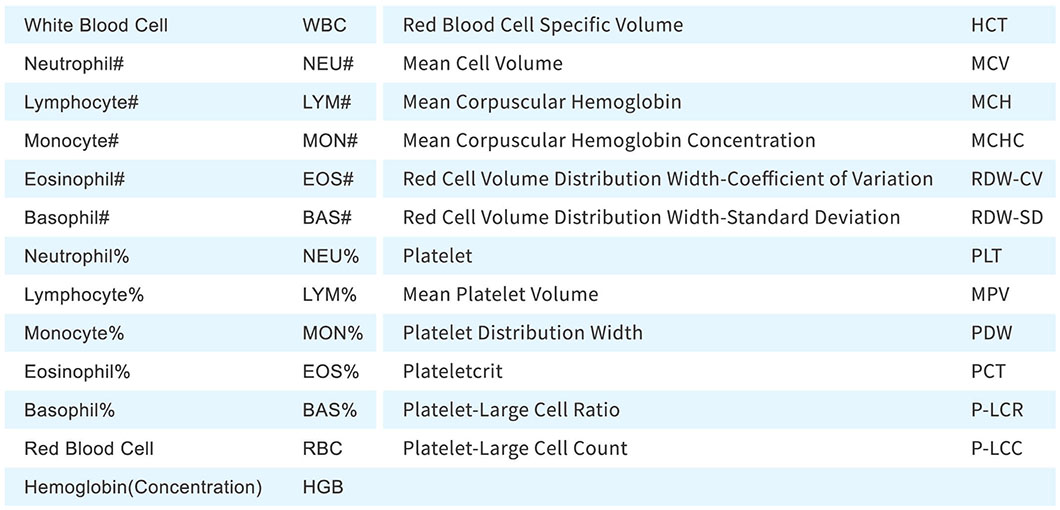

| Parameters | 5-part WBC Differential 25 Reportable Parameters 2 Histograms 2 Scatter Grams Abnormal Sample Alarm |
| Display | 10.4 Inch Resistive Screen |
| Application | Hospital, Clinic, Laboratory |
| Reagent | 1 Diluent and 2 Lyse |
| Sample Mode | Whole Blood (Venous/Capillary), Pre-dilution |
| Data Storage | 10000 |
| Dimension | 328mm*425mm*446mm (L*W*H) |
| Weight | 21 KG |
| Working Environment | 18~30℃ ≤80% Relative Humidity 75 kPa~106 kPa |
