HMA-3000
Healicom
Product Description
Features
• Double-channel test, up to 60 samples/hour.
• Automatic cleaning & maintenance of the liquid system at regular intervals.

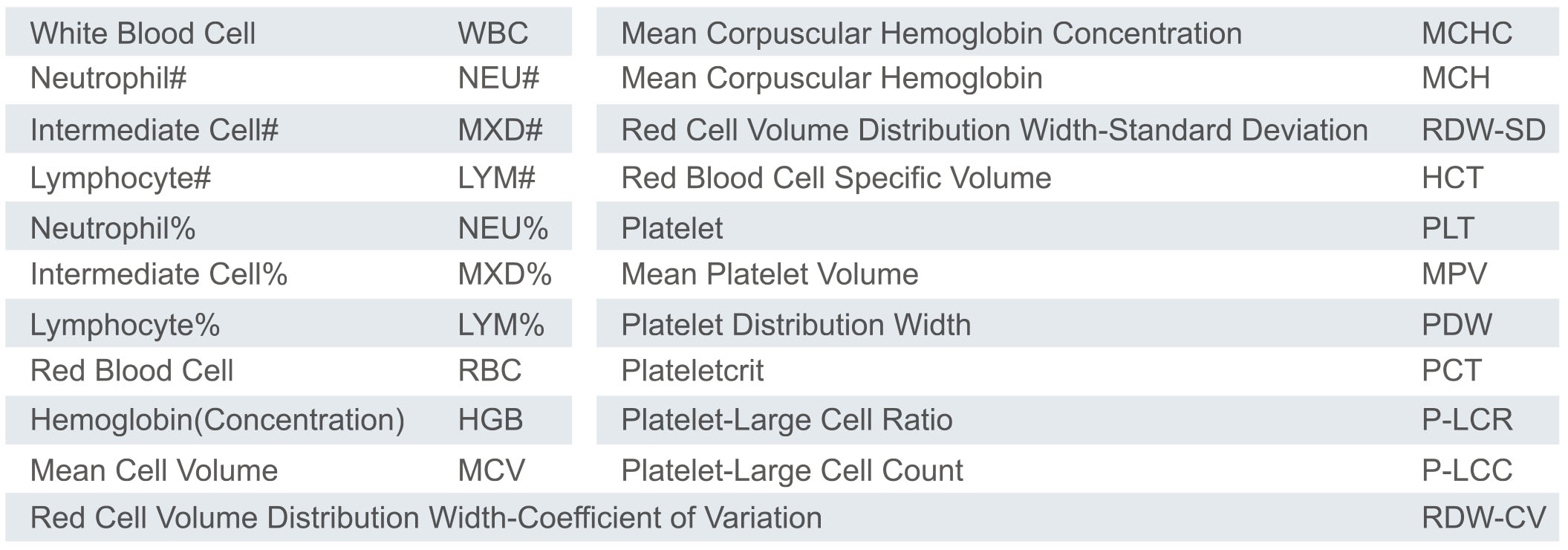

• Report gives 3 histograms, 21 test parameters and abnormal sample alarm.
• Large LCD touch screen, high-definition color monitor, no need external computer, easy and convenient operation.
• In-built printer, automatically print test result.

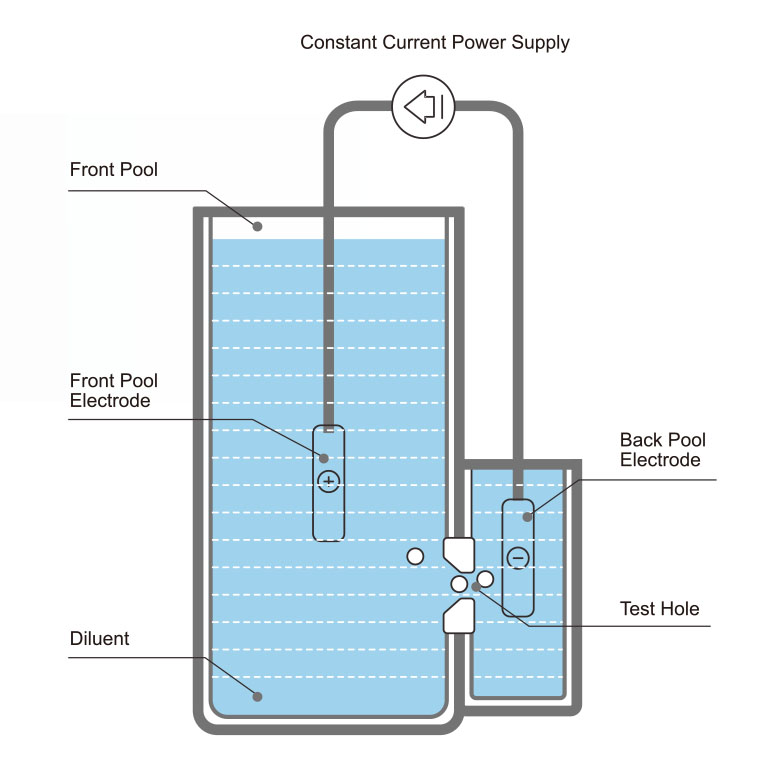

Classic Electrical Impedance Method

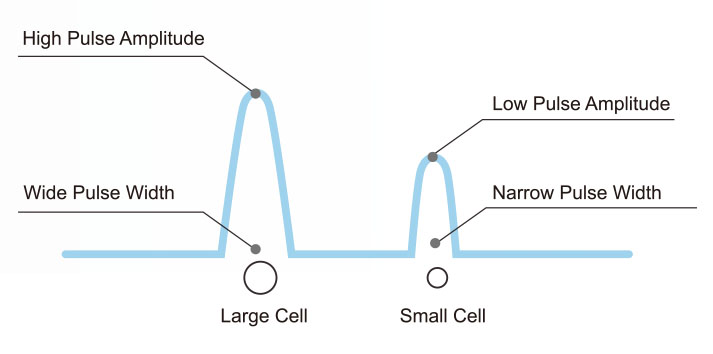

Loading a constant current power supply at both ends of the small hole, so when blood cell passes through the hole, a voltage pulse will appear at both ends of the hole. The pulse height is proportional to the cell size, and the number of pulses equals to the number of cells passing through. Accordingly, blood cells are counted and classified.
Mature Photoelectric Colorimetry
520 nm green light and high-sensitivity photodiode.
| Technical Specifications | |
| Parameters | Abnormal Sample Alarm 3-part WBC Differential 21 Reportable Parameters 3 Histograms Abnormal Sample Alarm |
| Data Storage | 10000 |
| Display | 10.4 Inch Resistive Screen |
| Application | Hospital, Clinic, Laboratory |
| Reagent Type | Two Reagents: 1 Diluent and 1 Lyse |
| Sample Mode | Whole Blood (Venous/Capillary), Pre-dilution |
| Dimension | 328mm*425mm*446mm (L*W*H) |
| Weight | 16 KG |
| Working Environment | 18~30℃ ≤80% Relative Humidity 75 kPa~106 kPa |
