HMA-7318
Healicom
Product Description

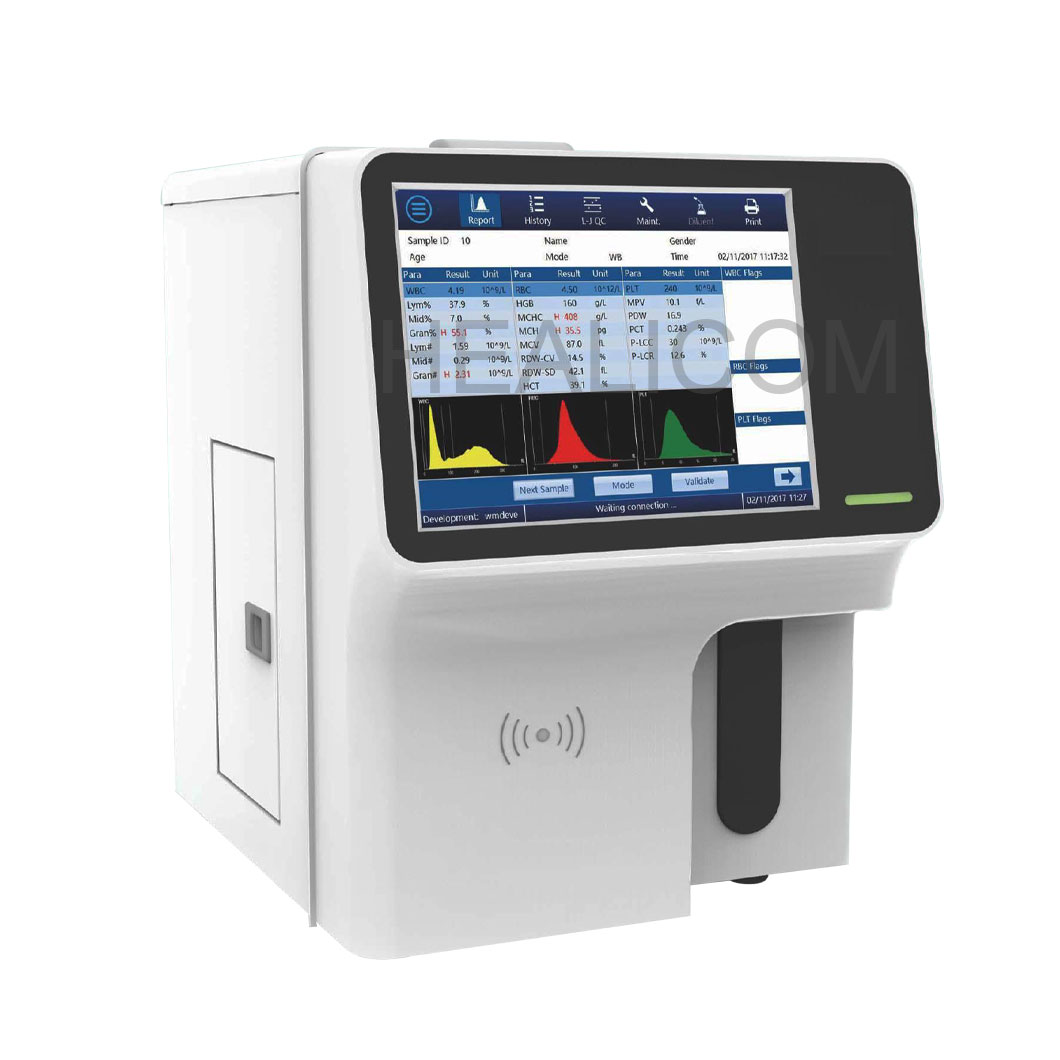

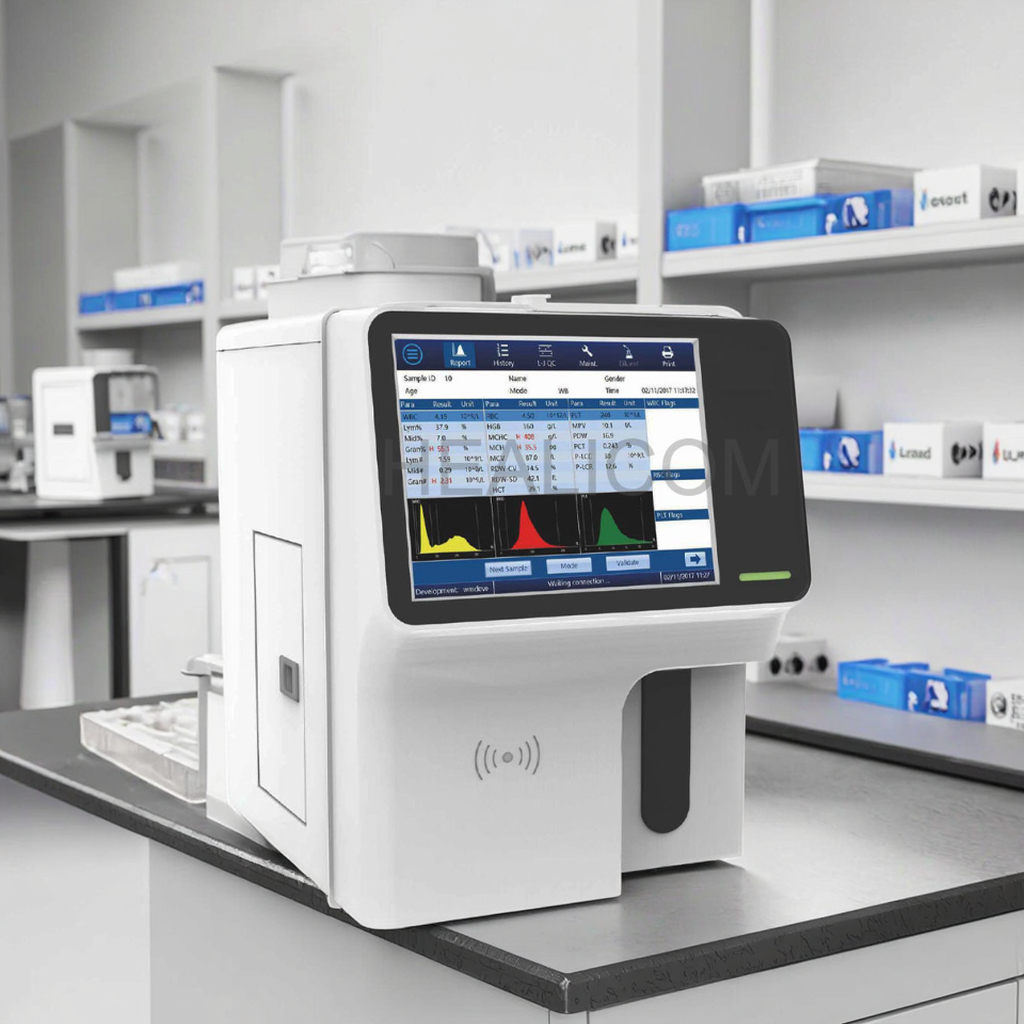

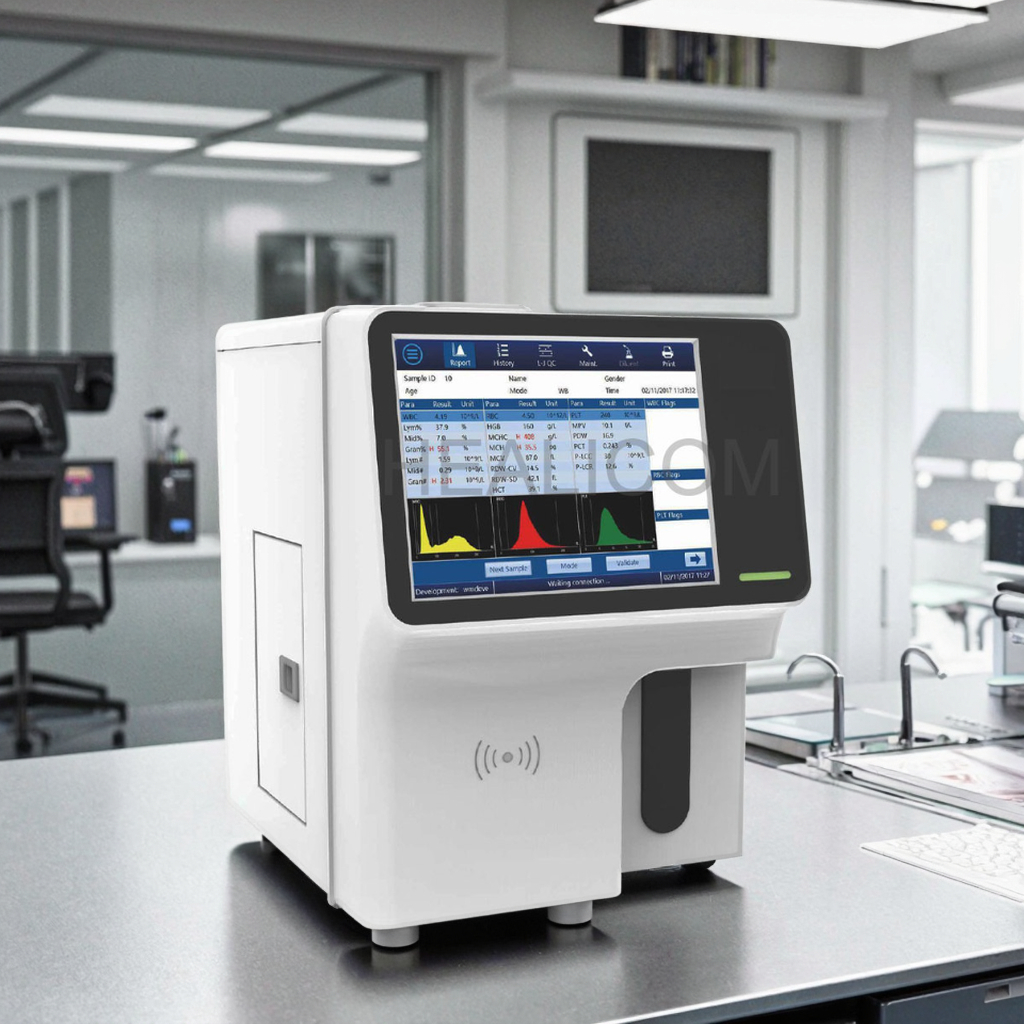

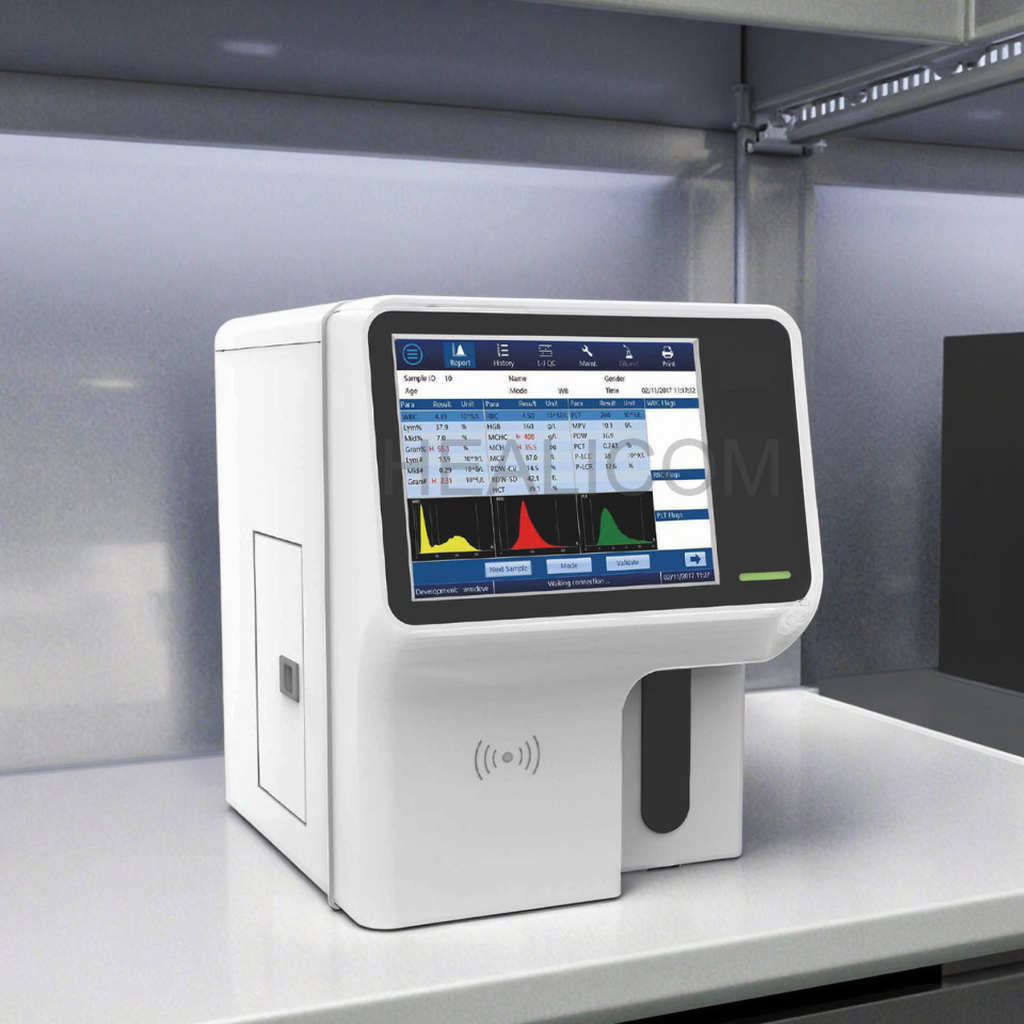

HMA-7318 Clinical 10.4 inch LCD 3 part Blood Hematology Analyzer
Features
Accurate measurement for low value PLT
Advanced Sweep-Flow technology guarantees low PLT samples counted precisely
Low running cost
Only two routine reagents,low reagent consumption for single test
10.4 inch LCD
Color LCD with touchscreen, no external PC needed
Easy to use
One touch to start testing.one click to remove error,friendly operation menus
| Technical Specification | ||||
| Principles | Impedance method | |||
| Cyanide free colorimetric method | ||||
| Parameters | 21 Reportable parameters: WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%, RBC,HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR,P-LCC | |||
| 3 Histograms (WBC, RBC, PLT) | ||||
| Test Mode | Venous whole blood, Capillary whole blood and Prediluted | |||
| Throughput | 60 tests/hour | |||
| Performance | Parameter | Linearity Range | Carry Over | CV |
| WBC | 0-300x10°/L | ≤0.5% | ≤2.0% | |
| RBC | 0-8x10/L | ≤0.5% | ≤1.5% | |
| HGB | 0-250g/L | ≤0.5% | ≤1.5% | |
| PLT | 0-3000x10/L | ≤1.0% | ≤4.0% | |
| Sample Volume | ≤10uI | |||
| Data Memory | Up to 100,000 results (including histograms and patient information) | |||
| Display | 10.4 inch touch screen | |||
| Printout | Built-in thermal printer or External printer | |||
| Interface | 4 USB, 1 LAN, 1 RS-232 | |||
| Support LIS connection | ||||
| RF card for reagent closing system(optional) | ||||
| Size/eight | L*W*H =411*315*416(mm) | |||
| Weight: 26kg | ||||
| Working Environment | Power: a.c.100-240V 50/60Hz | |||
| Temperature: 10-30°C | ||||
| Humidity: 20-85% | ||||
| Air pressure: 70-106KPa | ||||
| Working Latitude: ≤3500m | ||||
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
