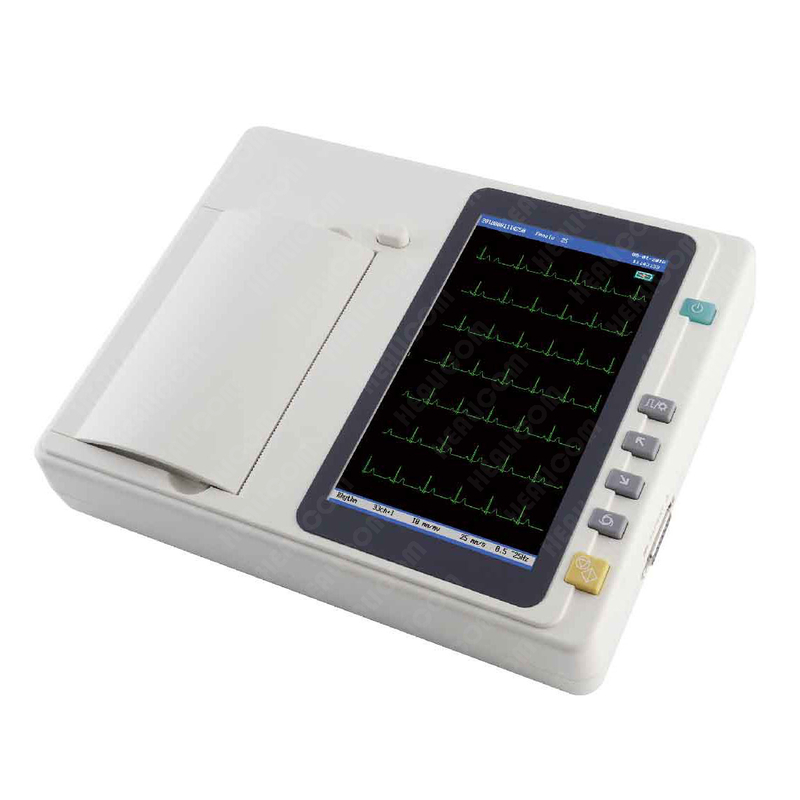

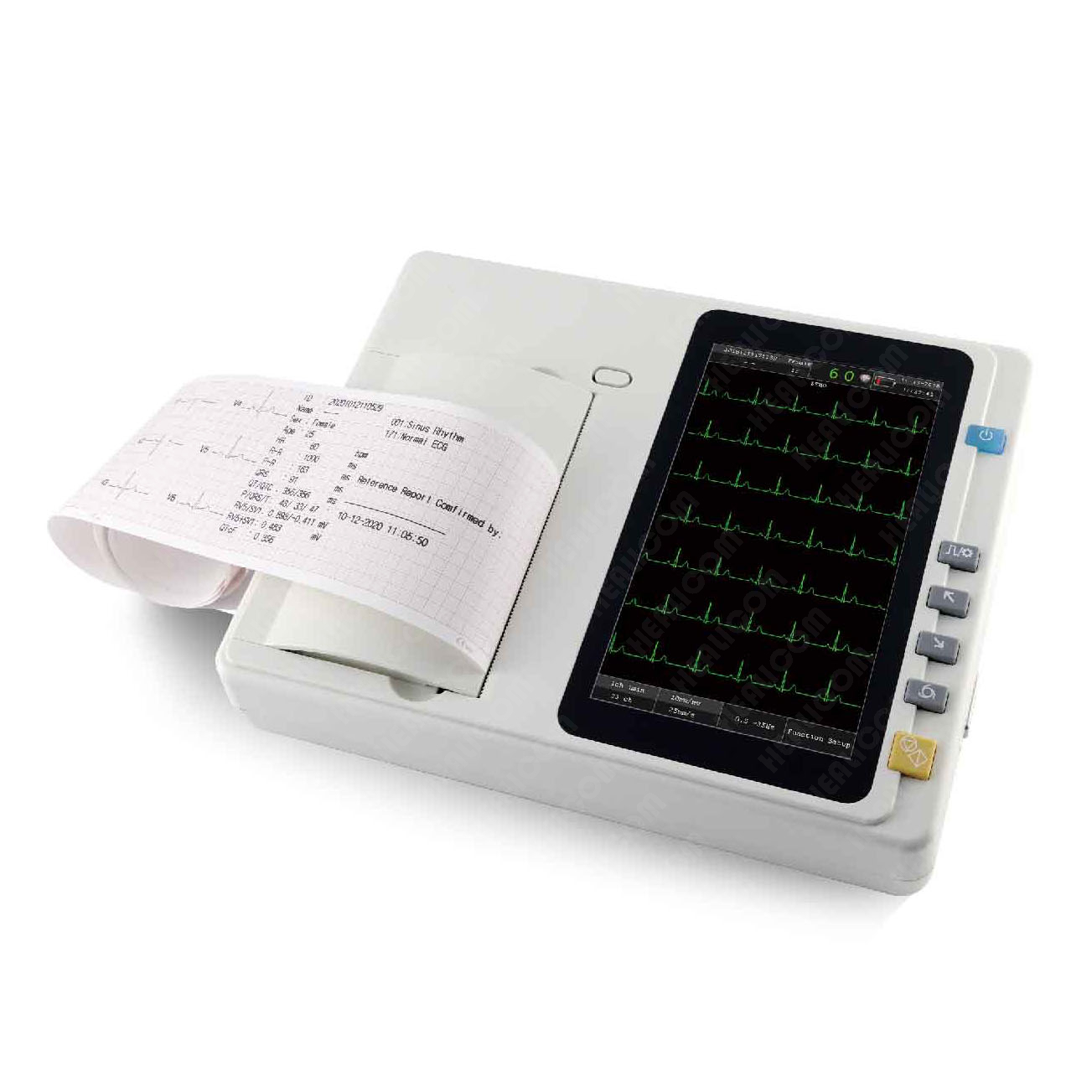

HE-301 601
Healicom
Product Description
Features:
*7 inch high resolution color touch screen
*12-lead simultaneous acquisition and display
*ECG Automatic measurement and interpretation function
*Complete digital filters, resisting baseline drift, AC and EMG interference
*Compact and lightweight design
*Support USB flash disk and micro SD card to extend memory
*Software upgrade via USB/SD card
*Built-in rechargeable Li-ion battery
Technical Specifications | ||
Items | Specification | |
Model | HE-301 | HE-601 |
Channel | 3 Channels | 6 Channels |
Lead | Standard 12 leads | Standard 12 leads |
Acquisition Mode | Simultaneous 12 leads acquisition | Simultaneous 12 leads acquisition |
Measurement Range | ±5mVpp | ±5mVpp |
Input Impedance | ≥50MΩ | ≥50MΩ |
Input circuit current | <0.05µA | <0.05µA |
CMRR | >100dB | >100dB |
Patient leak current | <10µA (220V-240V) | <10µA (220V-240V) |
Frequency Response | 0.05Hz~150Hz (-3dB) | 0.05Hz~150Hz (-3dB) |
Paper specification | Roll 80mmx20M | Roll 110mmx20M |
Safety Standard | IEC I/CF | IEC I/CF |
Sample Rate | Normal: 1000sps/channel | Normal: 1000sps/channel |
Power Supply | AC: 100~240V, 50/60Hz, 30VA~100VA DC: 14.8V/2200mAh, built-in lithium battery | AC: 100~240V, 50/60Hz, 30VA~100VA DC: 14.8V/2200mAh, built-in lithium battery |
Standard Configuration:
Main machine: 1 PC
Patient cable: 1 PC
Limb electrode: 1set (4pcs)
Chest electrode: 1set( 6pcs)
Power cable: 1 PC
80mm*20M recording paper: 1 PC
Paper axis: 1 PC
Power cord: 1 PC
Packing:
Single package size: 32*25*17cm
Single gross weight: 2.8 KG
8 unit per carton, package size: 54*33*75cm, total gross weight 22 KG
