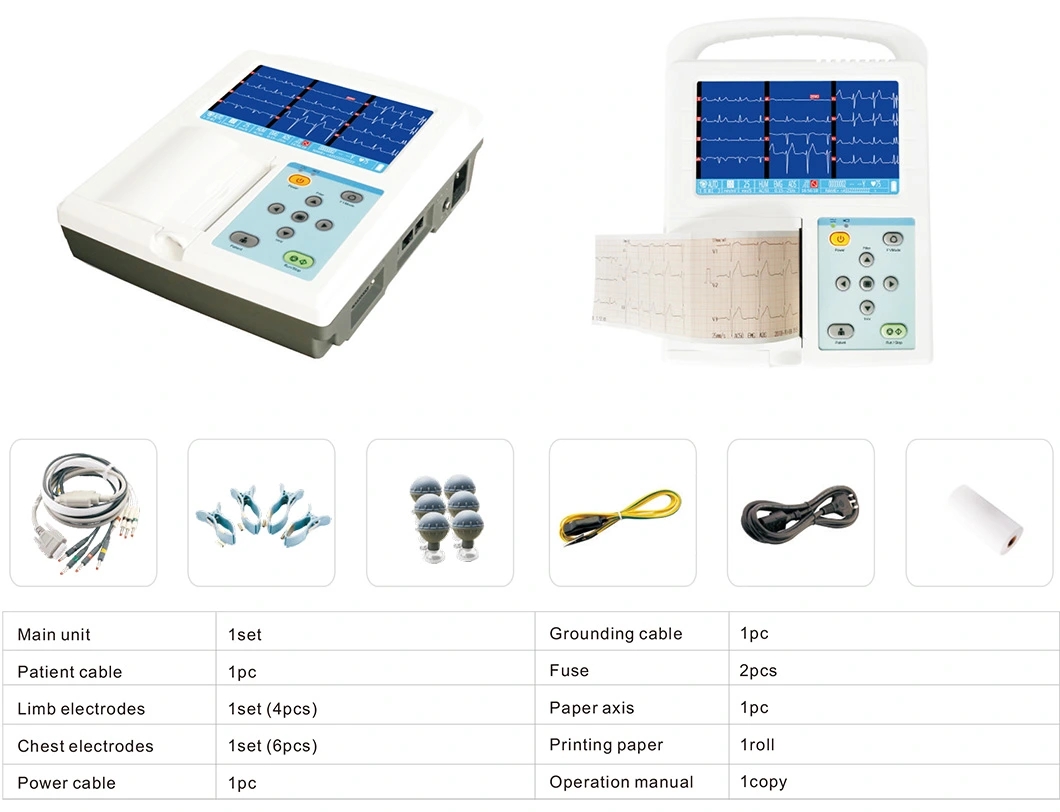

HE-03D/E
Healicom
Product Description
Features
• Portable delicate design, easy to cooperate.
• Accurate pulse pace identification; High accuracy digital filter & auto baseline adjustment.
• 12 leads synchronously acquisition and record; recording mode 1ch+, 3ch, 3ch+.
• Four working modes : Auto / Man / R-R Rhythm / Storage.
• 800x480 graphic, 7 inch color LCD to display ECG information ( for HE-03D).
• 800x480 graphic, 7 inch color touch LCD to display and operate ( for HE-03E).
• 250 patient cases storage and replay for HE- 03D internal SD card is optional).
• 400 patient cases storage and replay for HE- 03E internal SD card is optional).
• 80mmx20m, roll paper, high resolution thermal printing.
• Rechargeable Li-ion battery supports long time continuous work.
• Rs232 and USB port support USB flash storage, laser printer printing ( optional ).
• PC ECG management software is optional.
| Technical Specifications | |||
| Lead | Standard 12 leads | Time constant | ≥3.2s |
| Lead acquisition | 12bit/32000Hz (synchronously ) | Frequency response | 0.05 - 160Hz ( -3db ) |
| Work mode | Manual / Auto / R-R Analysis/Storage | Noise level | <15uVp-p |
| Filter | AC Filter: 50Hz / 60Hz | Inter-channel interference | ≤0.5mm |
| EMG Filter: 25Hz / 45Hz | Sensitivity | Auto, 2.5, 5, 10, 20, 40mm/mV (±3%) | |
| Anti-Drift Filter: 0.15Hz ( adaptive ) | Recording mode | 1ch+, 3ch, 3ch+ Default Man.Mode is 3ch format Default Auto.Mode is 3ch+ format | |
| CMRR | ≥120dB ( with AC Filter ) | Paper speed | 6.25, 12.5, 25, 50mm/s (±3%) |
| Input circuit | Floating; Protection circuit against defibrillator effect | Paper | 80mm x 20m roll thermal paper |
| Input impedance | ≥50MΩ | Working environment | Temperature 5-40°C; Humidity 25-95% |
| Input circuit current | ≤0.05 uA | Power supply | AC 110-230V (±10%), 50/60Hz, 40VA |
| Patient current leakage | <10 uA | DC Rechargeable lithium battery, 14.4V, 2200mAh | |
| Calibrating voltage | 1mV±2% | Communication Port | USB, UART |
| Voltage tolerance | ≥ ± 500mV | Dimension / Weight | 214mm x 276mm x 63mm, 1.8kgs |
