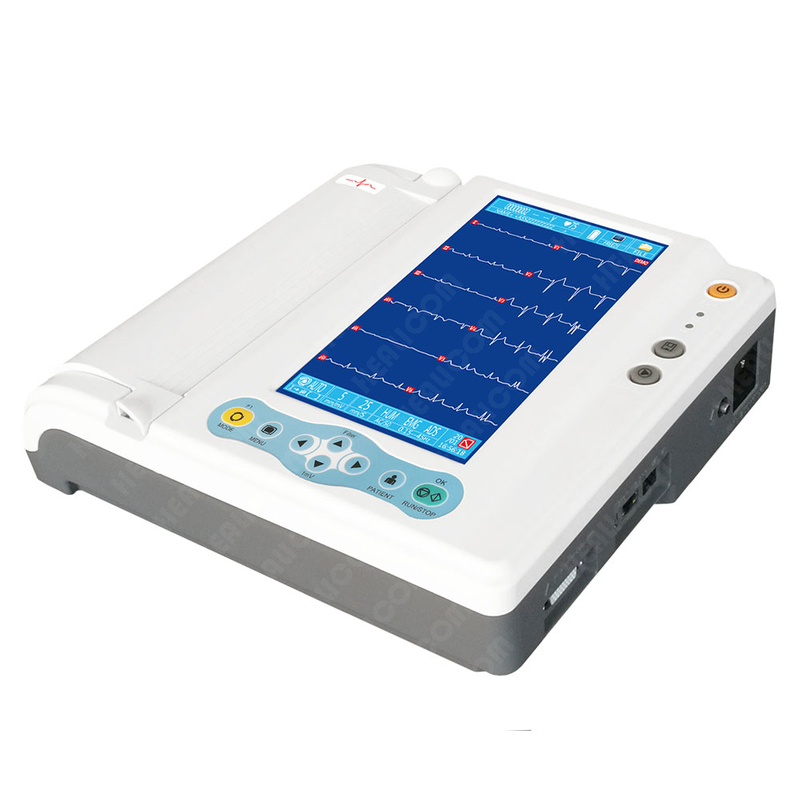

HE-12C Portable 12 Channel 12 Leads 9 Inch Color Touch LCD Screen Digital Electrocardiogram ECG Machine

HE-12C Portable 12 Channel 12 Leads 9 Inch Color Touch LCD Screen Digital Electrocardiogram ECG Machine

Features

• Portable, delicate design, easy to cooperate.

• Accurate pulse pace identification; High accuracy digital filter & auto baseline adjustment.

• 12 leads synchronously acquisition and record; recording mode 3ch+++, 6ch, 6ch+, 12ch

• Four working modes : Auto / Man / R-R Rhythm / Storage.

• 800x480 graphic, 9 inch color touch LCD to display ECG information • 400 patient cases storage and replay ( internal SD card is optional ).

• With freeze function of freezing 12 seconds ECG.

• 210mmx20m, roll paper, high resolution thermal printing ( optional for Z-fold paper ) .

• Rechargeable Li-ion battery supports long time continuous work.

• Rs232 and USB port support USB flash storage and laser printer printing.

• PC ECG management software is optional.

Technical Specifications
Lead	Standard 12 leads	Time constant	≥3.2s
lead acquisition	12bit/32000Hz (synchronously )	Frequency response	0.05~160Hz(-3db)
Work mode	Manual / Auto / R-R Analysis/Storage	Noise level	<15μVp-p
Filter	AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive)	Inter-channel Interference	≤0.5mm
CMMR	≥120dB (with AC FILTER)	Sensitivity	Auto, 2.5, 5,10,20,40mm/mV (±3%)
Input circuit	Floating; Protection circuit against defibrillator effect	Recording mode	.3ch+++, 6ch, 6ch+, 12ch .Default Man.Mode format is 3ch+++ .Default Auto.Mode format is 12ch
Input Impedance	≥50MΩ	Paper speed	6.25, 12.5, 25, 50mm/s(±3%)
Input circuit current	≤0.05μA	Paper	210mm x 20m roll thermal paper
Patient current leakage	<10μA	Communication	USB, UART
Calibrating voltage	1mV±2%	Power Supply	AC 110-230V(±10%), 50/60Hz(±1Hz), 40VA DC Built-in rechargeable battery, 14.4V (4400mmAh)
Voltage tolerance	≥±500mV	Dimension/Weight	310mm x 278mm x 76mm, 3.0kgs

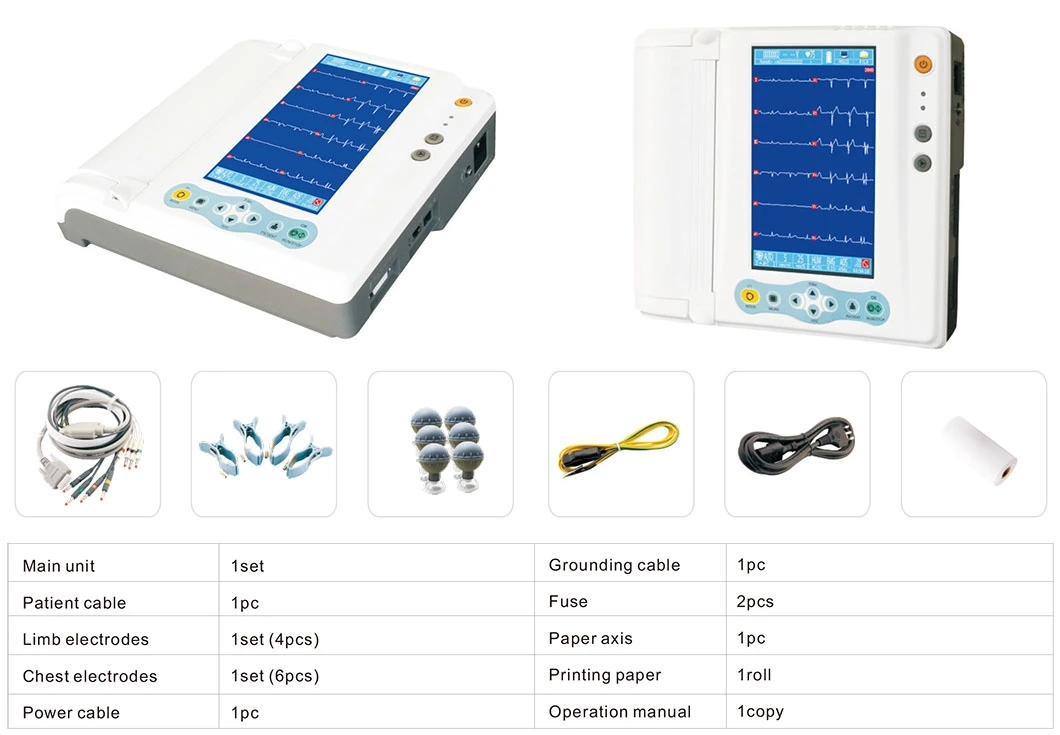

Main Accessories and Packing List
