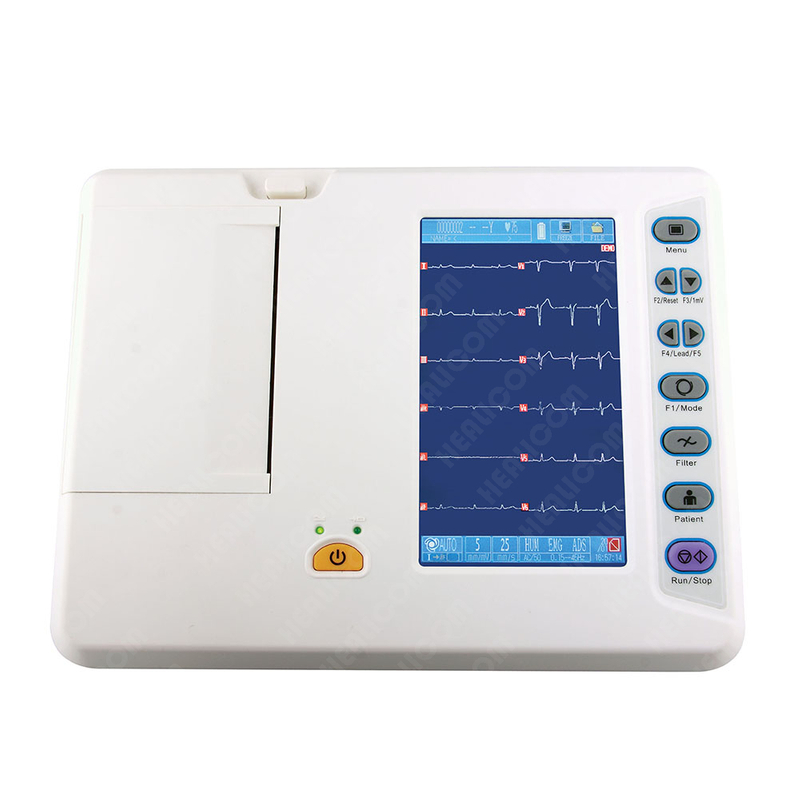

HE-06A/B
Healicom
Product Description
Features
1. Accurate pulse pace identification and automatic analysis function
2. Working modes: Manual / Auto / Analysis/Storage
3. 112mm, 6 channel format recording
4. 800×480 graphic 7 inch color touch LCD screen
5. 12 leads synchronously acquisition and display
6. Advanced [Freeze] function
7. 250 patient cases save and replay (extendable)
8. Adapt to 110-230V, 50/60Hz power supply
9. Built-in rechargeable Li-ion battery
10. High resolution thermal printing
11. USB/RS232 interface, ECG software is optional
12. Can be connected to Network, USB Disk, Printer and Code Scanner (Optional)
| Technical Specifications | |||
| Lead | Standard 12 leads | Time constant | ≥3.2s |
| lead acquisition | 12bit/1000Hz(synchronously 12 leads) | Frequency response | 0.05~160Hz(-3db) |
| Work mode | Man / Auto/Analysis/Storage | Noise level | <15μVp-p |
| Filter | AC Filter: 50Hz / 60Hz EMG Filter: 25Hz / 45Hz Anti-Drift Filter: 0.15Hz (Adaptive) | Inter-channel Interference | ≤0.5mm |
| CMMR | ≥100dB (with AC FILTER) | Sensitivity | 5,10,20, 40, Auto (mm/mV) |
| Input circuit | Floating; Protection circuit against Defibrillator effect | Recording mode | 3ch, 3ch+, 3ch+++, 6ch Default Man. Mode is 3ch format Default Auto. Mode is 6ch+ format |
| Input Impedance | ≥50MΩ | Paper speed | 6.25,12.5,25,50mm/s(±3%) |
| Input circuit current | ≤0.05μA | Paper | 112mm *20m Roll paper |
| Patient current leakage | <10μA | Communication | RS232/ USB port |
| Calibrating voltage | 1mV±2% | Power Supply | AC 110-230V(±10%),50/60Hz(±1Hz),60VA DC Built-in rechargeable battery,14.4V(2000mmAh) |
| Voltage tolerance | ≥±500mV | Dimension/Weight | 300mm×230mm×72mm / 2.8Kg |
