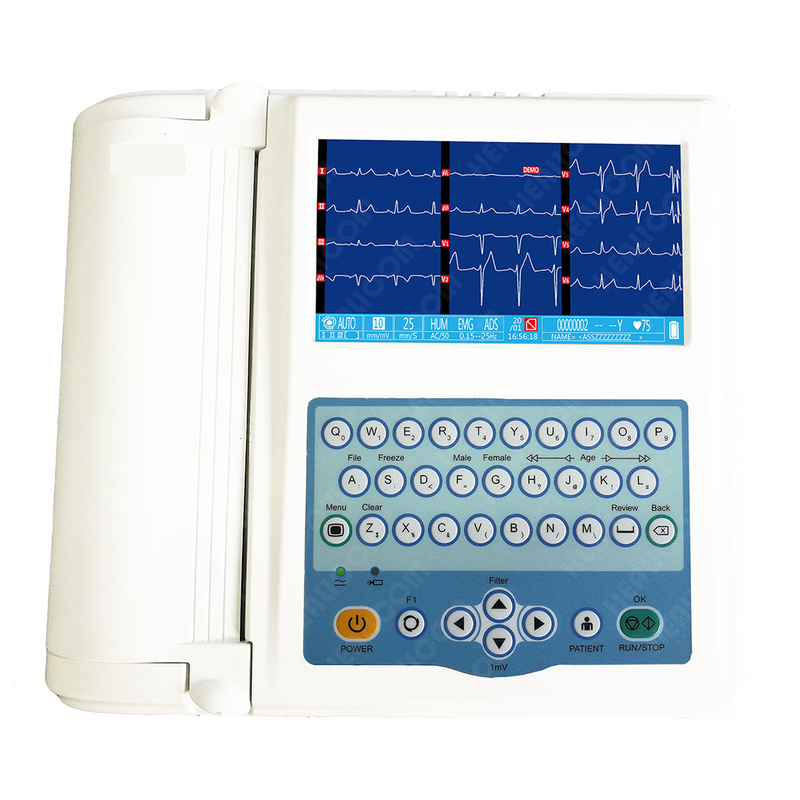

HE-12A1
Healicom
Product Description
Features
• Portable, delicate design, easy to cooperate.
• Accurate pulse pace identification; High accuracy digital filter & auto baseline adjustment.
• 12 leads synchronously acquisition and record; recording mode 3ch+++, 6ch, 6ch+, 12ch
• Four working modes : Auto / Man / R-R Rhythm / Storage.
• 800x480 graphic, 7 inch color LCD to display ECG information
• Alphanumeric keyboard to operate.
• 250 patient cases storage and replay ( internal SD card is optional ).
• With freeze function of freezing 12 seconds ECG.
• 210mmx20m, roll paper, high resolution thermal printing ( optional for Z-fold paper ) .
• Rechargeable Li-ion battery supports long time continuous work.
• Rs232 and USB port support USB flash storage, laser printer printing (optional).
• PC ECG management software is optional.
| Technical Specifications | |||
| Lead | Standard 12 leads | Time constant | ≥3.2s |
| lead acquisition | 12bit/32000Hz (synchronously) | Frequency response | 0.05~160Hz(-3db) |
| Work mode | Manual / Auto / R-R Analysis / Storage | Noise level | <15μVp-p |
| Filter | AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive) | Inter-channel Interference | ≤0.5mm |
| CMMR | ≥120dB (with AC FILTER) | Sensitivity | Auto, 2.5, 5,10,20,40mm/mV ( 3%) |
| Input circuit | Floating; Protection circuit against defibrillator effect | Recording mode | 3ch+++, 6ch, 6ch+, 12ch Default Man. Mode format is 3ch+++ Default Auto. Mode format is 12ch |
| Input Impedance | ≥50MΩ | Paper speed | 6.25, 12.5, 25, 50mm/s(±3%) |
| Input circuit current | ≤0.05μA | Paper | 210mm x 20m roll thermal paper |
| Patient current leakage | <10μA | Communication | RS232/ USB port |
| Calibrating voltage | 1mV±2% | Power Supply | AC 110-230V(±10%), 50/60Hz(±1Hz), 40VA DC Built-in rechargeable battery, 14.4V (4400mmAh) |
| Voltage tolerance | ≥±500mV | Dimension/Weight | 310mm x 278mm x 76mm, 3.0kgs |
