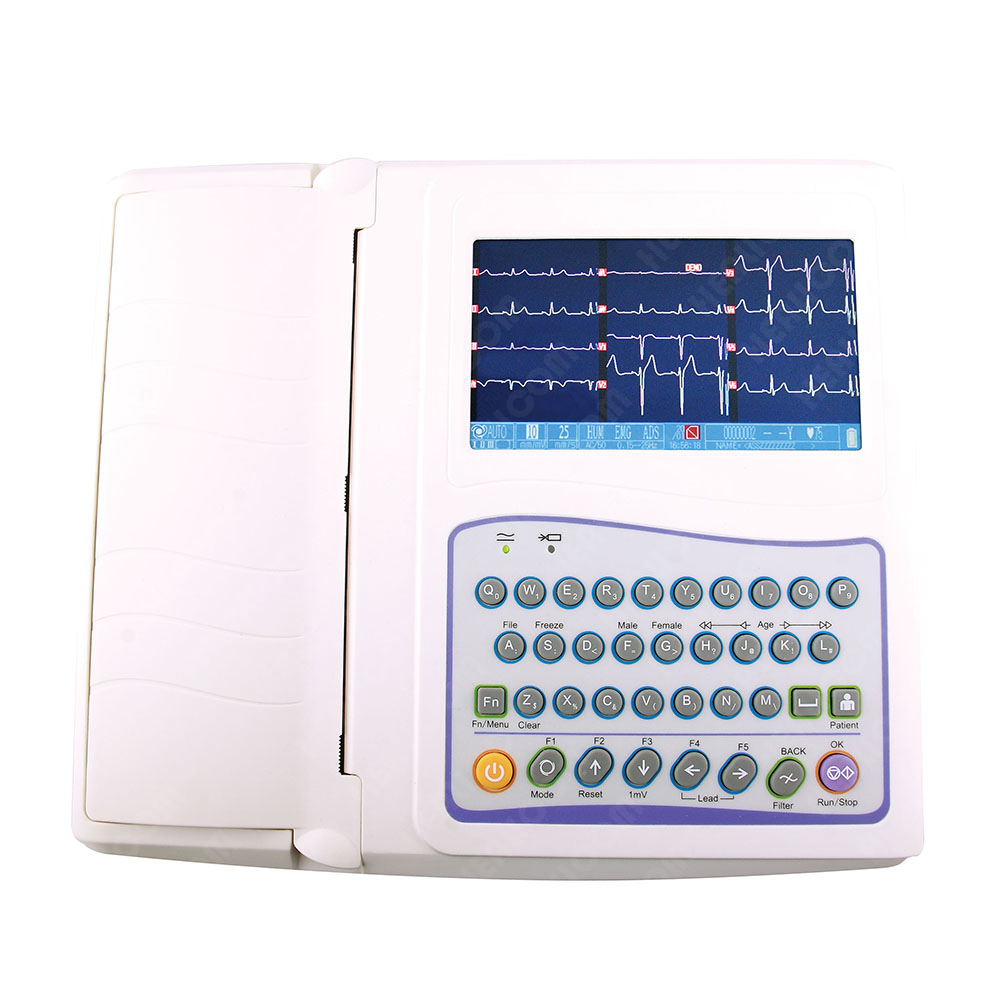

HE-12A
Healicom
Product Description
Features
1. Accurate pulse pace identification and automatic analysis function
2. Working modes: Manual / Auto / Analysis / Storage
3. 215mm, 12 channel format recording
4. 800×480 graphic 7 inch color LCD screen
5. 12 leads synchronously acquisition and display
6. Alphanumeric keyboard for operation and input
7. 250 patient cases save and replay (extendable)
8. Adapt to 110-230V, 50/60Hz power supply
9. Built-in rechargeable Li-ion battery
10. USB / Rs232 interface. Can be connected to Network, USB Disk, Printer and Code Scanner . ECG software is optional
11. High resolution thermal printing available for 215mm roll paper or 210mm*140mm Z-fold paper
| Technical Specifications | |||
| Lead | Standard 12 leads | Time constant | ≥3.2s |
| lead acquisition | 12bit/1000Hz(synchronously 12 leads) | Frequency response | 0.05~160Hz(-3db) |
| Work mode | Man / Auto/Analysis/Storage | Noise level | <15μVp-p |
| Filter | AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive) | Inter-channel Interference | ≤0.5mm |
| CMMR | ≥100dB (with AC FILTER) | Sensitivity | 5,10,20, 40, Auto (mm/mV) |
| Input circuit | Floating; Protection circuit against Defibrillator effect | Recording mode | 3ch+++,6ch,6ch+,12ch Default Man. Mode is 3ch+ format Default Auto. Mode is 12ch+ format |
| Input Impedance | ≥50MΩ | Paper speed | 6.25,12.5,25,50mm/s(±3%) |
| Input circuit current | ≤0.05μA | Paper | 215 mm * 20m Roll paper |
| Patient current leakage | <10μA | Communication | RS232/ USB port |
| Calibrating voltage | 1mV±2% | Power Supply | AC 110-230V(±10%), 50/60Hz(±1Hz), 60VA DC Built-in rechargeable battery, 14.4V(4400mmAh) |
| Voltage tolerance | ≥±500mV | Dimension/Weight | 330mm×270mm×72mm/3.8Kg |
