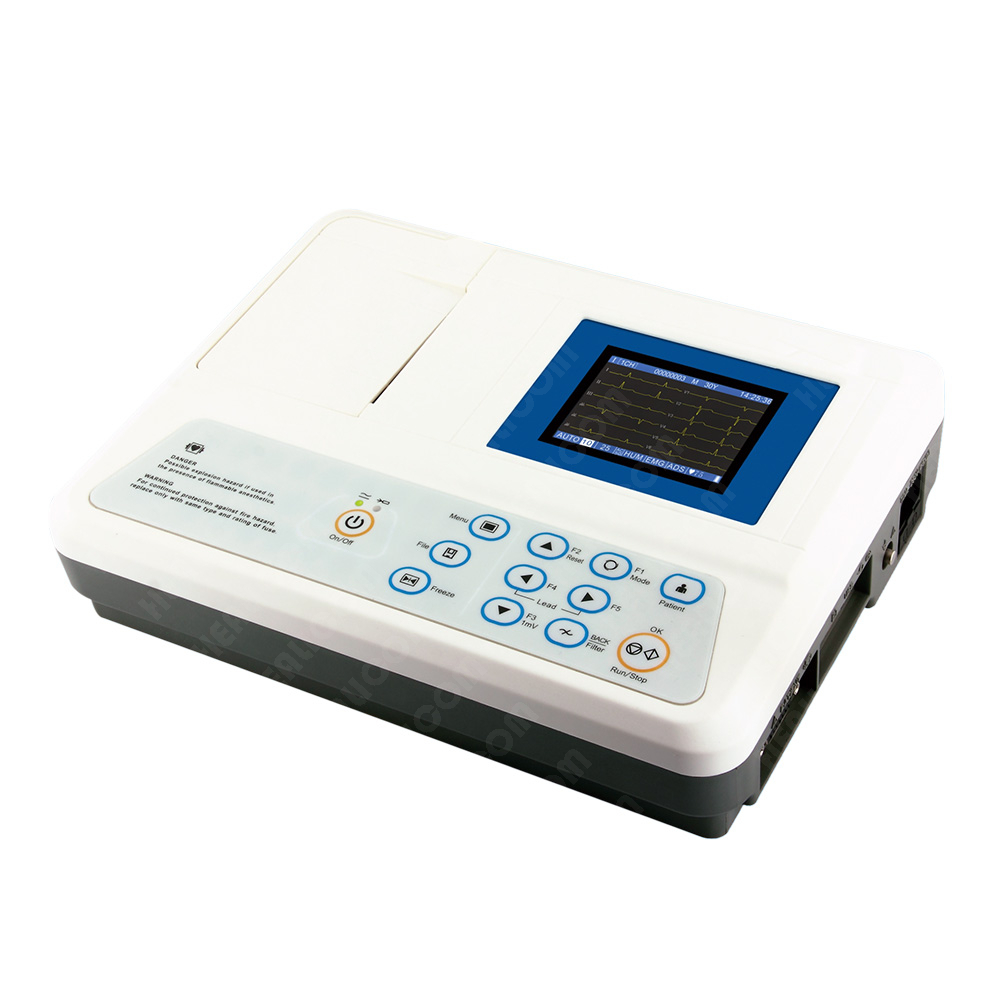

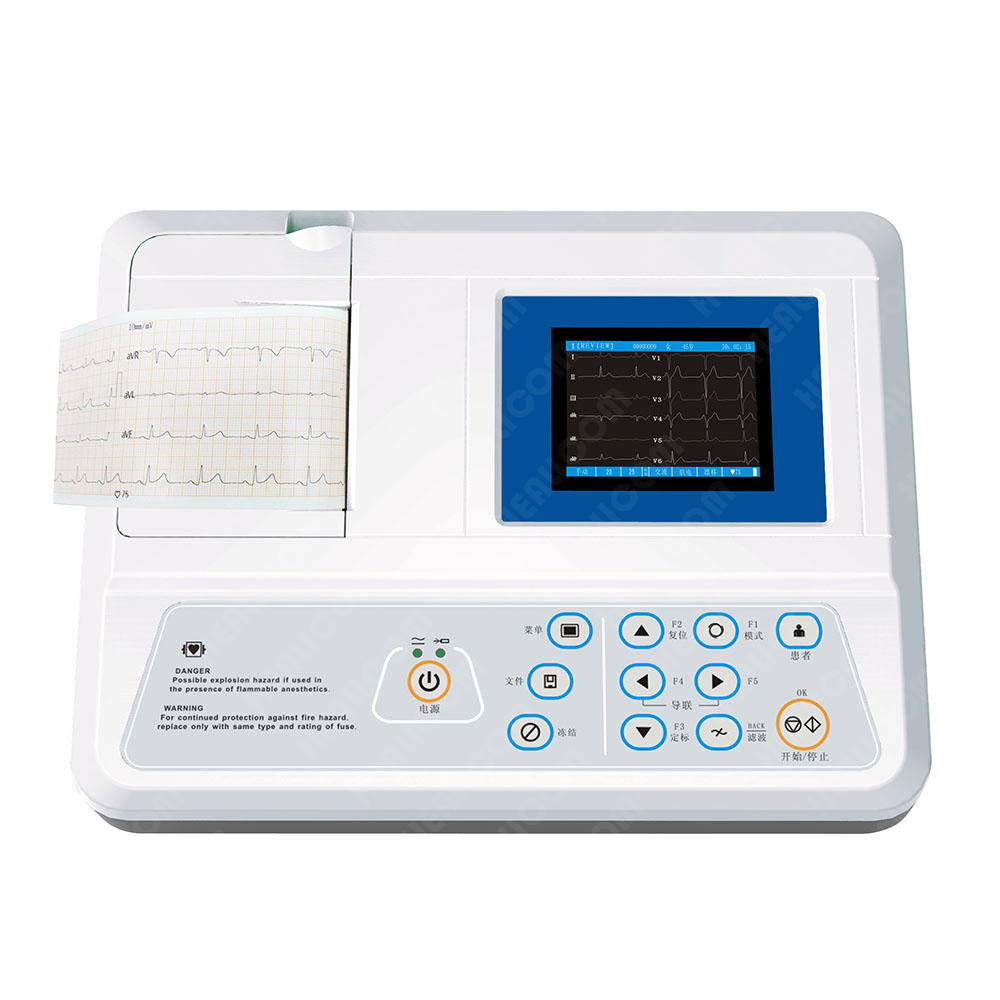

HE-03A Medical Portable 3 Channel Color Display Digital ECG Electrocardiograph

Features

• Portable and light weight, easy to operate.

• Accurate pulse pace identification function.

• High accuracy digital filter, automatic baseline adjustment.

• Working modes: Manual, Automatic, R-R, Store.

• 80mm, 3 channel format recording, excellent automatic interpretation.

• 320x240 graphic 3.5 inch color LCD to simultaneously display ECG information.

• 250 patient cases storage ( SD card storage is optional ).

• Detailed patient information input and record.

• With Freeze function.

• Adapt to 110-230V, 50/60Hz power supply. Rechargeable Li-ion battery supports continuously working for about 9 hours.

• USB / UART communication ports support USB storage, laser printer printing and PC ECG software ( Optional ).


Technical Specifications
Lead
Standard 12 leads
Time constant
≥3.2s
Lead acquisition
12 leads synchronously acquisition
Frequency response
0.05 - 160Hz ( -3db )
Work mode
Manual / Auto / R-R / Store
Noise level
<15uVp-p
Filter
AC Filter: 50Hz / 60Hz
Inter-channel interference
≤0.5mm
EMG Filter: 25Hz / 45Hz
Sensitivity
Auto, 2.5, 5, 10, 20, 40mm/mV (±3%)
Anti-Drift Filter: 0.15Hz ( adaptive )
Recording mode
1ch+, 3ch, 3ch+
CMRR
≥120dB ( with AC Filter )
Paper speed
6.25, 12.5, 25, 50mm/s (±3%)
Input circuit
Floating; Protection circuit against defibrillator effect
Recording Paper
80mmx20m roll paper
Input impedance
≥50MΩ
Working environment
Temperature 5-40°C; Humidity 25-95%
Input circuit current
≤0.05 uA
Power supply
AC 110-230V (±10%), 50/60Hz (±1Hz )
Patient current leakage
<10 uA
DC Rechargeable lithium battery, 14.4V, 2200mAh
Calibrating voltage
1mV±2%
Communication Port
USB, UART
Voltage tolerance
≥ ± 500mV
Dimension / Weight
300mmx230mmx72mm, 2.8kgs
