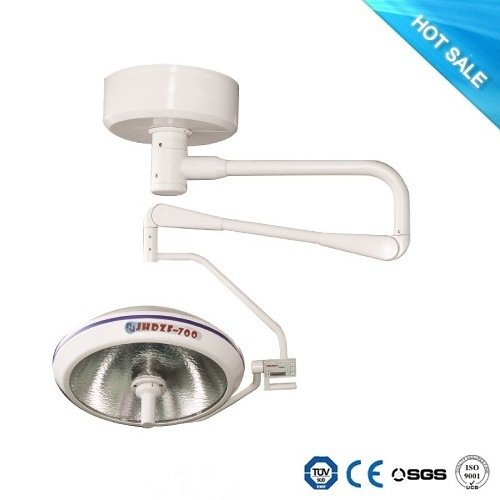

HDZF-700/500
Product Description
Main Use
Operation shadowless lamp HDZF-700/500 series is widely used in various lighting situations, meeting all different needs of lighting during operation.
Structure
HDZF series is fully enclosed streamlined dual-lamp body structure, fully meeting the high standards of disinfection and laminar flow in today's operating room.
Using CAD / CAM technology to create overall reflection optical system, Adopting color temperature compensation technology to enhance color reproduction, more suitable for brain surgery, thoracic surgery and other complex large lighting operations.
The type is movable with stand.
It is mounted type and has monitor, the product can be based on user's demand matching video surveillance system for image
Specifications
Characteristics | ||
Content | Reflector diameter 700mm | Reflector diameter 500mm |
Center Light intensity | 120klx~140klx | 80klx~120klx |
Spot diameter(d10) | ≥180mm | ≥160mm |
Column depth | ≥700mm | ≥600mm |
Color temperature | 4500±500K | |
Increasing Temperature | ≤10ºC | |
Color rendering Index (CRI) | ≥92 | |
Switch between main and assistant bulb | Automatic | |
Illumination adjustment | 8-level sequentially | |
Bulb watt | 150W | |
Total radiated energy Ee where the illuminance reaches max level | ≤500w/m2 | |
Mechanical characteristics | ||
Spring arm around fixed holder | ≥360° | |
Bracket around spring arm | ≥360° | |
rotation of horizontal bracket | clockwise ≥140°,anti-clockwise ≥140° | |
Lamp head around horizontal bracket | clockwise ≥100°,anti-clockwise≥100° | |
Up and down of balancing arm | up≥40° down ≥40° |
