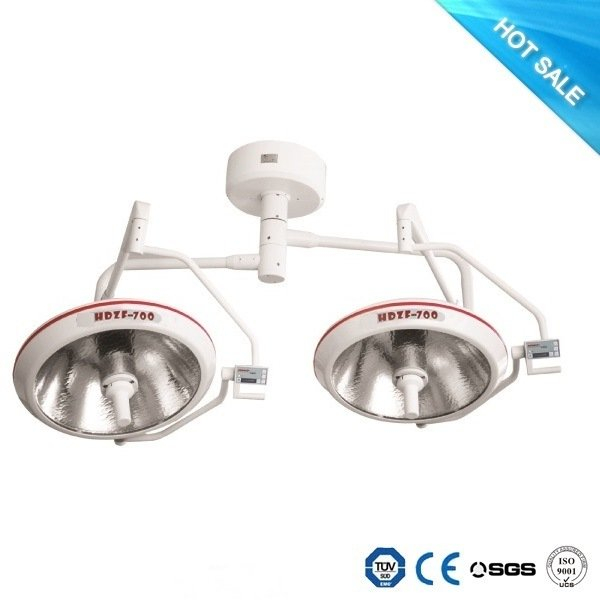

CE ISO Approved Overall Reflection Shadowless Operating Lamp
You are here: Home » Products » Surgical&ICU Equipments » Operating Lamp » CE ISO Approved Overall Reflection Shadowless Operating Lamp

Category List

loading

CE ISO Approved Overall Reflection Shadowless Operating Lamp

Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HDZF 700/700

  • Shadowless Lamp

  • All

  • Double Operating Light

  • CE ISO

  • 120klx~140klx

  • ≥700mm

  • ≥92

  • 150W

  • Carton

  • Jiangsu, China

  • Operating Light

  • CE, ISO13485

  • Without LCD Display

  • 12months

  • Reflector Diameter 700mm

  • ≥180mm

  • 4500±500k

  • 8-Level Sequentially

  • Healicom

  • CE, ISO

  • 9018909090

Product Description

Main Use
Operation shadowless lamp HDZF-700/500 series is widely used in various lighting situations, meeting all different needs of lighting during operation.

Structure
HDZF series is fully enclosed streamlined dual-lamp body structure, fully meeting the high standards of disinfection and laminar flow in today's operating room.
Using CAD / CAM technology to create overall reflection optical system, Adopting color temperature compensation technology to enhance color reproduction, more suitable for brain surgery, thoracic surgery and other complex large lighting operations.
The type is movable with stand.
It is mounted type and has monitor, the product can be based on user's demand matching video surveillance system for image

Specifications
Characteristics
Content Reflector diameter 700mm Reflector diameter 500mm
Center Light intensity 120klx~140klx 80klx~120klx
Spot diameter(d10) ≥180mm ≥160mm
Column depth ≥700mm ≥600mm
Color temperature 4500±500K
Increasing Temperature ≤10ºC
Color rendering Index (CRI) ≥92
Switch between main and assistant bulb Automatic
Illumination adjustment 8-level sequentially
Bulb watt 150W
Total radiated energy Ee where the illuminance reaches max level ≤500w/m2
Mechanical characteristics
Spring arm around fixed holder ≥360°
Bracket around spring arm ≥360°
rotation of horizontal bracket clockwise ≥140°,anti-clockwise ≥140°
Lamp head around horizontal bracket clockwise ≥100°,anti-clockwise≥100°
Up and down of balancing arm up≥40° down ≥40°
