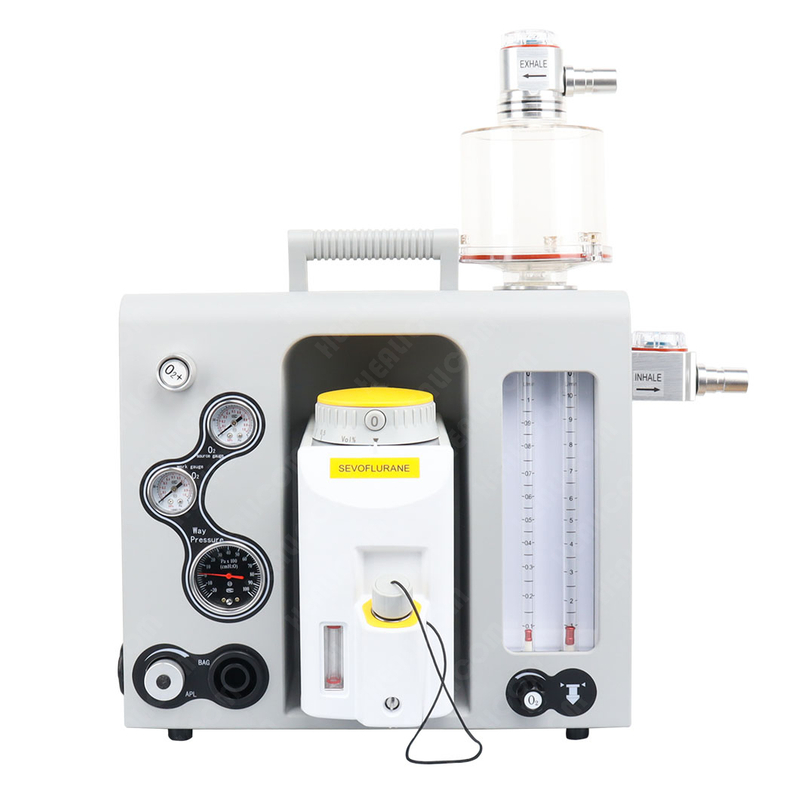

HA-PH Medical ICU Portable 2000ml Manual Anesthesia Machine

Features:

• Compact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley.

• Specifically designed to accomodate low flow

• Selectatec-bar and quick change vaporizer mounting device

• Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment.

• External and reusable soda lime canister, easily watch and replace soda lime.

• With Oxygen flush function to ensure that clinical anesthesia demand and Oxgyen supply demand.

• With APL pressure reducing valve to prevent pressure to hurt the animal, ensure the animal safety .

• Wastewater discharge system

• Visible inspiration and expiration valve

• Could upgrade to Oxygen&N2O or Oxygen&Air flow meter freely

• Module rack with polyester medical material with superior spray technology, high strength and light weight.

• With transport case, convenient to take and transport

• Easy to disassemble and assemble all the components, convenient for clean and maintenance.

Technical Specifications
Ventilation mode	Closed, half-closed, half-open
Tidal volume ( Manual Mode)	10~2000ml
Gas pressure	0.25~0.65Mpa
Flow meter	Oxygen two tube: one tube: 0.1~1, one tube: 1~10L/M
APL valve	0.5~6.0Kpa
OXYGEN Flush	25~75L/min
I:E	As the doctor operation
BPM	As the doctor operation
Monitoring	Airway pressure, respiratory mode
Three gauges	One for Oxygen source pressureOne for oxygen working pressure One for airway pressure
