Selecting the wrong cycle on your sterilization equipment goes far beyond a simple operational mistake. It severely compromises sterility assurance, risks irreversible instrument damage, and violates strict regulatory compliance standards. Facility managers and sterile processing technicians face immense pressure to get this right every single time. Both primary cycles use high-pressure steam to eradicate microscopic pathogens. However, their method of air removal dictates their ultimate penetration power and load compatibility. If you trap air inside the chamber, you guarantee a failed cycle.
Choosing between gravity displacement and pre-vacuum technology depends entirely on your specific load composition, daily throughput demands, and available facility infrastructure. In this guide, you will discover the fundamental mechanics behind both passive and active air removal. We will provide a clear matrix for load compatibility to ensure you always make the safest, most compliant choice for your instruments.
Gravity cycles rely on passive air displacement; they are cost-effective and optimal for liquids, simple glassware, and unwrapped solid instruments.
Pre-vacuum cycles use active mechanical air removal, making them mandatory for porous loads, wrapped goods, and instruments with narrow lumens.
Hardware configuration matters: Cycle availability and performance scale differently across a tabletop autoclave sterilizer, a vertical unit, or a high-capacity horizontal system.
Compliance and Maintenance: Pre-vacuum systems require daily air-removal validation (Bowie-Dick tests) and higher maintenance for vacuum pumps.

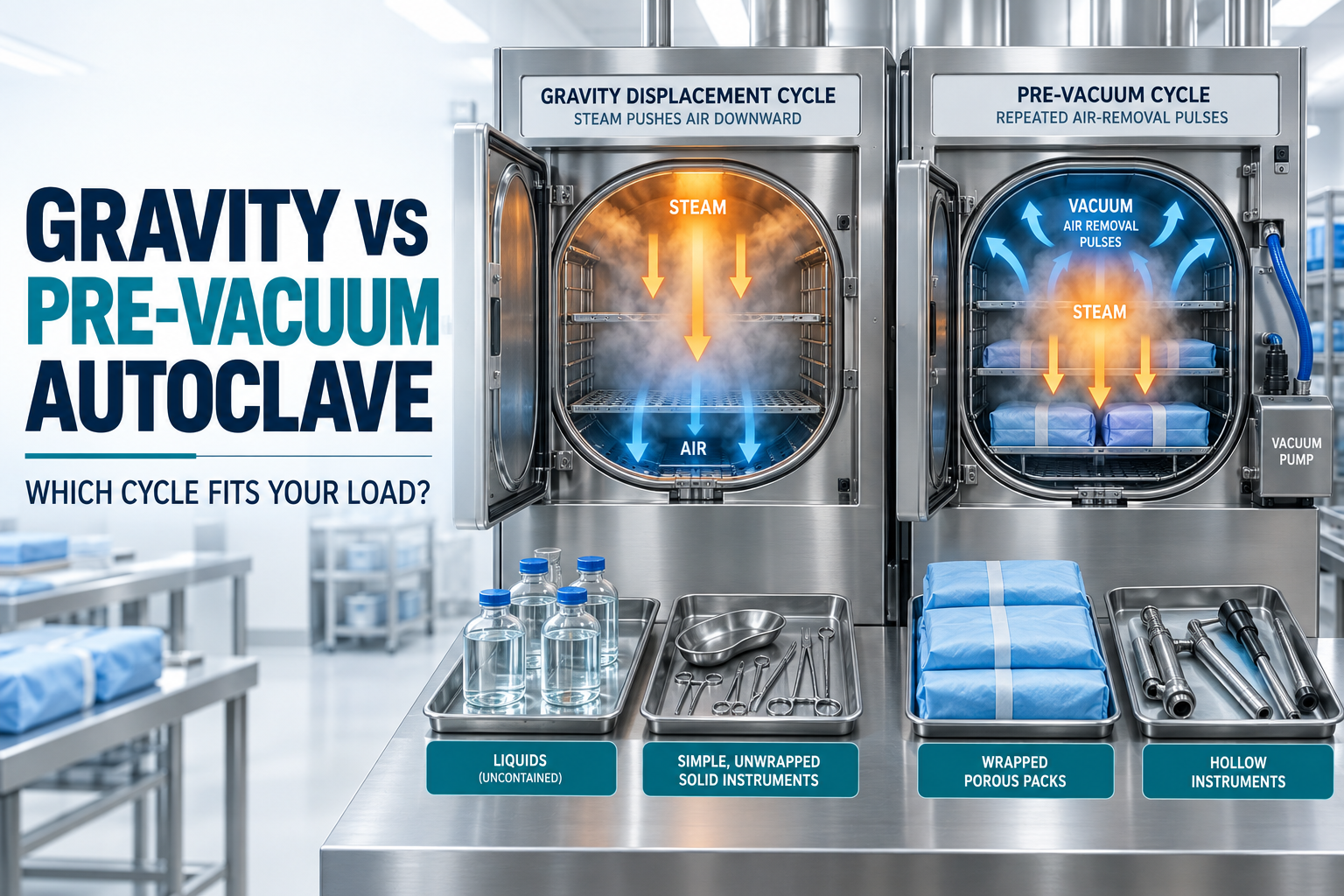

Understanding how a steam sterilizer works requires looking closely at air. Ambient air acts as a highly effective thermal insulator. Trapped air pockets prevent direct steam contact during the cycle. Steam transfers energy through the latent heat of vaporization. When steam touches a cold surface, it condenses immediately. This phase change releases massive amounts of energy. This energy destroys cellular proteins and kills pathogens. If air blocks the steam, this crucial phase change never happens. The temperature inside the air pocket remains too low. Microorganisms survive easily in these cold zones. You must remove all ambient air before the active heating phase begins. This fundamental rule applies to every single sterilization load.
This method relies entirely on fundamental physics. Steam is naturally lighter than ambient air. The machine injects hot steam into the chamber. This incoming steam naturally rises to the top ceiling of the unit. As it accumulates, it pushes the heavier ambient air down toward the bottom. A thermostatic drain vent sits at the bottom of the chamber. This vent stays open to let the cold air escape. Once hot steam finally reaches the bottom vent, the trap closes automatically. The chamber then builds pressure and temperature.
Limitation: This passive method works exceptionally well for open surfaces. However, it struggles immensely in tight spaces. You cannot force passive air out of porous fabrics. Complex hinges on surgical tools trap tiny air pockets safely away from the steam flow. Passive displacement often leaves dangerous cold spots inside these intricate items.
This cycle utilizes intense mechanical force. A dedicated vacuum pump actively extracts ambient air from the chamber. It does not wait for steam to push the air out. The system operates through a series of dynamic pulses. The machine pulls a deep vacuum first. Next, it injects high-pressure steam into the chamber. It repeats this alternating process several times. This aggressive pulsing creates a near-complete vacuum environment before the sterilization phase even begins.
Advantage: Steam rushes into the vacuum instantly. It penetrates deeply into the most complex loads. You guarantee instant contact with every hidden surface. Active removal easily forces steam through dense surgical towels and microscopic pores in sterilization pouches. It meets the most stringent compliance standards for intricate medical devices.
Gravity cycles serve a very specific and critical purpose in laboratories and clinics. You should rely on them for low-complexity processing. They perform perfectly when air trapping poses absolutely no physical risk to the load. You must evaluate the physical geometry of your items carefully.
Unwrapped, solid, flat instruments: Basic surgical tools, stainless steel basins, and flat metal trays fit perfectly here. Steam easily contacts their exposed surfaces.
Aqueous liquids and microbiological media: Gravity cycles are absolutely essential here. Pre-vacuum cycles cause sudden, violent pressure drops. This sudden vacuum makes liquids boil over explosively inside the chamber. Gravity cycles exhaust the steam slowly and safely.
Simple, non-porous glassware: Empty beakers and flasks sterilize easily under passive gravity conditions. You must simply tilt them properly so heavy air can flow out of their openings.
Load Material | Recommended Cycle | Reasoning |
|---|---|---|
Aqueous Liquids | Gravity | Prevents explosive boiling during the exhaust phase. |
Solid Unwrapped Metal | Gravity | No hidden crevices to trap insulating air pockets. |
Empty Glassware | Gravity | Safe for non-porous items positioned to allow air drainage. |
Wrapped Instruments | Pre-Vacuum | Gravity cannot passively penetrate sterile barriers effectively. |
Gravity cycles typically run slower than active vacuum cycles. The passive air displacement phase takes considerable time. The slow exhaust phase for liquids extends the total cycle duration further. However, they offer highly simplified daily operations. You deal with fewer mechanical components. Facilities processing simple loads benefit greatly from this operational simplicity.
Modern medical and research processing demands incredibly high sterility assurance levels (SAL). You must achieve an SAL of 10^-6 consistently. High-complexity loads trap air easily and stubbornly. They require deep, immediate steam penetration. Pre-vacuum cycles provide this necessary mechanical power. You cannot compromise on air removal when handling critical medical devices.
Wrapped instruments: Steam must pass through protective pouches or dense surgical packs. Blue wrap features microscopic pores. Gravity cannot push air through these barriers. A vacuum pump effortlessly pulls the air out.
Hollow loads and narrow lumens: Think of flexible endoscopes, surgical tubing, and complex dental handpieces. Air hides deep inside these long, narrow tubes. Active dynamic pulsing forces steam down the entire length of the lumen.
Porous materials: Textiles, surgical gowns, and biohazardous waste bags require intense penetration. Dense fabrics hold massive amounts of trapped air. Active vacuum ensures the very center of a towel pack reaches the correct sterilization temperature.
These complex cycles finish much faster overall. Rapid heating phases and active vacuum drying speed up the entire process. Vacuum drying forcefully pulls moisture out of the load at the end of the cycle. This prevents dangerous "wet packs." Wet packs immediately compromise sterile barriers upon removal. However, you must perform rigorous daily testing. You must validate vacuum integrity every single morning to ensure the pump works flawlessly.
Different facilities require different hardware configurations. You must match your specific cycle requirements to the physical chamber style. Cycle availability scales very differently across machine formats.
A compact tabletop autoclave sterilizer fits perfectly in busy clinics, tattoo studios, and dental offices. Space remains highly limited in these clinical environments.
Decision factor: You will often find these units classified under strict European standards as Class N or Class B. Class N provides gravity cycles only. They work well for solid, unwrapped items. Class B features robust pre-vacuum capabilities. You must verify Class B status if your dental practice processes wrapped instruments or hollow handpieces. Using a Class N machine for wrapped dental tools violates fundamental sterilization principles.
Research facilities, universities, and clinical laboratories often choose a vertical autoclave sterilizer. These units save valuable floor space while offering deep chamber capacity.
Decision factor: These units feature a unique top-loading design. This vertical chamber dynamic naturally favors gravity and liquid cycles. They hold tall Erlenmeyer flasks and heavy media bottles very efficiently. Technicians can easily lower heavy wire baskets of liquid media straight down into the chamber. They remain highly effective and standardized for large-batch liquid media processing.
Large hospitals and high-throughput sterile processing departments (SPDs) require immense processing capacity. They rely heavily on a massive horizontal autoclave sterilizer. These systems dominate central sterile environments.
Decision factor: These systems handle incredibly diverse, high-volume surgical loads. Manufacturers equip them with advanced multi-cycle programmable capabilities. You can seamlessly switch between deep pre-vacuum pulses for orthopedic surgical sets and gentle gravity parameters for laboratory liquids. Their jacketed chamber designs provide continuous heat, ensuring rapid cycle turnover for critical hospital operations.
Selecting the correct sterilization cycle involves strict operational compliance evaluations. You must carefully assess your facility's maintenance capabilities and validation protocols before making a final hardware decision.
Pre-vacuum systems strictly mandate daily Bowie-Dick testing. You must run this specific test pack in an empty chamber every morning. This test physically proves the vacuum pump removes air effectively. The chemical indicator sheet inside the pack changes color uniformly only if a complete vacuum is achieved. You must also perform regular mechanical leak tests. Conversely, gravity systems do not require these daily air-removal tests. This fundamental difference significantly streamlines daily validation routines and simplifies consumable inventory management.
Pre-vacuum units possess complex mechanical vacuum pumps. These critical components require strict preventative maintenance schedules to function safely. You must provide specific incoming water quality and maintain minimum facility water pressure to keep liquid ring pumps sealed. Gravity units feature far fewer moving parts. This simpler internal design inherently reduces your risk of unexpected operational downtime. Facility managers must ensure their utility infrastructure can support active vacuum technology.
You must carefully weigh the operational demands of your department. Pre-vacuum systems offer significantly faster instrument turnaround times. Active vacuum drying actively pulls moisture from wrapped packs. This guarantees dry instruments and keeps sterile processing moving swiftly. Gravity cycles take much longer to heat up and exhaust safely. You must evaluate if your specific facility requires rapid, continuous instrument turnover or if slower batch processing meets your daily needs.
Moving forward requires a methodical approach. Follow these specific steps to ensure your hardware perfectly matches your processing requirements.
Audit your specific loads. Document the exact types of instruments you process daily. Note whether they are wrapped, unwrapped, hollow, or solid. Count how many liquid cycles you run per week.
Review manufacturer IFUs. Check the official Instructions for Use (IFU) for your most complex medical devices. Many modern surgical instruments strictly mandate pre-vacuum cycles. Ignoring an IFU creates massive compliance liabilities.
Consult facility utility requirements. Examine your building's infrastructure. Ensure your plumbing, spatial footprint, and utility inputs can fully support the heavy vacuum pumps and steam generators required for active air removal.
Taking these steps guarantees a smooth integration process. You eliminate guesswork and align your operations with strict industry standards.
Choosing between gravity and pre-vacuum sterilization is never about which cycle is inherently superior. It is entirely about matching the mathematical and physical realities of steam penetration to your specific load type. Gravity cycles offer unmatched simplicity for liquids and flat instruments. Pre-vacuum cycles provide the aggressive, deep penetration required for wrapped packs and complex medical lumens.
Facility leaders must always prioritize absolute sterility compliance over simple hardware availability. You cannot safely process hollow surgical devices using passive air displacement. We strongly encourage readers to consult directly with a certified sterilization equipment specialist. They will help you evaluate your specific load data and facility utility constraints, ensuring your sterile processing department operates safely and efficiently.
A: Yes. Many modern horizontal and advanced tabletop units offer highly programmable cycles. This allows users to easily switch between gravity parameters for liquids and pre-vacuum parameters for wrapped goods on the exact same machine.
A: Ambient air pockets will remain permanently trapped inside the narrow lumens. Steam will never physically touch these internal surfaces. This results directly in non-sterile instruments and creates a severe patient infection risk.
A: No. Pre-vacuum cycles will cause liquids to boil over violently or explode out of their glass containers due to rapid pressure changes. Liquids strictly require a gravity cycle paired with a very slow exhaust phase for safety.
