HTS-B Table Top Autoclave Class B Series 12L 18L 23L Autoclave Dental Steam Sterilizer

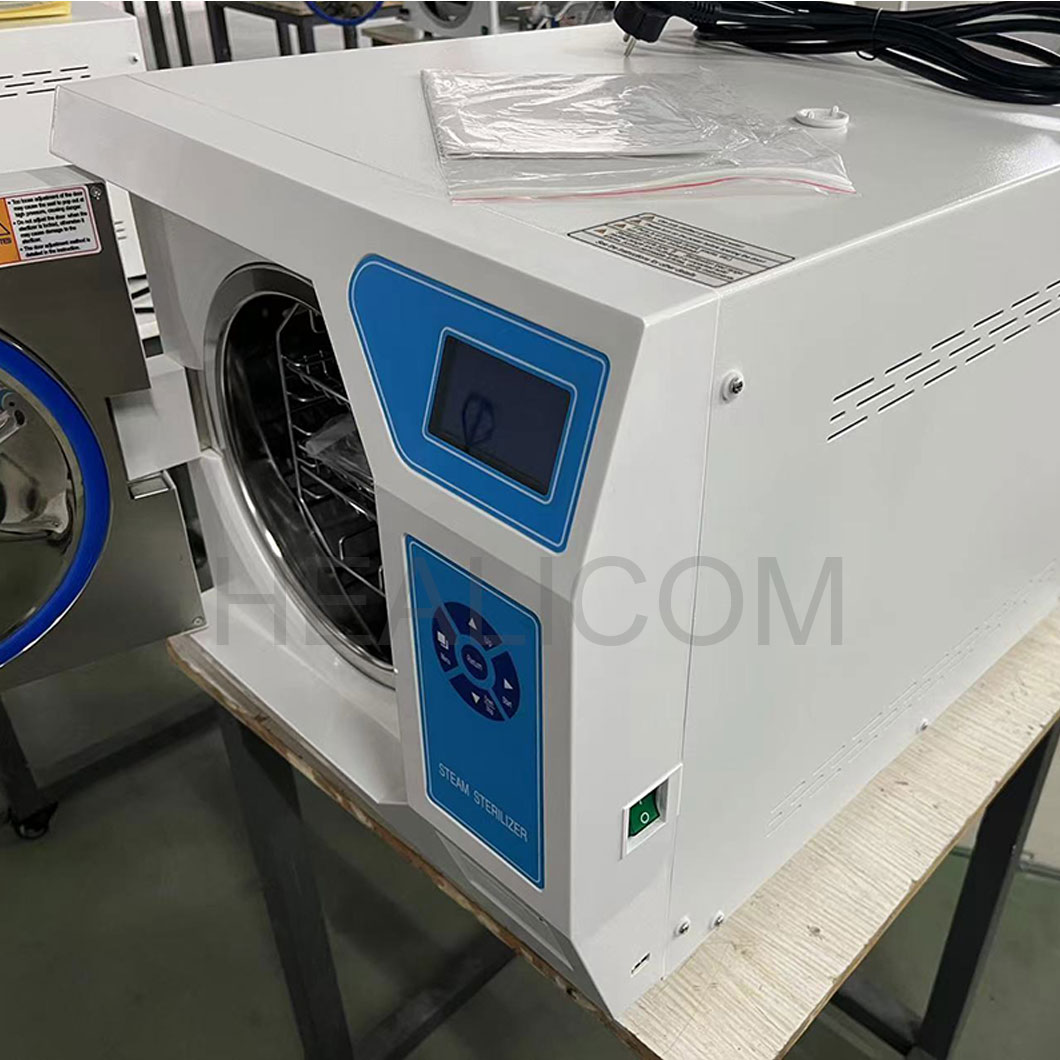

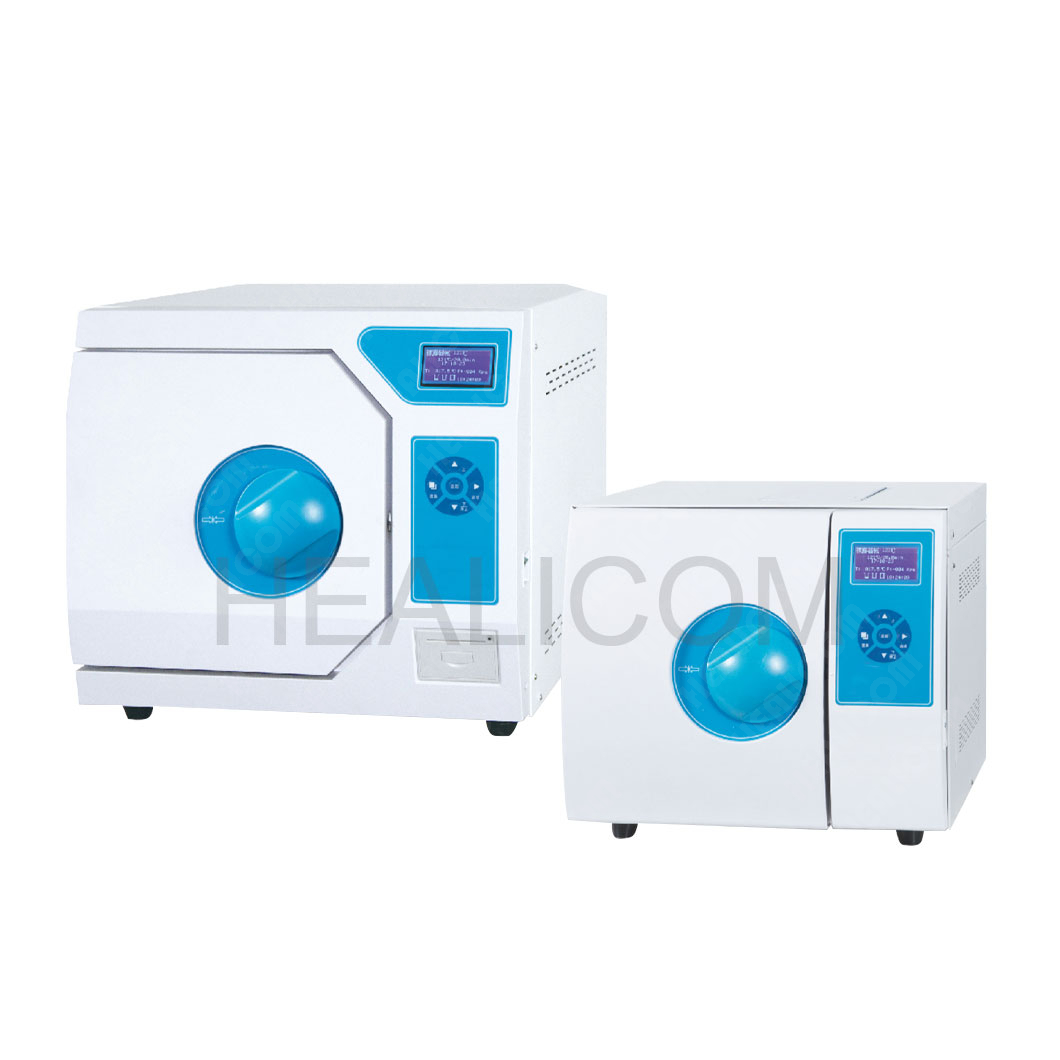

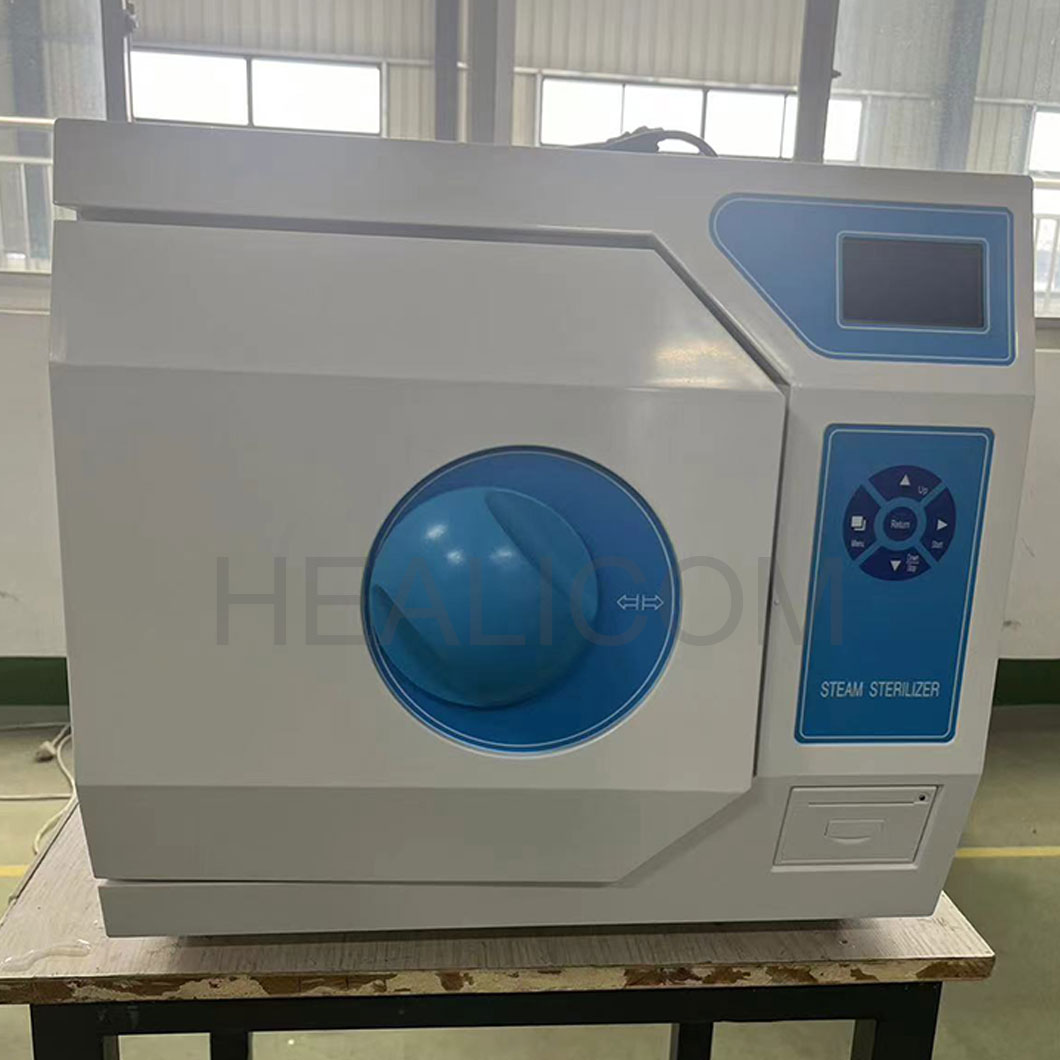

HTS-B Dental Class B Table Top Autoclave Sterilizer

Features

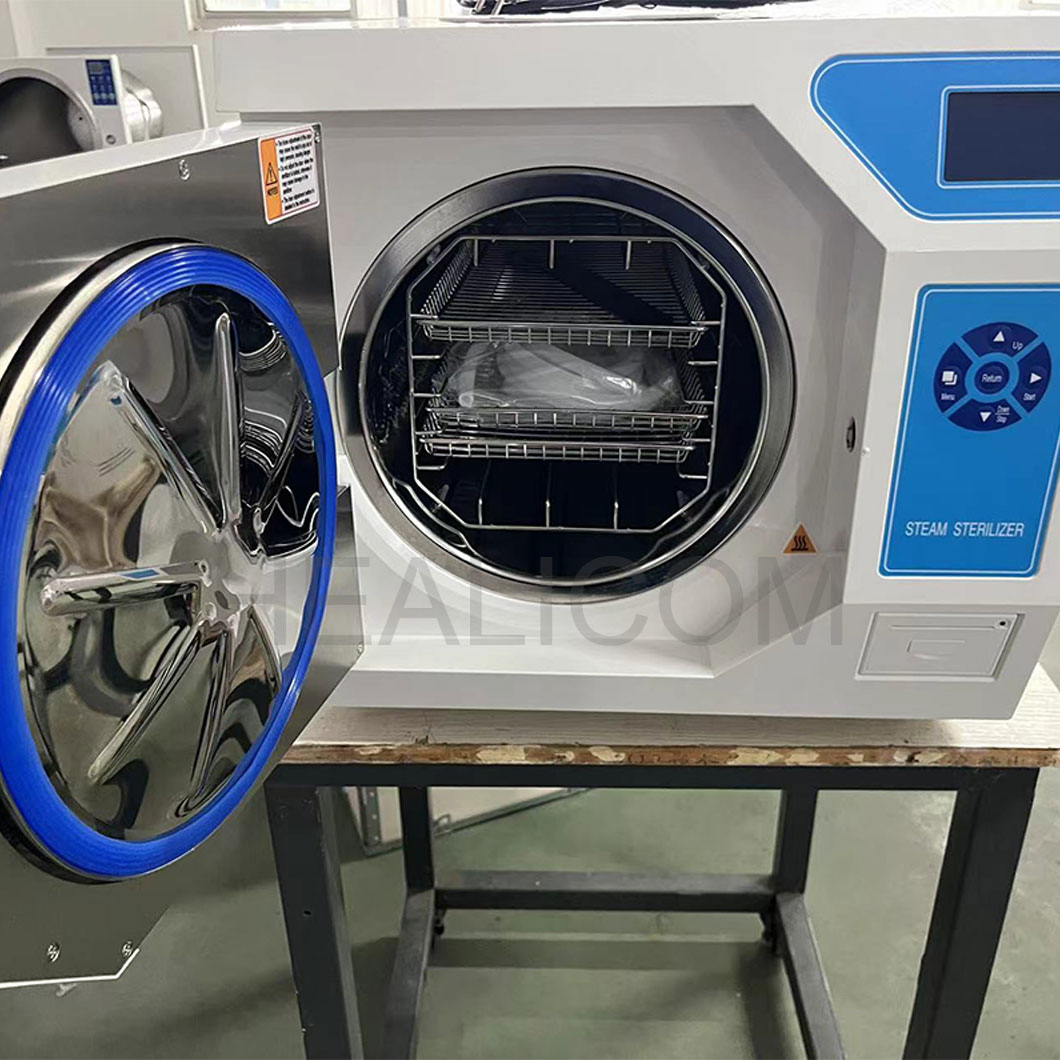

1. Robust and Hygienic Build：The device is outfitted with a high - grade stainless - steel inner tank and a sealed cover. This construction not only ensures long - lasting durability but also creates a hygienic environment, minimizing the risk of contamination during sterilization procedures.

2. Precision Microcomputer Control：A sophisticated microcomputer system takes charge of the entire operation, allowing for precise regulation of sterilization parameters. This ensures consistent and reliable results.

3. Enhanced Safety Features：Equipped with a safety interlocking device, it prevents accidental opening of the door during operation, safeguarding users from potential harm. The automatic protection functions, including over - temperature, over - pressure, low - water - level, anti - dry - burning, and safety door lock, provide comprehensive protection for both the device and the surrounding environment.

4. Convenient Operational Features：It has an automatic water - filling function, eliminating the need for manual refilling. The integrated drying function ensures that sterilized items are dry and ready for use. The three - times pre - vacuum process enhances the efficiency of the sterilization cycle by removing air more thoroughly.

5. Advanced Testing Capabilities：Capable of performing BD test, HELIX test, and VACUUM test, it allows for comprehensive verification of the sterilization process. This ensures that the device is operating at optimal levels and delivering effective sterilization.

6. User - Friendly Interface：The LCD display and touch buttons offer an intuitive and easy - to - use interface. Medical staff can quickly access and adjust settings, view sterilization progress, and monitor various parameters.

7. Standardized Connectivity：Featuring a standard test interface, it can be easily integrated with other medical equipment or testing systems, expanding its functionality in a clinical setup.

8. European Standard Compliance：Meeting the European CLASS B standard, it guarantees high - quality sterilization performance, aligning with international best practices.

9. Efficient Steam Generation：The built - in steam generator rapidly produces saturated steam, reducing the overall sterilization time and ensuring efficient operation.

10. Post - Sterilization Conveniences：After sterilization, a buzzer provides a clear reminder, and the device automatically stops. It also has the ability to automatically discharge cold air and exhaust steam, streamlining the post - sterilization process.

11. Data Management Features：Equipped with a printer, USB function, and U disk support, it enables easy recording and storage of sterilization data. This is crucial for maintaining accurate records and ensuring compliance with regulatory requirements.




    Technical parameter	HTS-12B	HTS-18B	HTS-23B
    Volume	12L	18L	23L
    Power	2KW	2KW	2KW
    Voltage	110V /220VG0Hz/50Hz
    Design pressure	0.25MPa
    Design temperature	139℃
    Rated working pressure	0.21MPa
    Rated working temperature	134℃
    Chamber volume	∅ 200x355	∅ 250x370	∅ 250x452
    Outer dimension	445x580x400	480x640x450	480x690x450
    Packing size(L x W x H)	650x500x450	720x560x510	760x560x510
    Gross/net weight	48/44kg	57/48kg	60/53kg
