HTS-Z 18L 23L 45L Benchtop Steam Sterilization Table Top Steam Sterilizer
You are here: Home » Products » Sterilizer » Table Top Autoclave Sterilizer » HTS-Z 18L 23L 45L Benchtop Steam Sterilization Table Top Steam Sterilizer

Category List

HTS-Z 18L 23L 45L Benchtop Steam Sterilization Table Top Steam Sterilizer

The HTS-Z Table Top Steam Sterilizer with a pulse - vacuum system is a top - tier device. It features an automatic door switch and water filling mechanism. Its stainless steel inner tank with a sealed cover ensures durability and hygiene. Microcomputer controlled, it has a safety interlocking device and drying function. Capable of multiple tests, it adheres to European CLASS B standard. With automatic protection, it offers a reliable and user friendly sterilization experience, complete with data - handling features.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HTS-Z

  • Healicom

Product Description

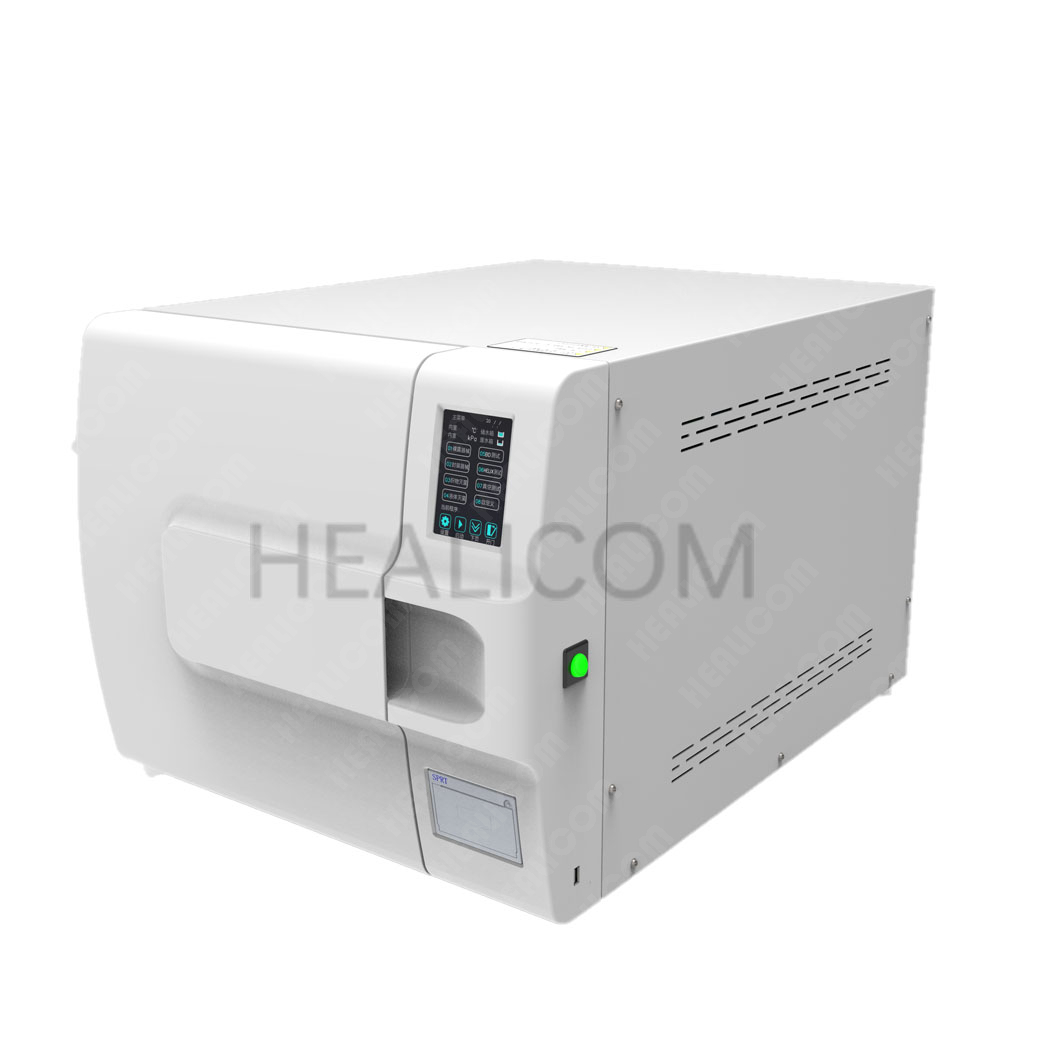

HTS-Z Table Top Steam Sterilizer With pulse-vacuum system

1

Features

  1. Convenience - Oriented Design

    • Automatic Door and Water System: The HTS - Z Table Top Steam Sterilizer features an automatic door switch, eliminating the need for manual opening and closing, which not only saves time but also reduces the risk of accidental exposure to hot steam. The automatic water - filling function ensures that the sterilizer is always ready for operation, without the hassle of manual refilling.

  2. Durability and Hygiene

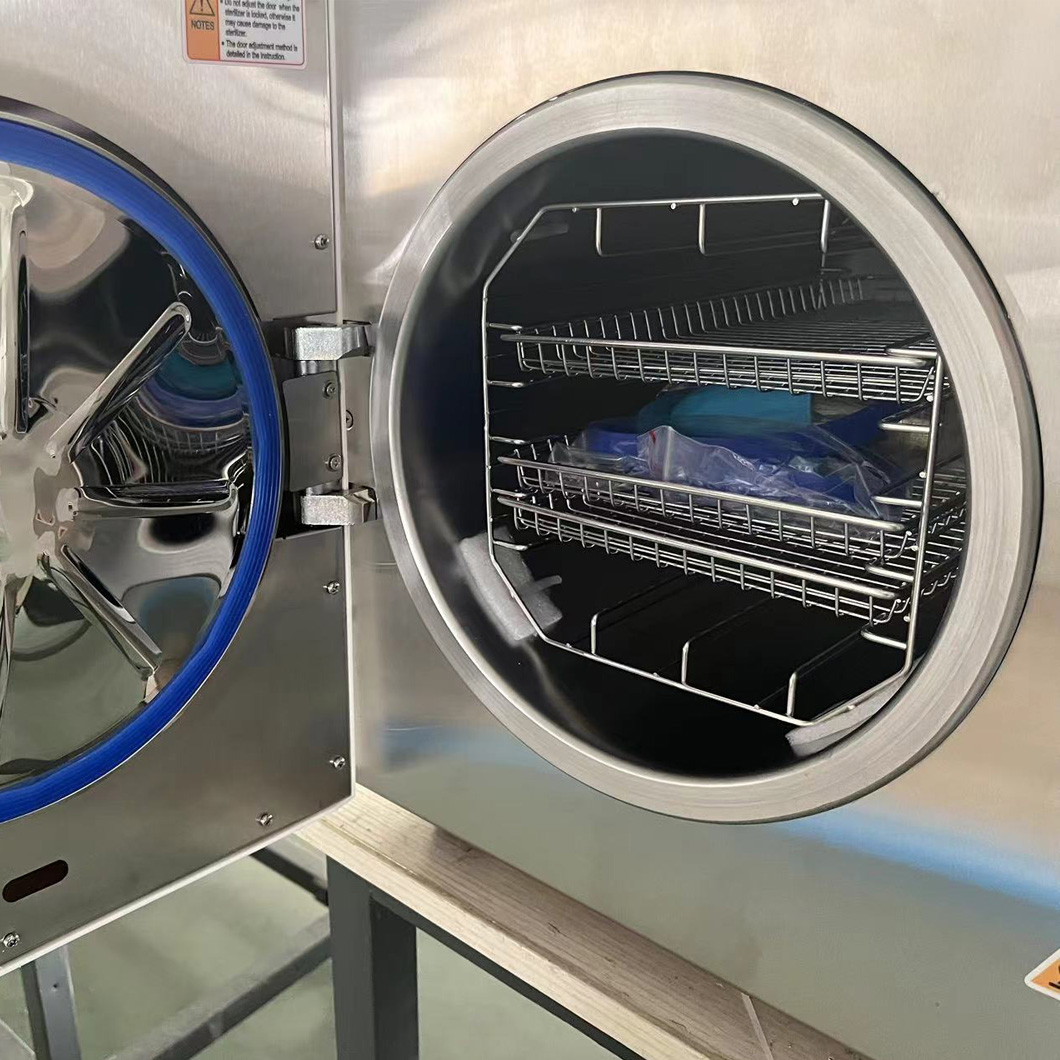

    • Stainless - Steel Construction: Its inner tank is crafted from high - quality stainless steel and comes with a sealed cover. This construction guarantees long - term durability and helps maintain a hygienic environment, preventing any contaminants from entering during the sterilization process.

  3. Precision Control

    • Microcomputer - Controlled Operation: A microcomputer is at the heart of this sterilizer, enabling precise control over all aspects of the sterilization cycle. It allows for accurate setting and monitoring of parameters such as temperature, pressure, and time.

  4. Safety First

    • Safety Interlocking and Protection: The safety interlocking device prevents the door from opening when the sterilizer is in operation, protecting users from potential burns. Multiple automatic protection functions, including over - temperature, over - pressure, low - water - level, anti - dry - burning, and safety door lock, ensure the safe and reliable operation of the device.

  5. Comprehensive Testing Capabilities

    • Advanced Testing Functions: It is equipped to perform BD test, HELIX test, and Vacuum test. These tests are crucial for verifying the effectiveness of the sterilization process, ensuring that the sterilizer meets the highest standards of performance.

  6. User - Friendly Interface

    • LED Display and Inductive Operation: The LED display provides clear and easy - to - read information about the sterilization process, such as temperature, pressure, and cycle progress. The inductive operation makes it simple for users to interact with the device, with just a touch to control various functions.

  7. Connectivity and Compliance

    • Standard Interface and European Standard: Equipped with a standard test interface, it can be easily integrated with other medical equipment or testing systems. Meeting the European CLASS B standard, it assures high - quality and reliable sterilization performance, in line with international norms.

  8. Efficient Sterilization Process

    • Steam Generation and Post - Cycle Features: The built - in steam generator quickly produces saturated steam, reducing the overall sterilization time. After sterilization, the automatic discharge of cold air and steam exhaust, along with a buzzer reminder and automatic stop, streamline the process. The drying function ensures that sterilized items are dry and ready for use.

  9. Data Management

    • Built - in Printer and Data Ports: With a built - in printer, USB function, and U disk support, it allows for easy recording and storage of sterilization data. This is essential for maintaining accurate records, quality control, and regulatory compliance.

Technical parameter
HTS-18Z
HTS-23Z
HTS-45Z
Volume
18L
23L
45L
Power
2kw
2kw
2.5kw
Voltage
110V/220V,60Hz/50Hz
Design pressure
0.25MPa
Design temperature
139℃
Rated working pressure
0.22MPa
Rated working temperature
134℃
Chamber volume
ø 250x370
ø250x470
ø316x615
Outer dimension
620x 505x450
505x710x450
657x870x575
Packing size(L x W x H)
670x560x510
760x560x510
980x750x630
Gross/net weight
62/53kg
65/58kg
142/105kg

2

3

4
