HS-V Large Capacity 150L 200L 300L Horizontal Autoclave Steam Sterilizer

The HS-V Horizontal Cylindrical Pressure Steam Sterilizer (with pulse-vacuum system) offers advanced sterilization with computer-controlled automatic cycles for ease of operation. It features a drying function, ideal for dressing drying, and includes over-temperature and over-pressure auto-protection for safety. The system automatically cuts off power, water, and triggers an alarm in case of low water levels. Constructed with a stainless steel chamber, it ensures durability and hygiene. Additionally, it comes equipped with a printer for documentation. Designed for efficiency and reliability, the HS-V is perfect for healthcare and laboratory settings, providing consistent and effective sterilization results.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HS-V

  • Healicom

Product Description

HS-V Horizontal Cylindrical Pressure Steam Sterilizer

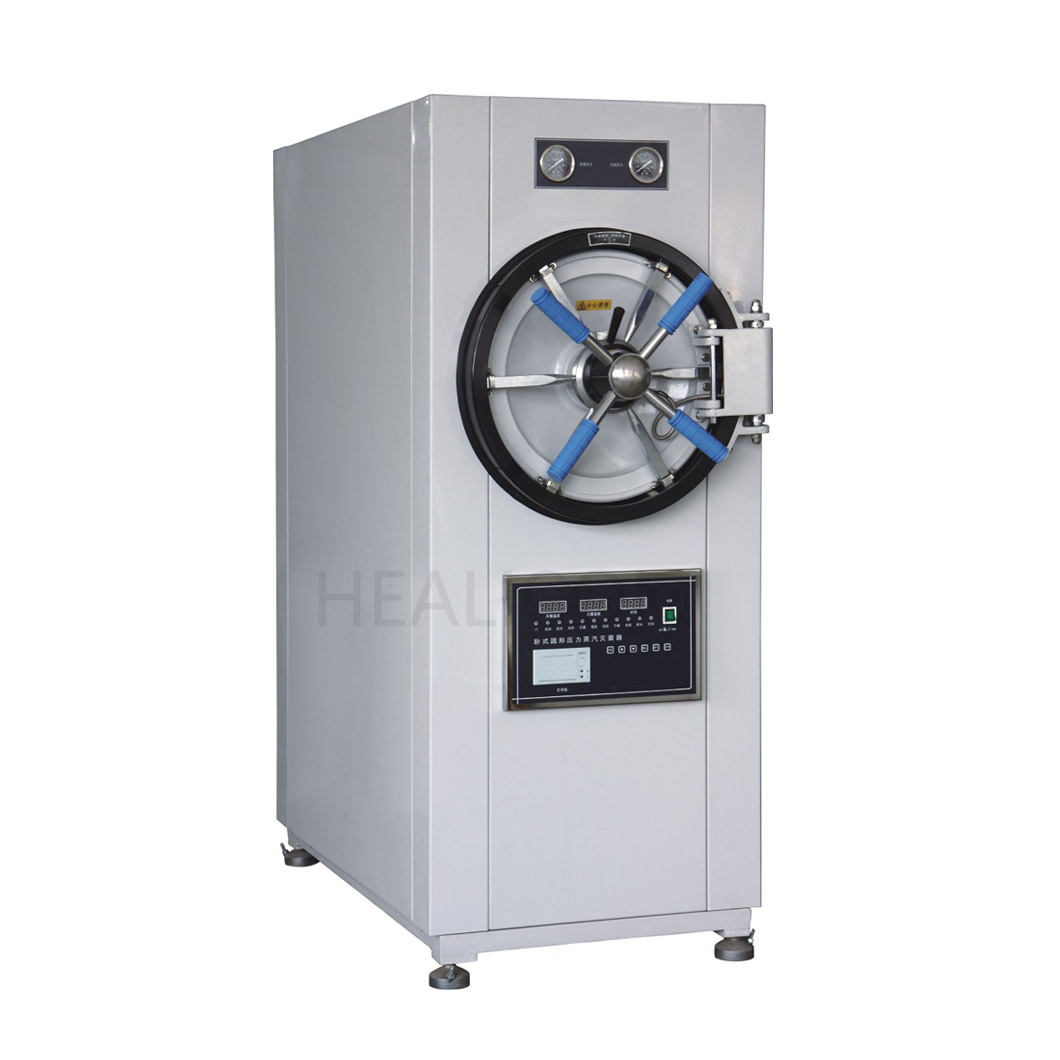

1h


Characteristics:

1.Sterilizing course automatic sterilization controlled by computer, easy to operate.

2.With drying function, suitable dressing drying.

3.With over-temperature, over-pressure auto-protect device.

4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.

6.The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.

7.The chamber of the sterilizer is made of stainless steel.

8.With printer.

9.With LCD display and water level indicate.

Technical data
HS-150V
HS-200V
HS-280V
Sterilizing chamber
volume
150L
φ440×1000mm
200L
φ515×1000mm
280L
Φ600×1000mm
working pressure
0.22 MPa
working temperature
134℃
Adjustment of temperature
40℃ - 134℃
Time of sterilization
0-99 min
Time of drying
0-99 min
Heat average
≤± 2℃
Power
9KW/380V 50Hz
9KW/380V 50Hz
12KW/380V 50Hz
Dimension
1400×650×1600
1400×750×1700
1520×910×1900mm
Transport dimension
1560×820×1820
1560×910×1880
1680×1080×2100mm
G.W/N.W
430/340 KG
436/350 KG
570/462kg

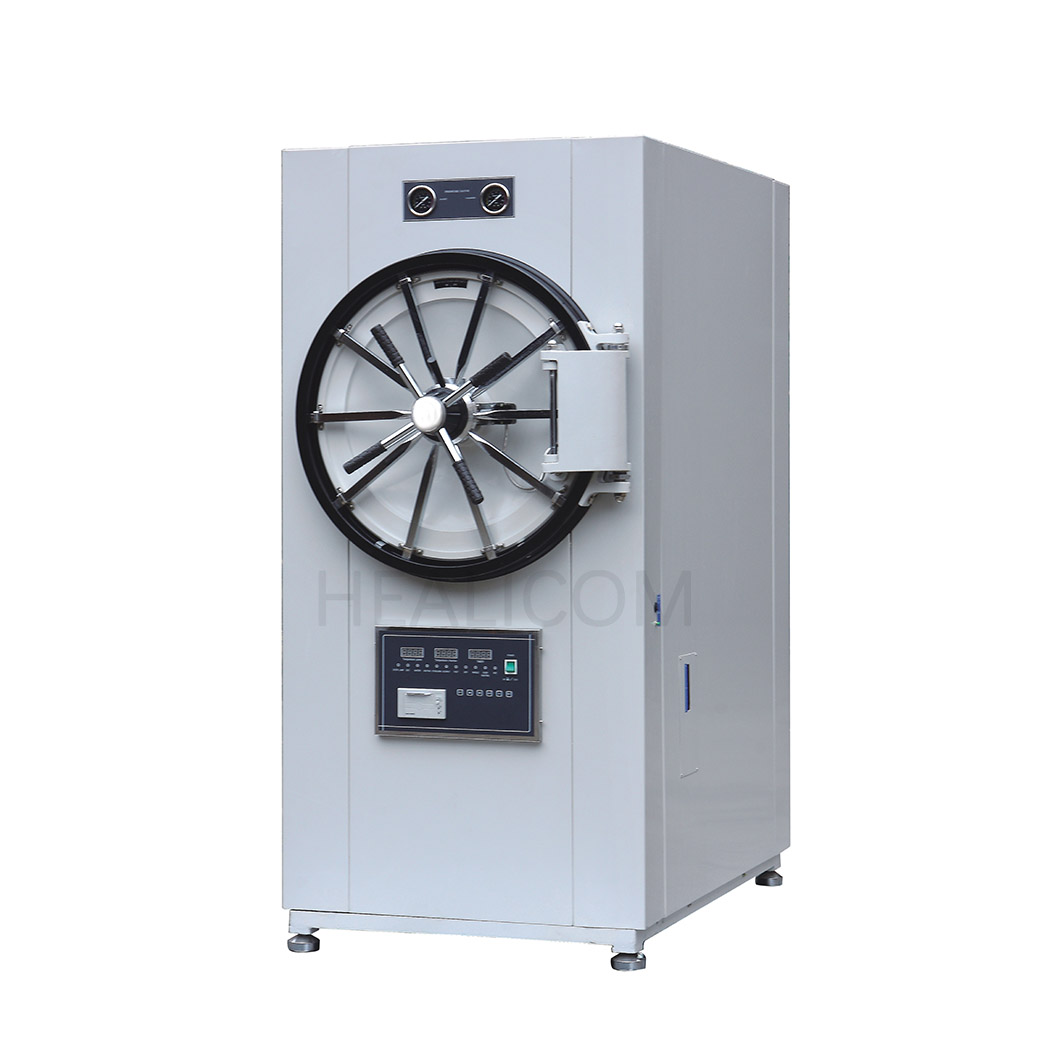

2h

ai (94)

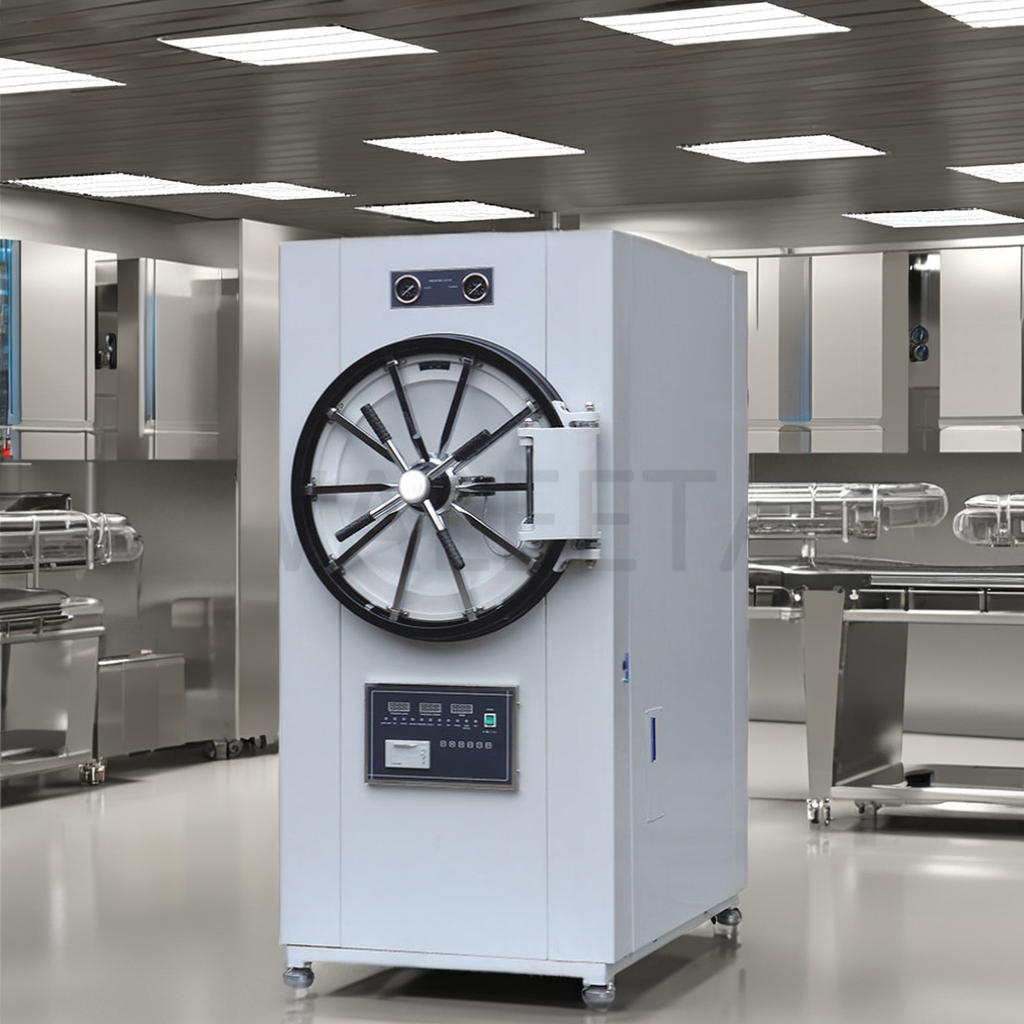

ai (95)

ai (96)

Company Profile


2025年2月24MIC详情页_01

2025年2月24MIC详情页_02

2025年2月24MIC详情页_03

2025年2月24MIC详情页_04

FAQ


1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.

2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.

3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.

4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.

5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
