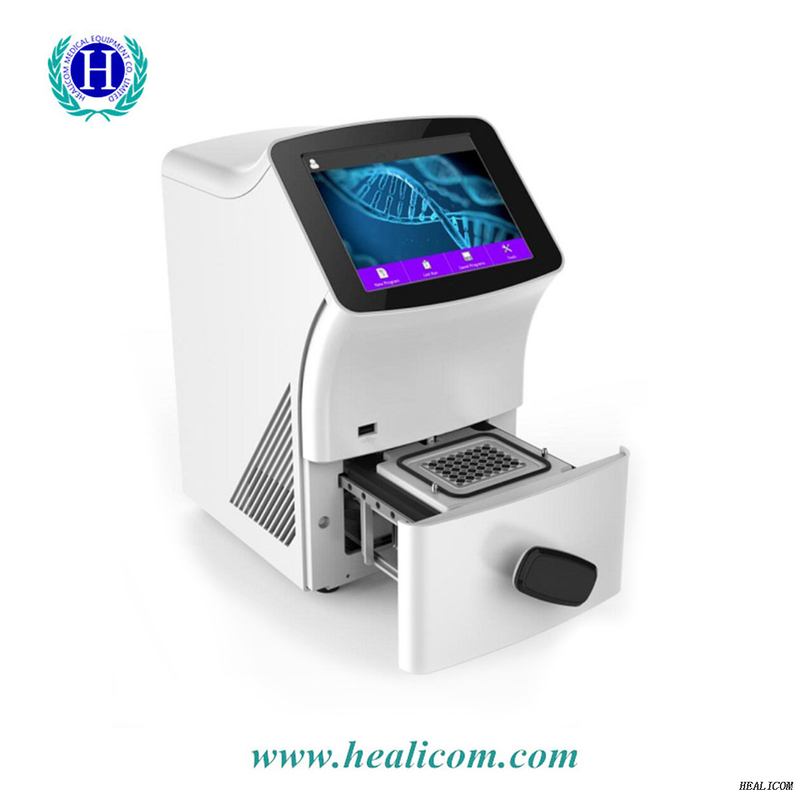

Portable Real Time H1000&H1000Fast Testing PCR Thermal Cycler

Availability:
Quantity:

PDF Export

  • H1000+
  • HQ1000

Product Description

In Stock Portable Real Time H1000&H1000+ Lab Fast Testing PCR Thermal Cycler Real Time PCR System

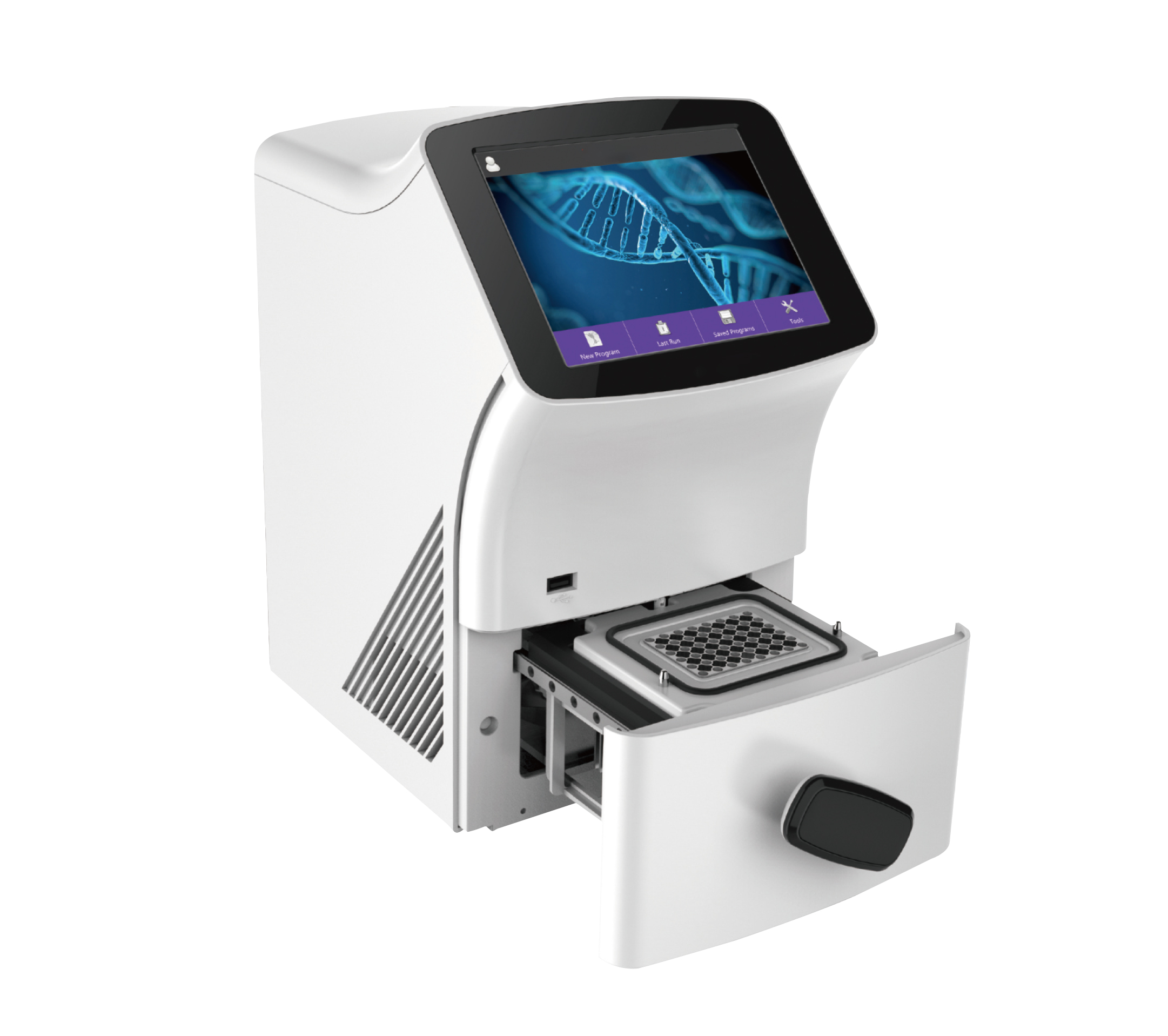

HQ1000 HQ100+ 主图

Main Advantages:

01 /The new powerful Peltier technology, fast ramping rate up to 79C/s.
02/Sample block capacity: 48 wells * 2/4 channels. White PCR tubes could be used. In quantitative PCR experiments, white tubes offer the highest sensitivity and shield background.
03/T-OpticalTM technology, reduce background noise, improve fluorescence signal sensitivity and signal to noise ratio.
04/Simultaneous detection of wells, not in sequence.
05/User could view qPCR process and run PCR protocol through self-contained 7" TFT LCD and touch screen.
06/Special designed optical system for qPCR, avoiding more moving parts problems like overheat, wear and off center. Not optical fiber based, avoiding break and block.
07/Long life LED lamps to excite fluorescence and detect with SSLPTM CCD imaging technology.
08/Sample wells with temperature gradient function, convenient to optimize PCR conditions.

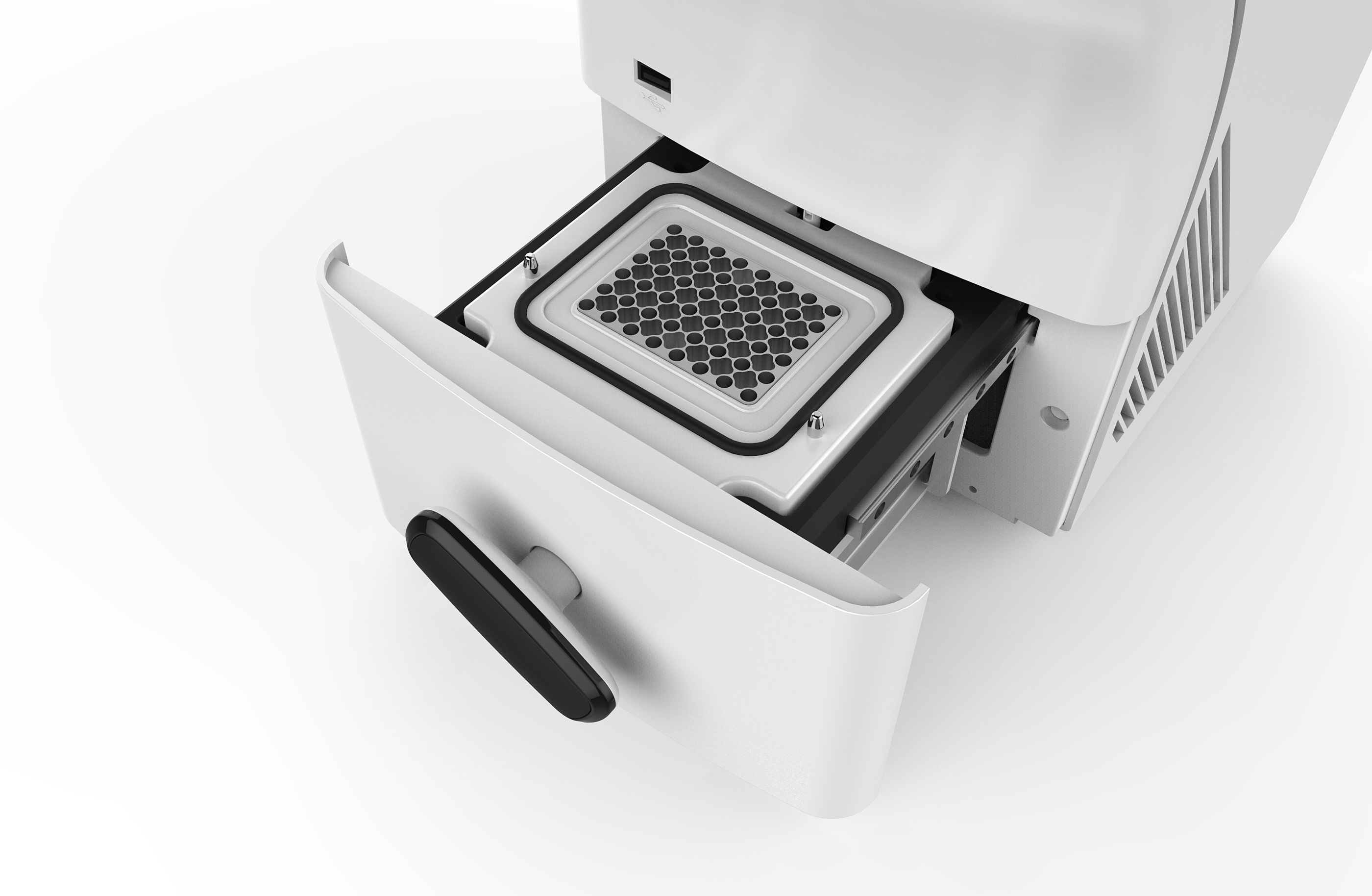

09/The drawer design of sample block, makes it easier to pick and place PCR tubes and plates.
10 / The PCR analysis software could be upgraded for free.

Model HQ1000 HQ1000+
   Instrument Performance
Sample Block Capacity   48 wells*0.1ml
Reaction Volum   10-50ul(recommend 20ul)
Heating and Cooling Technology   New powerful Peltier technology
Communications   USB2.0 or LAN
Display   7" Color TFT LCD and Touch Screen
Temperature
Block Temperature Range   0-105ºC
Max.Heating Rate   7ºC/S
Max.Colling Rate  5ºC/S
Temperature Uniformity   ≤±0.2ºC(at 90ºC)
Temperature Accuracy ≤±0.1ºC(10 seconds after reach 90ºC)
Display Resolution 0.1ºC
Heat Lid Temperature Range 30ºC~112ºC
Temperature Control Mode Block&Calculated sample
Fluorescence Detection
Excitation Long Life LED lamps
Detection CCDs
Sensitivity ≥1 copy
Suitable Fluorescent Dyes F1:FAM,SYBR,Green F2:VIC,HEX,JOE,CY3,NED F1: FAM,SYBR Green
F2: VIC,HEX,JOE,CY3,NED
F3: ROX,TEXAS -RED
F4: CY5

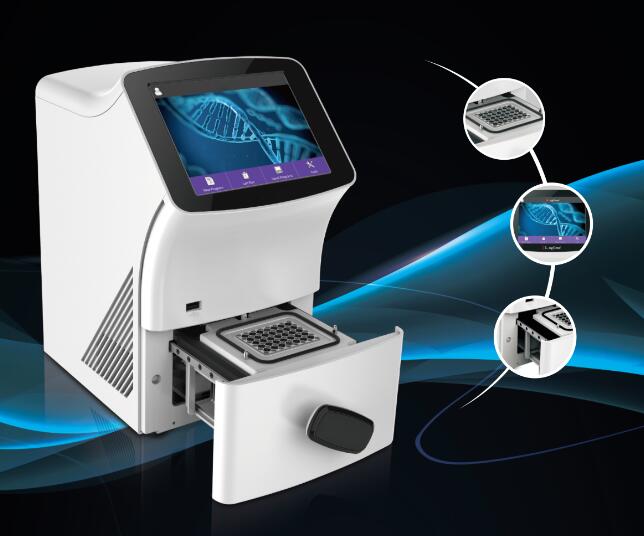

Product details:

QQ截图20200609151753

H1000+ 1

VU48QWBHD4BX5(JZSRJRKD

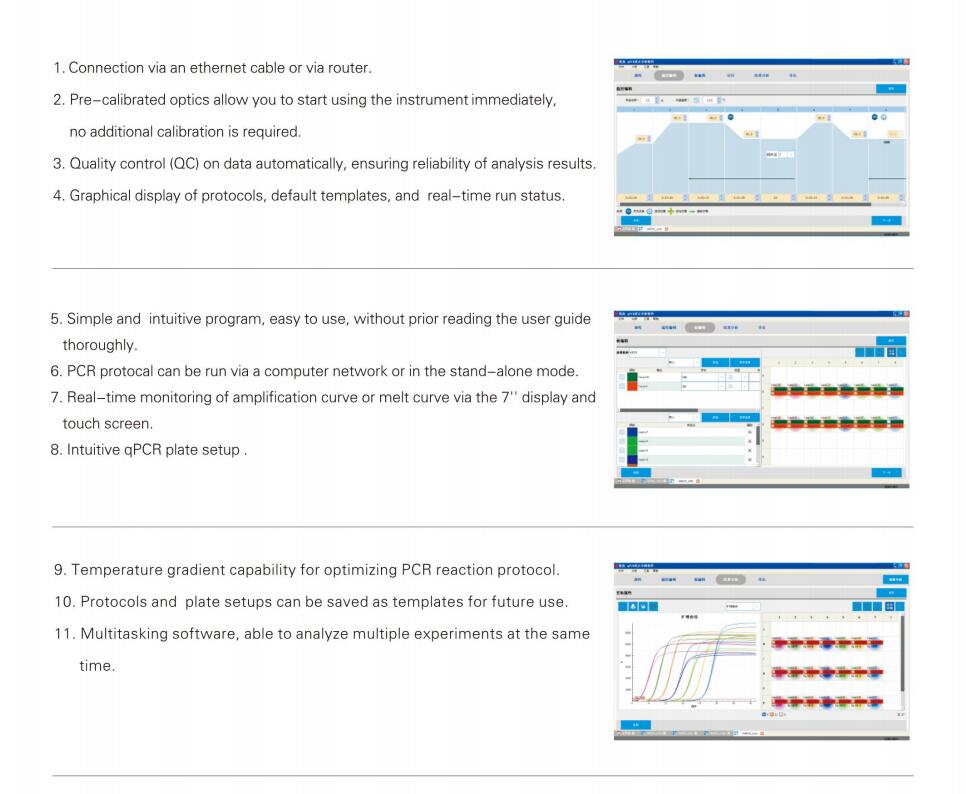

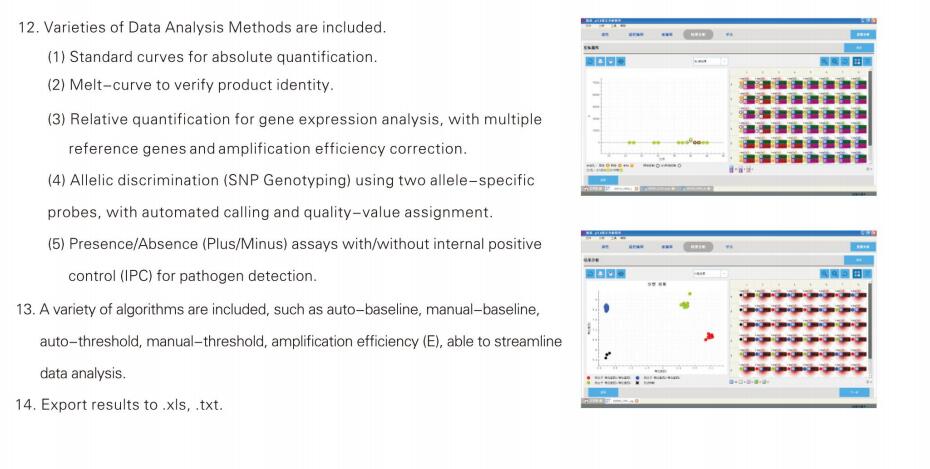

Software:

1-11

12-14

详情页+名片
