CMS5100
Healicom
Product Description

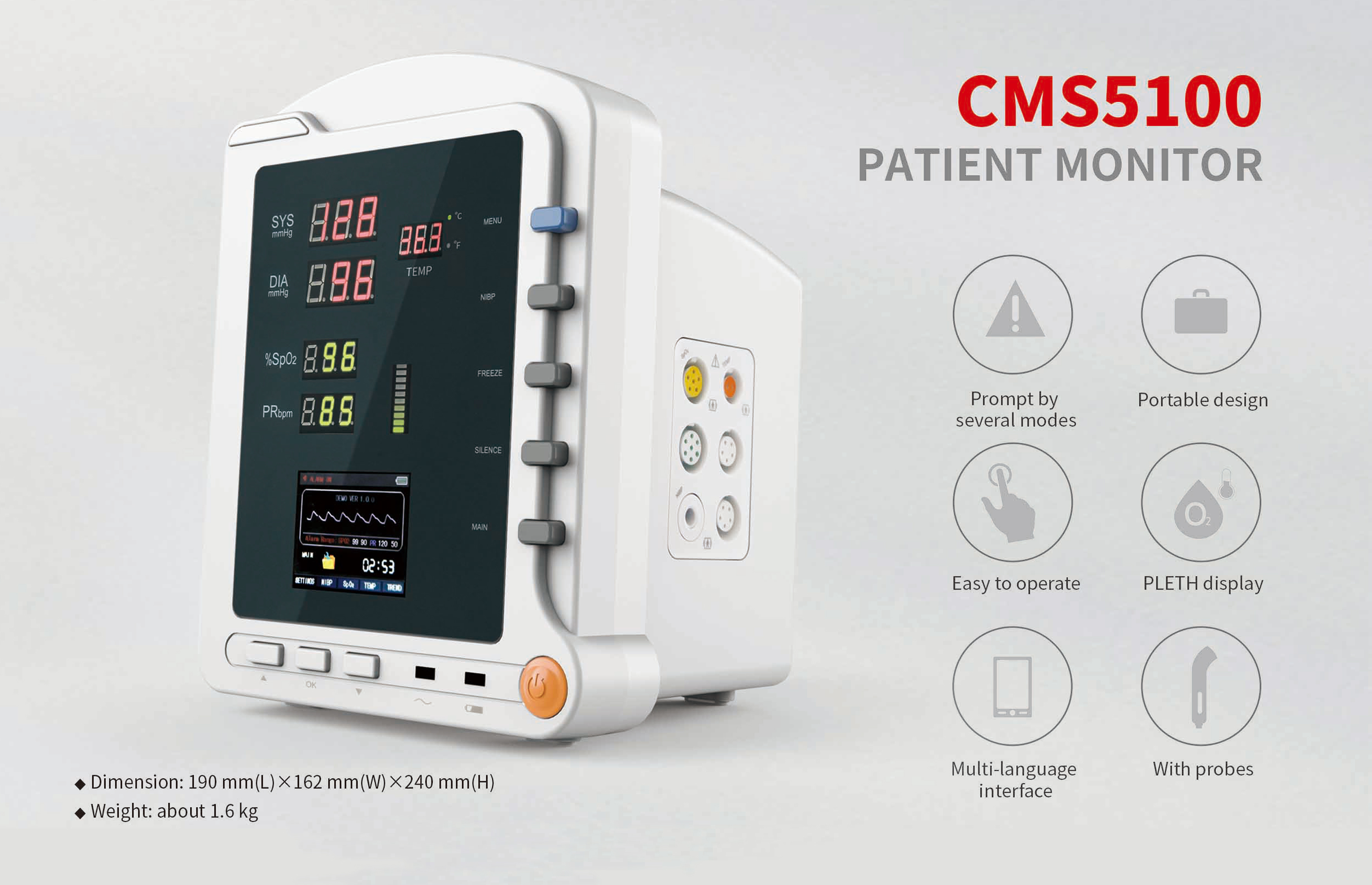

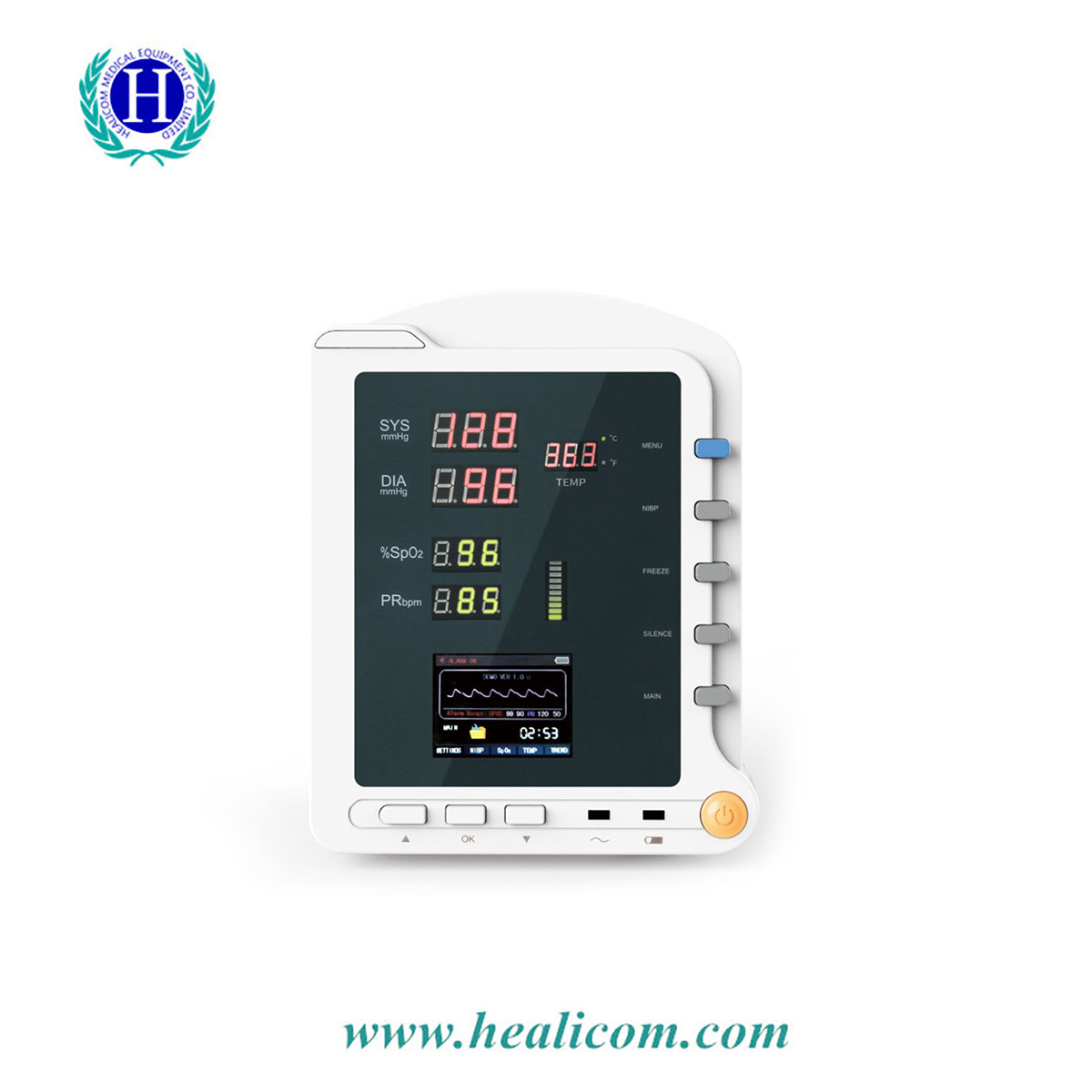

CMS5100 Patient Monitoris a feature-rich monitoring device that can be applied to adults, pediatric and neonate. User can choose differentmeasurement parameters according to different needs.The patient monitor can monitor NBP, spO2,PR and TEMP.lt integrates the functionof parameter measuring and displaying into a compact,lightweight patient monitor, which is suitable forall levels of hospitals, communitymedical and home use.
Features
1.Be applicable for NIBP,Spo, and TEMP monitoring of adult, pedi-atric and neonate of all ages, easy to operate, high cost-effective;
2.Be applicable for medicine,surgery, operating room, lcU/Ccu,emergency room, obstetrics and gynecology, pediatrics;
3.Compact and flexible appearance, easy for carrying and suitablefor indoor and outdoor (in ambulance) monitoring;
4.Built-in rechargeable lithium polymer battery, ensures uninter-rupted monitoring;
5.Perfect menu design, user-friendly interface;
6.Display the measurement result of sYS, DIA,TEMP,SpO,, PR andbar graph by the display screen of high-brightness digital tube;
7.2.8""(320×240) true color TFT LCD screen, displays the informa-tion of time, Spo, Plethysmogram, alarm condition, trend graph,list and system settings, etc.;
8.Visual and audible alarm for sYs, DIA,SpO,,PR and TEMP, andupper and lower limit of alarm can be set as necessary;
9.lndependent nonvolatile memory, storage for up to 2,000 groupsof NIBP data,7900 groups of TEMP data and 78,000 groups ofsp0, data;
10.Convenient and quick in reviewing measurement data, availablefor reviewing the NIBP trend graph of 24 hours,TEMP data of 24hours and Spo, trend graph of 22 hours.
Specification:
Dimension | 190mm(L)X162mm(W)X240mm(H) |
Weight | about 1.6kg |
