Medical Equipment Mini Portable 3L Electric Oxygen Concentrator/Generator Machine for Home Use And Hospital
You are here: Home » Products » Medical Equipment Mini Portable 3L Electric Oxygen Concentrator/Generator Machine for Home Use And Hospital

Category List

Medical Equipment Mini Portable 3L Electric Oxygen Concentrator/Generator Machine for Home Use And Hospital

Features
1. Adopting PSA physical method to produce oxygen, this oxygen gas generator is safe and economical.
2. The oxygen flow rate can be adjusted from 0L/min to 3L/min.
3. Our JAY-3 oxygen concentrator is equipped with a PLC display which can show the operating pressure, operating temperature, present working time, accumulated working time, preset time, etc.
4. Designed with timing function, the oxygen producing machine will stop working automatically when it reaches to the preset time.
5. Imported molecular sieve and humidification bottle (pressure relief valve value: 6spi) have been used in our products.
6. The OCSI (oxygen concentration status indicator) guarantees stable oxygen concentration and allows the user to use our oxygen generating equipment without any worries.
7. Our oxygen concentrator has alarm system for temperature, high/low pressure and power failure. The alarm system ensures safe machine operation.
Availability:
Quantity:

PDF Export

  • Jay-3
  • Healicom
  • 8419601100

Product Description

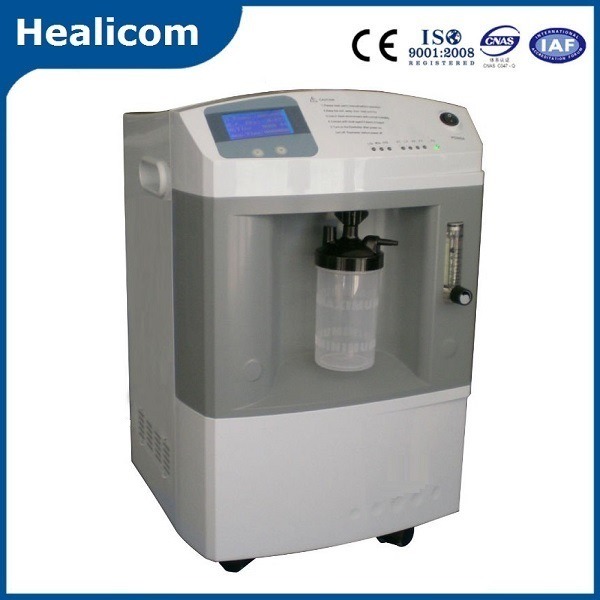

 Mini Portable 3L Electric Oxygen Concentrator/Generator Machine


Jay-3-Portable-Electric-Oxygen-Concentrator-Oxygen-3L-with-Great-Price

Introdction:
Our JAY-3 0-3L/min health care oxygen concentrator has light weight and is easy to use. After being connected to power, this oxygen equipment can produce oxygen quickly. This is a safe and trustworthy product with service life longer than 5 years.

Application:
Our economical oxygen concentrator is suitable for the home rehabilitation oxygen therapy for respiratory system diseases, cardio vascular and cerebral vascular system diseases and altitude sickness.

Feature:
1. Adopting PSA physical method to produce oxygen, this oxygen gas generator is safe and economical.
2. The oxygen flow rate can be adjusted from 0L/min to 3L/min.
3. Our JAY-3 oxygen concentrator is equipped with a PLC display which can show the operating pressure, operating temperature, present working time, accumulated working time, preset time, etc.
4. Designed with timing function, the oxygen producing machine will stop working automatically when it reaches to the preset time.
5. Imported molecular sieve and humidification bottle (pressure relief valve value: 6spi) have been used in our products.
6. The OCSI (oxygen concentration status indicator) guarantees stable oxygen concentration and allows the user to use our oxygen generating equipment without any worries.
7. Our oxygen concentrator has alarm system for temperature, high/low pressure and power failure. The alarm system ensures safe machine operation.

Specification:

Model JAY-3 JAY-5Q
Flow rate 0-3L/min 0-5L/min
Purity 93±3%
Outlet Pressure (Mpa) 0.04-0.07
Sound Level ≤38db ≤40db
Power AC220V±10%, 50/60±1Hz; AC110V±10%, 50/60±1Hz
Power Consumption ≤280W ≤350W
LCD display Switch time, operating pressure, present working time, accumulating time and presetting timing from 10mins to 40hours
Alarm Power failure alarm, High & Low pressure alarm
Net Weight 14Kgs 16Kgs
Size (mm) 320×360×600mm


These type has updates new shell. Theirs Model are Jay-3AW and Jay-3BW.Their prices are the same.

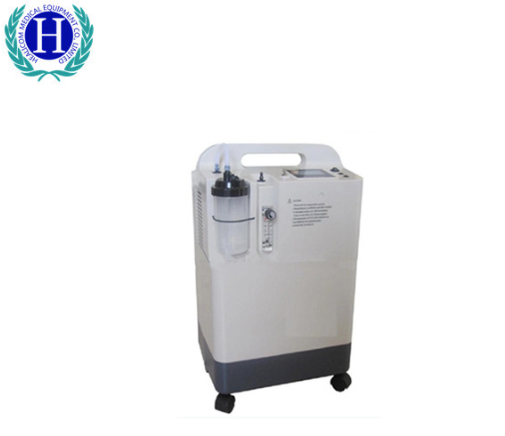

Jay-3BW

QQtupian20190222105645

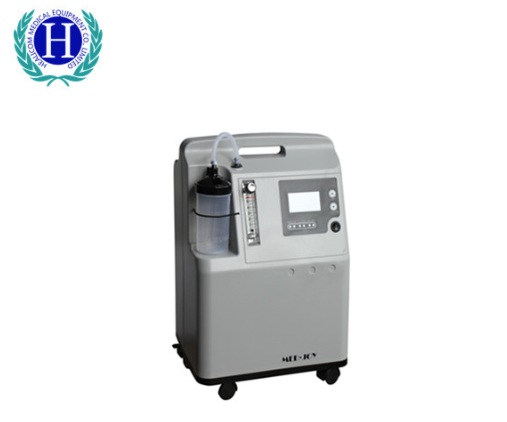

Jay-3AW

QQtupian20190222105900

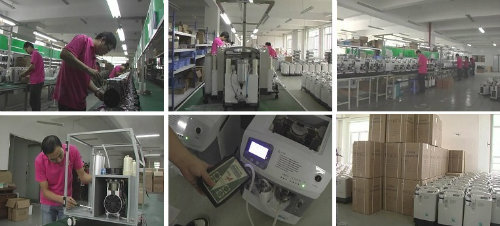

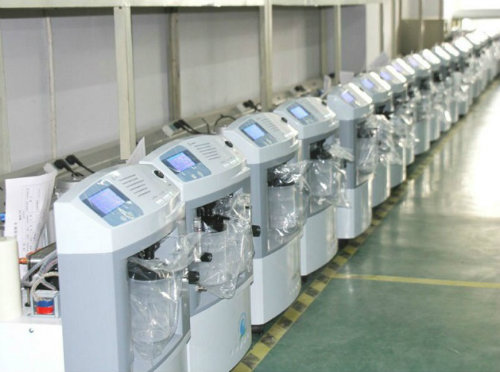

Our workshop:


image (1)
