Product Description

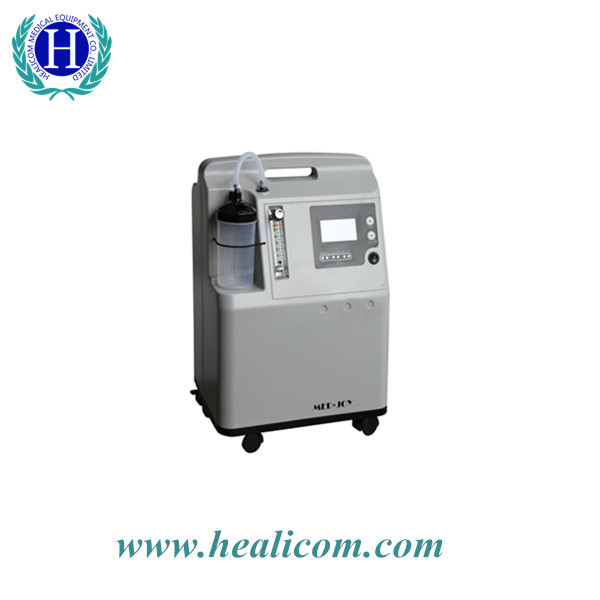

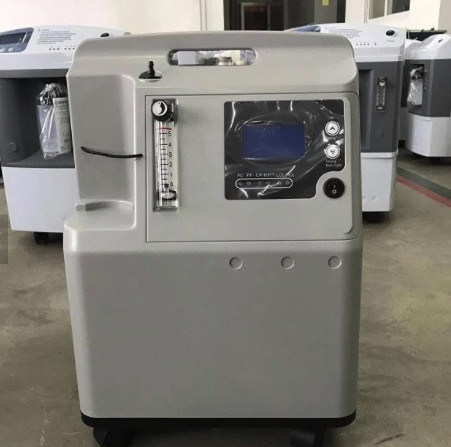

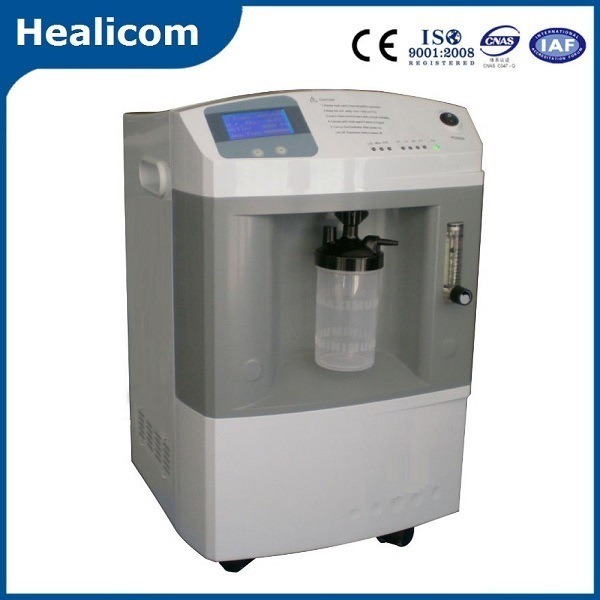

3L Electric Mini Portable Oxygen Concentrator /Generator Machine
Introdction:
Our JAY-3 0-3L/min health care oxygen concentrator has light weight and is easy to use. After being connected to power, this oxygen equipment can produce oxygen quickly. This is a safe and trustworthy product with service life longer than 5 years.
Application:
Our economical oxygen concentrator is suitable for the home rehabilitation oxygen therapy for respiratory system diseases, cardio vascular and cerebral vascular system diseases and altitude sickness.
Feature:
1. Adopting PSA physical method to produce oxygen, this oxygen gas generator is safe and economical.
2. The oxygen flow rate can be adjusted from 0L/min to 3L/min.
3. Our JAY-3 oxygen concentrator is equipped with a PLC display which can show the operating pressure, operating temperature, present working time, accumulated working time, preset time, etc.
4. Designed with timing function, the oxygen producing machine will stop working automatically when it reaches to the preset time.
5. Imported molecular sieve and humidification bottle (pressure relief valve value: 6spi) have been used in our products.
6. The OCSI (oxygen concentration status indicator) guarantees stable oxygen concentration and allows the user to use our oxygen generating equipment without any worries.
7. Our oxygen concentrator has alarm system for temperature, high/low pressure and power failure. The alarm system ensures safe machine operation.
Specification:
| Model | JAY-3AW | JAY-5Q |
| Flow rate | 0-3L/min | 0-5L/min |
| Purity | 93±3% | |
| Outlet Pressure (Mpa) | 0.04-0.07 | |
| Sound Level | ≤38db | ≤40db |
| Power | AC220V±10%, 50/60±1Hz; AC110V±10%, 50/60±1Hz | |
| Power Consumption | ≤280W | ≤350W |
| LCD display | Switch time, operating pressure, present working time, accumulating time and presetting timing from 10mins to 40hours | |
| Alarm | Power failure alarm, High & Low pressure alarm | |
| Net Weight | 14Kgs | 16Kgs |
| Size (mm) | 320×360×600mm | |
These type has other kinds of shell. Theirs Model are Jay-3 and Jay-3BW.Their prices are the same.

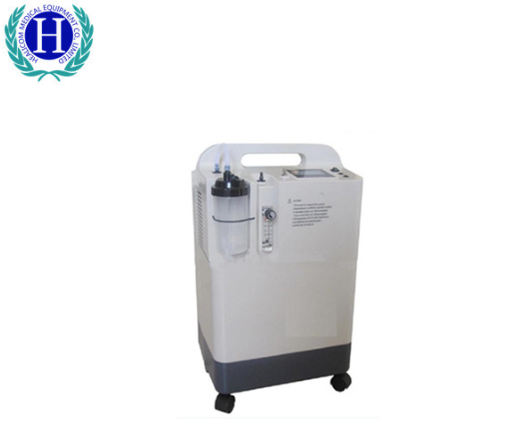

Jay-3BW
Jay-3

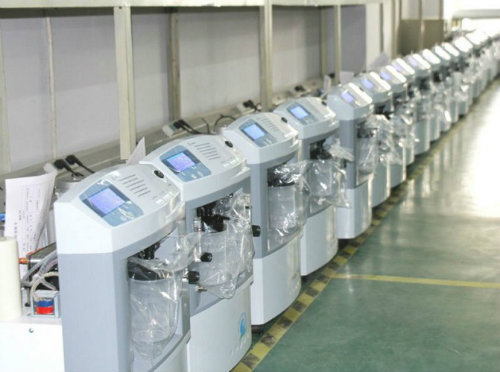

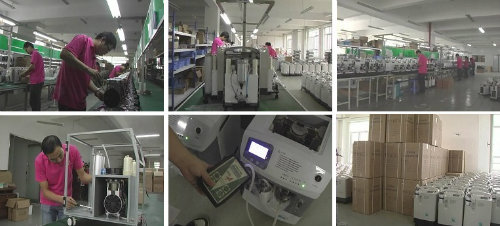

Our workshop:
