Product Description

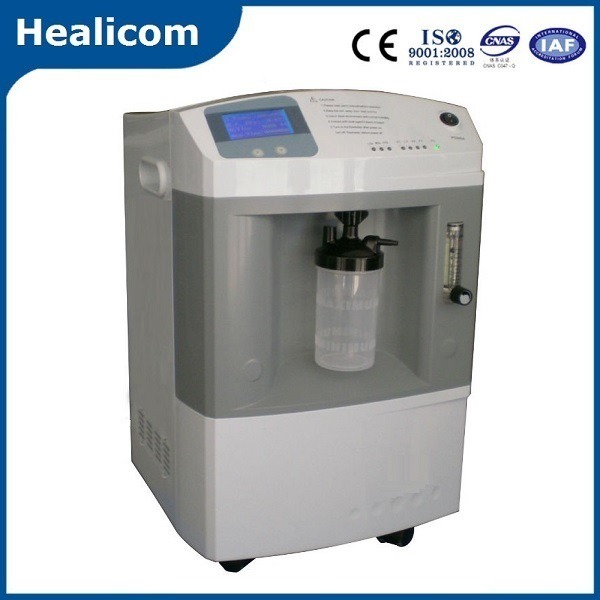

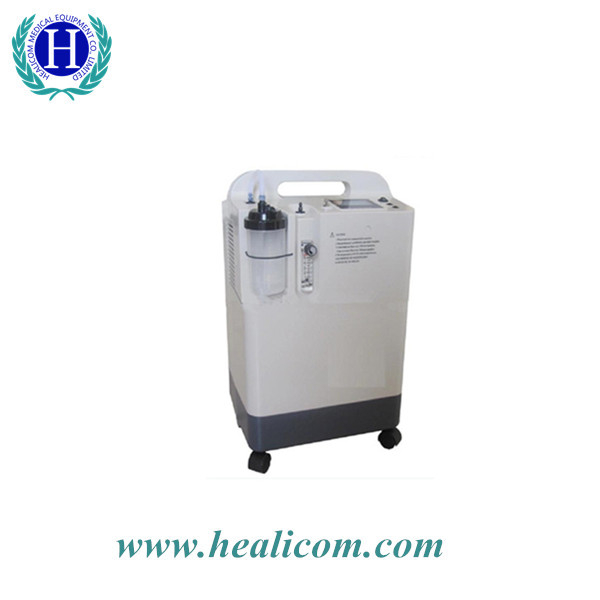

Hospital Medical 3L Electric Mini Portable Oxygen Concentrator /Generator Machine With Best Price

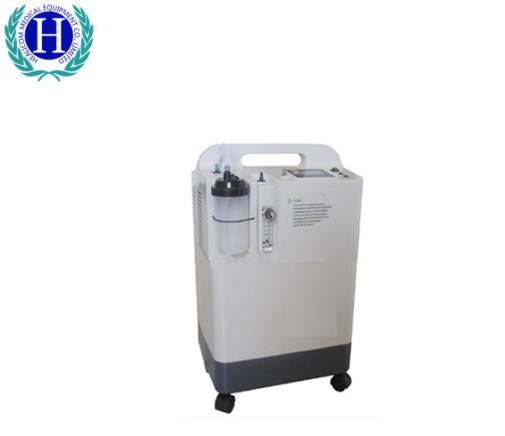

QQtupian20190222105645

Introdction:
Our JAY-3 0-3L/min health care oxygen concentrator has light weight and is easy to use. After being connected to power, this oxygen equipment can produce oxygen quickly. This is a safe and trustworthy product with service life longer than 5 years.

Application:
Our economical oxygen concentrator is suitable for the home rehabilitation oxygen therapy for respiratory system diseases, cardio vascular and cerebral vascular system diseases and altitude sickness.

Feature:
1. Adopting PSA physical method to produce oxygen, this oxygen gas generator is safe and economical.
2. The oxygen flow rate can be adjusted from 0L/min to 3L/min.
3. Our JAY-3 oxygen concentrator is equipped with a PLC display which can show the operating pressure, operating temperature, present working time, accumulated working time, preset time, etc.
4. Designed with timing function, the oxygen producing machine will stop working automatically when it reaches to the preset time.
5. Imported molecular sieve and humidification bottle (pressure relief valve value: 6spi) have been used in our products.
6. The OCSI (oxygen concentration status indicator) guarantees stable oxygen concentration and allows the user to use our oxygen generating equipment without any worries.
7. Our oxygen concentrator has alarm system for temperature, high/low pressure and power failure. The alarm system ensures safe machine operation.

Specification:

Model

JAY-3BW

JAY-5BW

Flow rate

0-3L/min

0-5L/min

Purity

93±3%

Outlet Pressure (Mpa)

0.04-0.07

Sound Level

≤43db

≤43db

Power

AC220V±10%, 50/60±1Hz; AC110V±10%, 50/60±1Hz

Power Consumption

≤300W

≤400W

LCD display

Switch time, operating pressure, present working time, accumulating time and presetting timing from 10mins to 40hours

Alarm

Power failure alarm, High & Low pressure alarm

Net Weight

16Kgs

23Kgs

Size (mm)

360×300×600mm

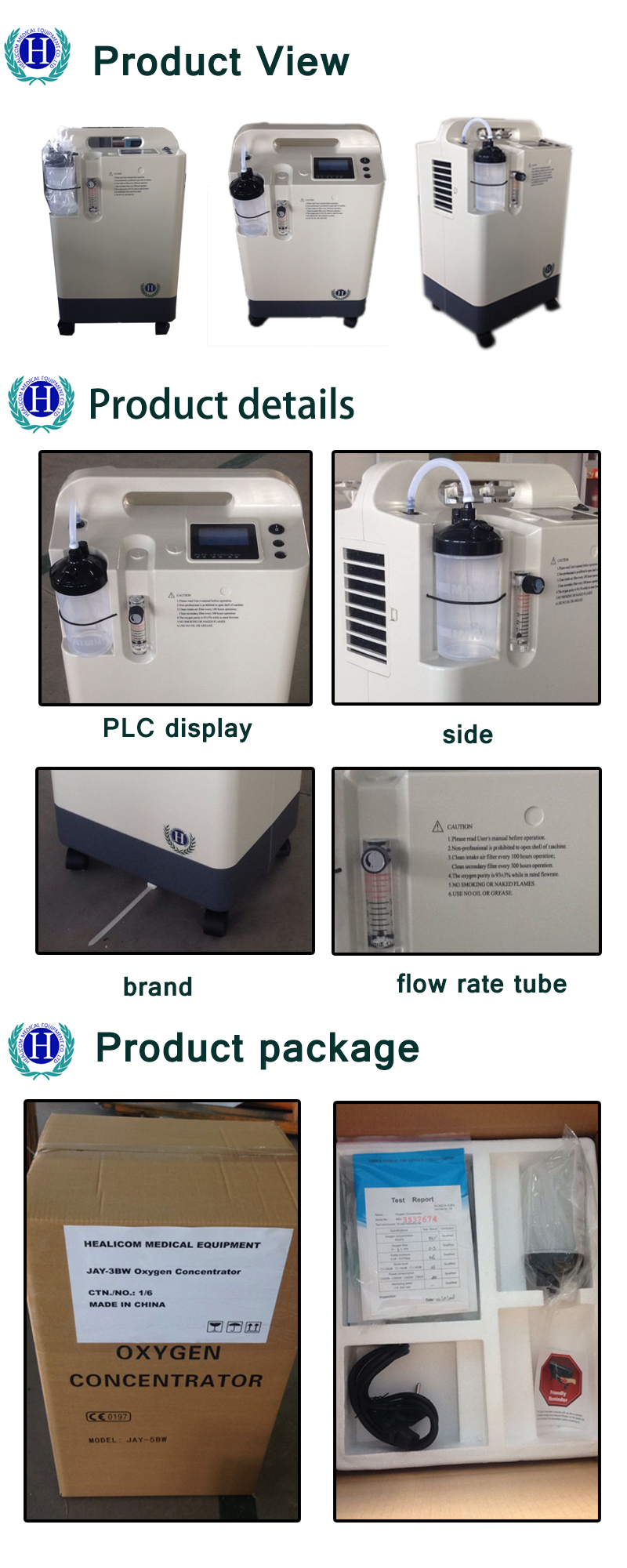

未标题-2

These type has other kinds of shell. Theirs Model are Jay-3 and Jay-3AW.Their prices are the same.
Jay-3AW

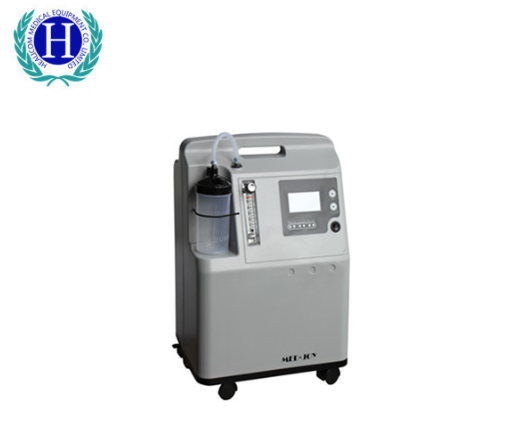

QQtupian20190222105900

JAY-3

Jay-3-Portable-Electric-Oxygen-Concentrator-Oxygen-3L-with-Great-Price

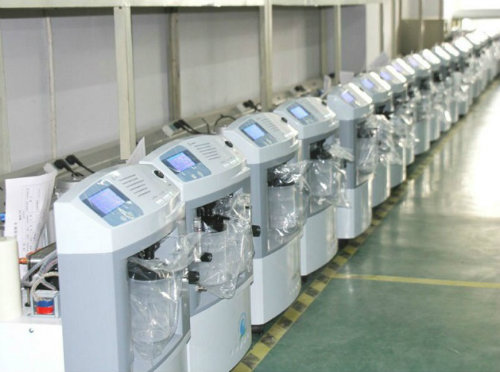

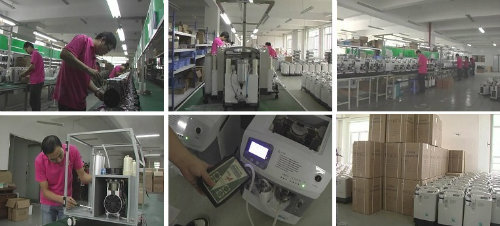

Our workshop:

image (1)
