Product Description

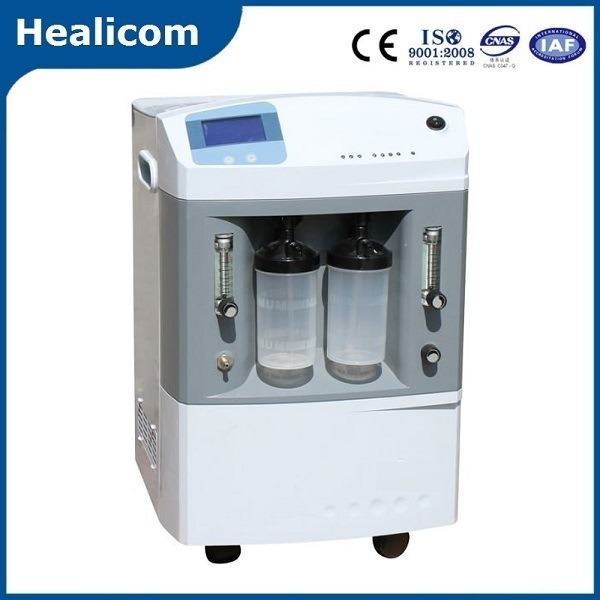

Double Flow 8L Oxygen Concentrator/Generator Machine
Features:
1.PSA (Pressure Swing Adsorption) technology
2.Adjustable flow rate
3.Large LCD display for switch time, operating pressure, present working time, accumulating time and presetting timing from 10mins to 40hours.
4.Available for 1-2 persons at the same time.
5.Maintenance reminding.
Specification:
| Model | JAY-5 | JAY-8 | JAY-10 |
| Flow rate | 0-5L/min | 0-8L/min | 0-10L/min |
| Purity | 93±3% | ||
| Outlet Pressure (Mpa) | 0.04-0.07 | ||
| Sound Level | ≤50db | ||
| Power | AC220V±10%, 50/60±1Hz; AC110V±10%, 50/60±1Hz | ||
| Power Consumption | ≤480W | ≤480W | ≤550W |
| LCD display | Switch time, operating pressure, present working time, accumulating time and presetting timing from 10mins to 40hours | ||
| Alarm | Power failure alarm, High & Low pressure alarm | ||
| Net Weight | 25Kgs | 27Kgs | 28Kgs |
| Size (mm) | 365×375×600mm | ||
| OPTIONAL | |||
| *Nebulizer *Low purity alarm: when oxygen purity is above 82%, it will give green light; when the purity is blow 82%( 82% not included), it will give red light *Maintenance alarm: alarm for maintenance after 3000 hours operation *Alarm for high temperature inside systems above 50°C *Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site. *Small LCD display: accumulating time; present working time presetting time. *Double flow. | |||

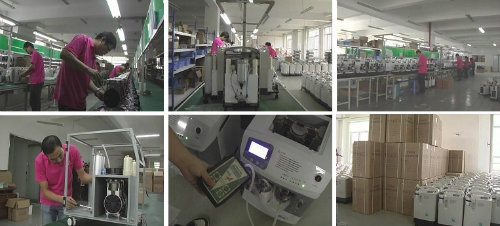

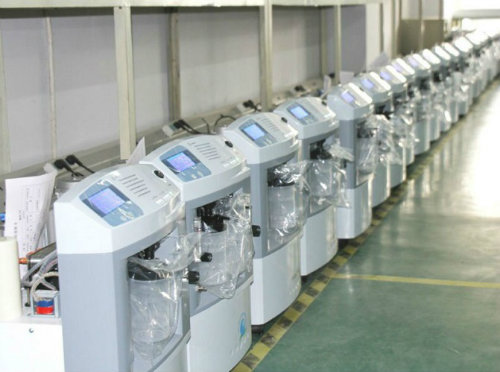

Our Workshop:
