HV-6
Healicom
9018909000
Product Description

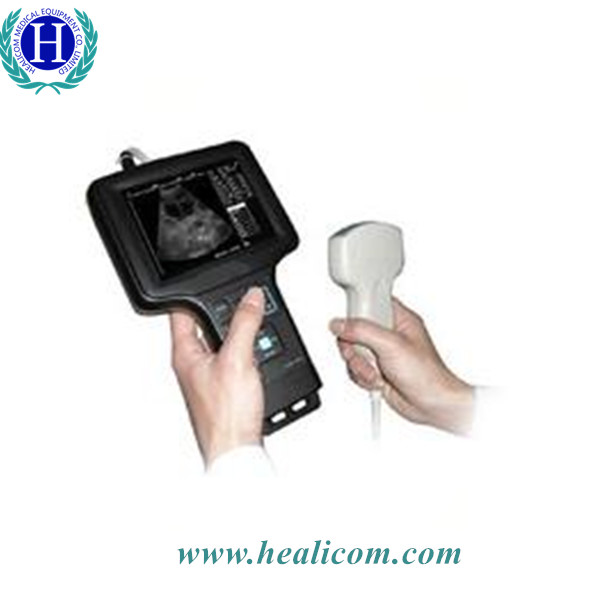

Medical Diagnostic Equipment 5.6 Inch Portable Vet Ultrasound Scanner for Animals
Specifications:
1. Display screen: 5.6" TFT color screen
2. Scanning manner: Electronic convex array, electronic linear array
3. Working frequency: 2.0MHz~10MHz
4. Display mode: B, B+B
5. Scanning range: Convex array 60°~150°
6. Amplification factor:1.0, 1.2, 1.5,2.0
7. Image processing: 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc
8. Conventional measurements: distance, perimeter, area, volume
9. Obstetric measurement: horses, cattle, sheep, dogs, cats obstetric measurement
10. Image gray-scale: 256 levels
11. Scanning line number: 512 lines/frame
12. Frame rate: 30 frames/second
13. Digital scanning conversion: 512×512×8 bits
14. Battery capacity: 3000mAH/7.4V, can work more than 2 hours
15. Memory capacity: 8GB, can optional to 32GB
16. Report function: auto make report
17. Output interface: USB port, video.
18. Overall size: 225mm×145mm×25mm
19. Weight: 900g(with battery)
20. Waterproof: IP65
Specifications:
| Display screen | 5.6" TFT color screen |
| Scanning manner | Electronic convex array, electronic linear array |
| Working frequency | 2.0MHz~10MHz |
| Display mode | B, B+B |
| Scanning range | Convex array 60°~150° |
| Amplification factor | 1.0, 1.2, 1.5,2.0 |
| Image processing | 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc |
| Conventional measurements | Distance, perimeter, area, volume |
| Obstetric measurement | horses, cattle, sheep, dogs, cats obstetric measurement |
| Image gray-scale | 256 levels |
| Scanning line number | 512 lines/frame |
| Frame rate | 30 frames/second |
| Digital scanning conversion | 512×512×8 bits |
| Battery capacity: | 3000mAH/7.4V, can work more than 2 hours |
| Memory capacity | 8GB, can optional to 32GB |
| Report function | Auto make report |
| Output interface | USB port, video. |
| Overall size | 225mm×145mm×25mm |
| Weight | 900g(with battery) |
| Waterproof | IP65 |
Configuration:
| Standard Configuration | Optional Configuration |
| Host | Extra battery |
| convex probe | Larger storage |
| built-in battery | Can customized to with linear probe |
| power adapter | Micro-convex probe |
| bag | Rectal probe |
| / | Backfat probe |
