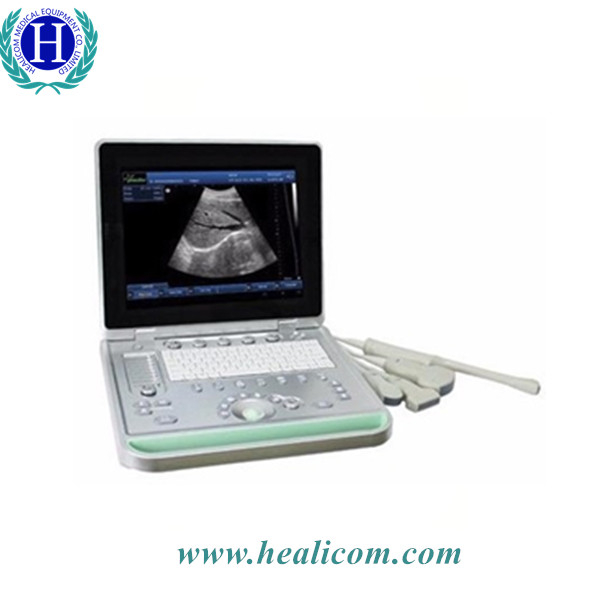

HV-9 Portable Laptop Veterinary Ultrasound Euipment Vet Echo ultrasound Machine
You are here: Home » Products » Veterinary Equipments » Vet Ultrasound Machine » HV-9 Portable Laptop Veterinary Ultrasound Euipment Vet Echo ultrasound Machine

Category List

HV-9 Portable Laptop Veterinary Ultrasound Euipment Vet Echo ultrasound Machine

Feature:
-15 inch LED screen
-Pretty, thin, and light
-2 probe connector
-Full digital imaging technology, crystal-clear Image
-3D Image function
-PC based, abundant functions
-Detail report edit function
-Powerful image management
-Large volume storage image and cineloop
-Not only can save image but also can save video
-DICOM display and transfer
-Compatible with laser/inkjet printers
-Abundant calculation functions and can select different calculate formula
-Can save and select some groups inspect parameter so save time to adjust per time
-Built-in battery(Work 3 hours)
-Multilingual(English, French, German, Spanish and so on)
-Good aluminum trunk packing
-Can set to English, French, German, Russian, Spanish and other languages
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HV-9

  • Healicom

  • 9018909000

Product Description

HV-9 Portable Laptop Veterinary Ultrasound Euipment Vet Echo ultrasound Machine

High-Quality-Hv-9-Laptop-Veterinary-Ultrasound-Scanner-for-Animals-with-Ce

Feature:
1.15 inch LED screen
2.Pretty, thin, and light
3.2 probe connector
4.Full digital imaging technology, crystal-clear Image
5.3D Image function
6.PC based, abundant functions
7.Detail report edit function
8.Powerful image management
9.Large volume storage image and cineloop
10.Not only can save image but also can save video
11.DICOM display and transfer
12.Compatible with laser/inkjet printers
13.Abundant calculation functions and can select different calculate formula
14.Can save and select some groups inspect parameter so save time to adjust per time
15.Built-in battery(Work 3 hours)
16.Multilingual(English, French, German, Spanish and so on)
17.Good aluminum trunk packing

Specification:

Maximum Scanning Depth Max. 250mm
Multi-frequency 5 segment frequencies
Cine Loop max. 1024 frames
Scanning mode B, 2B, B/M, M, 4B, 9B
Weight  Around 4.8Kg
Image gray scale 256 level gray scale
Image processing Pre-processing, after-processing, dynamic range, frame rate,  line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision
Gain 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately
Measurement and calculation(human) B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
 Veterinary:  Cattle: BPD, CRL, TD;  Horse: GA; Dog: GS; Cat: HD, BD;  Sheep: BPD, CRL, TD
Supported output apparatus U-Disk, Laser/ink printer, video printer, VGA
Zoom 0 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
Image store by hardisk or USB disk
3D image function(function) can get rebuilt 3D image by any probe
Work time by built-in battery about 5 hours
Monitor 5 inch color LED screen
Probe Connector 2
Dimension 362mm×340mm×60mm


Standard Configuration Optional
One Main Unit Linear
One Convex probe(3.5MHz) Trans-vaginal
One Power adapter Micro-convex

Rectal Probe

Bag

Trolley

 Laser Printer
