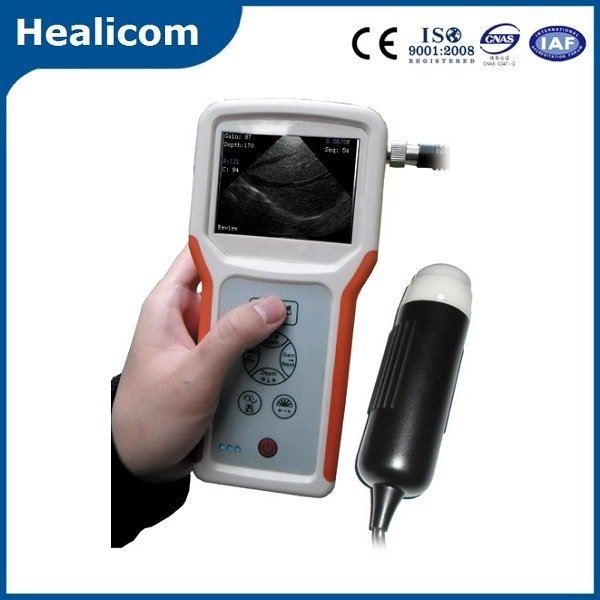

Portable Vet Ultrasound Veterinary Products Ultrasonic Diagnostic Equipment for Animal

Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HV-1

  • Ultrasound Scanner

  • Veterinary

  • Sector Sweep

  • 3.5 Inches

  • 256 Level

  • 204mm*100mm*22mm

  • 512 Frame(by SD Card)

  • Healicom

  • ISO, CE

  • 9018909000

  • Imaging Diagnostic Equipment

  • CE, ISO13485

  • Type 3

  • 3.5MHz/5MHz Probe and Can Variable Frequency

  • B

  • 8 Type

  • ≥180mm, 70mm/110mm/130mm/150mm/192mm Adjustable

  • DC 5V (by External Battery Input)

  • Carton

  • China

Product Description

Product Features:
Small portable, easy to carry;
Concise function, simple to operation;
Clear image, can be used to judgment pregnant, measuring fat;
With probe frequency conversion function, adapted to different inspection demand;
Battery can change easy, and for power dissipation is small so battery working time long;
Large capacity SD card for store image (optional);
With pseudo color display function.

Specifications:
1. Scanning system: Sector sweep;
2. Probe frequency: 3.5MHz/5MHz probe and can variable frequency;
3. Scanning depth: ≥180mm, 70mm/110mm/130mm/150mm/192mm adjustable;
4. Screen: 3.5 inches;
5. Display mode: B
6. Image gray scale: 256 level
7. Pseudo color: 8 type
8. Image store: 512 frame(by SD card)
9. Measure: Distance, Obstetrics;
10. Input power: DC 5V (by external battery input)
11. Power consumption: 7W (probe run) /2.5W (probe stop)
12. Battery work time: 10 hours
13. Size: 204mm*100mm*22mm
14. Weight: Host 300g, probe 150g
15. Probe Connector: 1
Standard Configuration
Main Host 1 Unit
3.5MHz/5.0MHz Mechanical Sector Selectable 1 PCS
Internal Battery and charger 1 Set
