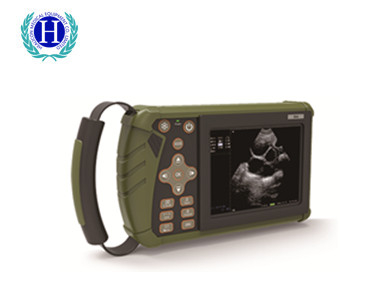

HV-1 Full Digital B/W Handheld Palm Veterinary Ultrasound Scanner Portable Vet Ultrasound System

Technical Parameters
Focus: three sections electronic focus, support point by point focus
Gain adjustment: main gain, near and far field adjustment can reach 255
15 levels contrast and brightness adjustment
Frame correlation: 15 adjustable
Probe: 3.5 MHz electronic convex array probe
Scan mode: convex array
Scanning depth: 57-230mm, 15 levels adjustable
Cine loop: 255 frames
Built-in battery: Rechargeable lithium-ion battery, imported 18650 standard batteries scan sustain for more than 4 working hours
Display mode: B, B + B
Gray: 256 levels
Pseudo color: 8 kinds
Image magnification: 15 levels magnification
Screen size: 5.6-inch high-definition LED screen
Measurements: distance, perimeter, area, volume, gestational age
Image processing: up / down, left / right flip, pseudo color processing, frame correlation, focus conversion
Gain regulation: Near field, far field, main gain dynamic adjustable continuously
Interfaces: Mini USB interface, TF card interface
Machine size
Availability:
Quantity:

PDF Export

  • HV-1
  • Healicom
  • 9018909000

Product Description


HV-1 Full Digital B/W Handheld Palm Veterinary Ultrasound Scanner Portable Vet Ultrasound System


QQtupian20

Introduction:
HV-1 ultrasound system gathers the latest digital system architecture to provide high-quality two-dimensional images.Compared with traditional desktop and portable B/W products,it has more compact body and convenient features which will make it play a greater role in the field of veterinary.
It is suitable for pigs,dogs,cats,sheep,cattle,horses and other animals.

Features:
1.Perfect Ergonomic Design

2.Compact, sophisticated, portable

3.5.6 inch LED display

4.Light weight body

5.Soft switching on/off

6.User-friendly operation interface

7.Simple and beautiful operation panel

8.Fast, convenient and flexible touch-type keyboard operation


Measurement Table:
Swine: HLA, SLA
Cattle: CTD, CHL, CCRL
Dog: HD, BD, GSD, CRL
Sheep: STD, SHD, SCRL
Equine: EEGD, ECD, ESD, EBD
Cat: HD, BD
Image processing:up/down,left/right flip,pseudo color processing,
frame correlation,fouse conversion
Interface:Mini USB interface,TF card interface


Standard configuration Optional
Machine(including a lithiun-ion battery) 7.5HZ high frequency linear probe
3.5HZ electronic convex array probe
(scanning depth:57-230mm,15 levels adjustable)
6.5MHZ rectal probe
Use's Manual 7.5MHZ back fat probe
Adapter 5.0MHZ micro convex probe
8G TF Memory card lithiun-ion battery

Car adapter

External charger

Horseshoe converter


Product details:

TIM图片20190510120639     TIM图片20190510120732
