HFX-32H Medical High-frequency 32kW Digital Mobile X ray Machine

The HFX-32H mobile DR system is a compact, lightweight, and highly portable imaging solution, designed to deliver exceptional flexibility and accessibility across healthcare facilities. Its streamlined design and effortless maneuverability make it perfect for use in demanding environments, such as isolated wards, ICUs, emergency rooms, and isolation areas. Specifically engineered for intensive bedside imaging, the system enables clinicians to conduct high-quality diagnostic exams without the need to transport critically ill or contagious patients. This not only enhances patient comfort but also significantly reduces the risks associated with moving vulnerable individuals. Equipped with advanced imaging technology and a user-friendly interface, the HFX-32H ensures precise and efficient diagnostics, making it an indispensable tool for improving patient outcomes in high-pressure medical settings.
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • HFX-32H

  • Healicom

Product Description

HFX-32H Medical Digital Mobile X Ray Machine

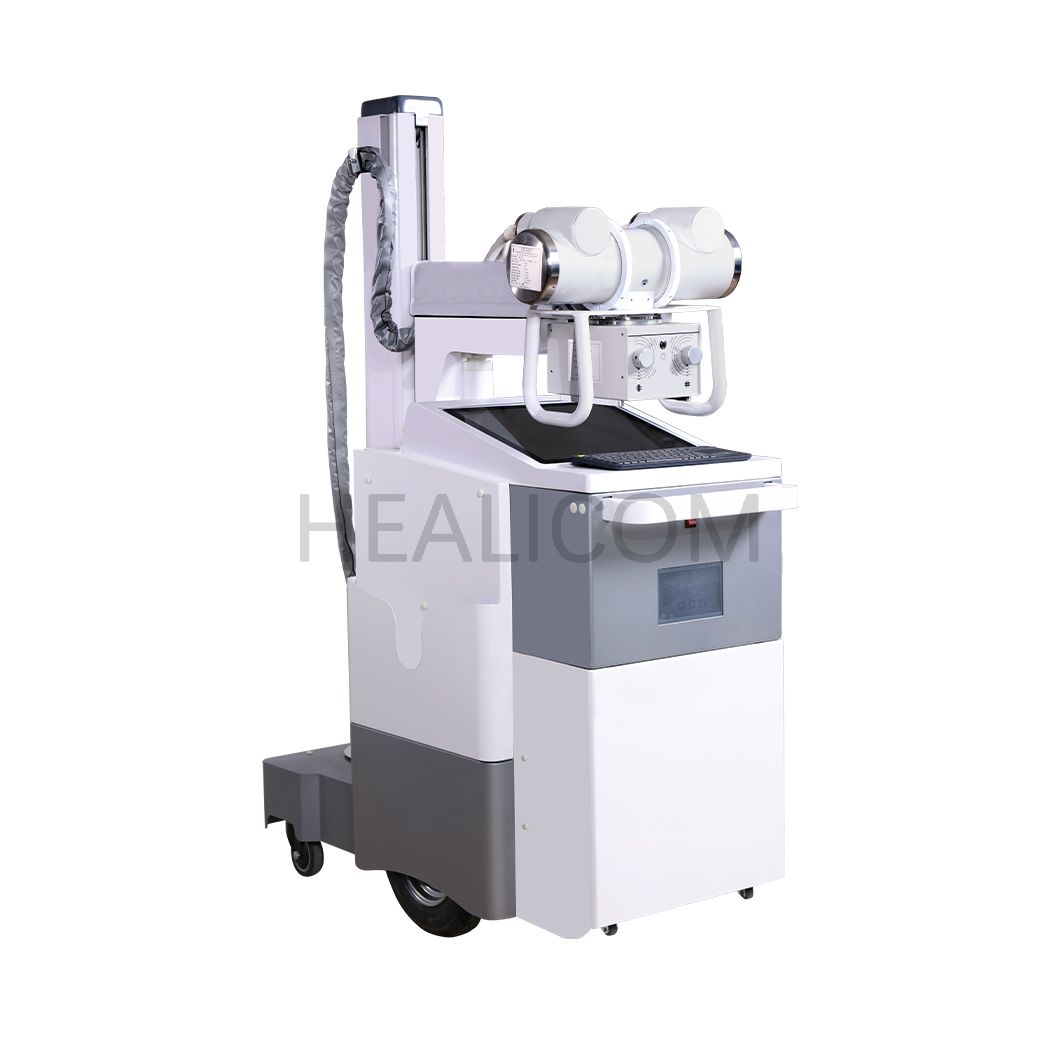

2

Technical parameters and requirements
Power requirements
Voltage
220V±10% single phase;
Frequency
50Hz±1Hz
Power supply resistance
≤0.5Ω
Host technical parameters
Main inverter frequency
≥60kH
Filament frequency
≥20kHz
Focus
0.6-1.2mm
The maximum output electric power is
32kW
Photography tube voltage adjustment range
40~125kV
Camera tube current adjustment range
10~400mA
Shooting time adjustment range
1-6300ms
Tube heat capacity
200kHU
The main parameters of the mechanical part
X-ray tube assembly rotates vertically around the cross arm
±90°
X-ray tube assembly horizontal rotation left and right
±90°
Projection size
≥430mmX430mm
Working power battery energy storage
Forward movement mode electric
Backward movement method electric
Main functions of the machine
Main parameters of the tablet
Material Amorphous silicon and cesium iodide
Pixel area 42.7 (H) × 35.6 (V)
Pixel matrix 3052 (H) × 2540 (V)
Dot pitch 139 microns
Resolution 3.6 line pairs/mm
A/D conversion 16bt
Main computer performance
CPU Intel Core i5
RAM 8GB
Hard disk 500G
Display Touch screen supports multi-touch
Screen resolution 1920×1080
configuration list
Mobile rack set
High voltage generator set
X-ray tube assembly 1
Beam limiter 1 set
Tablet PC 1
Wireless panel controller 14*17

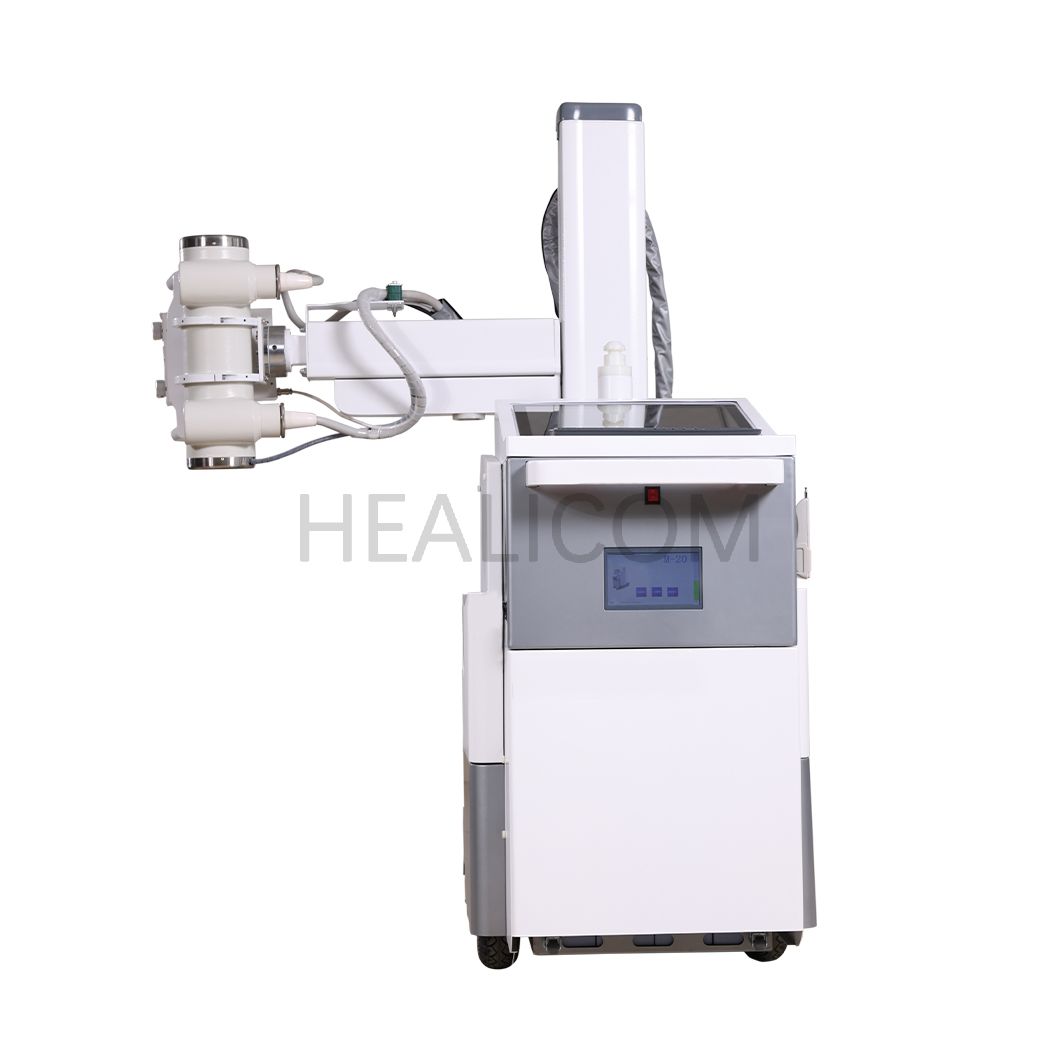

4

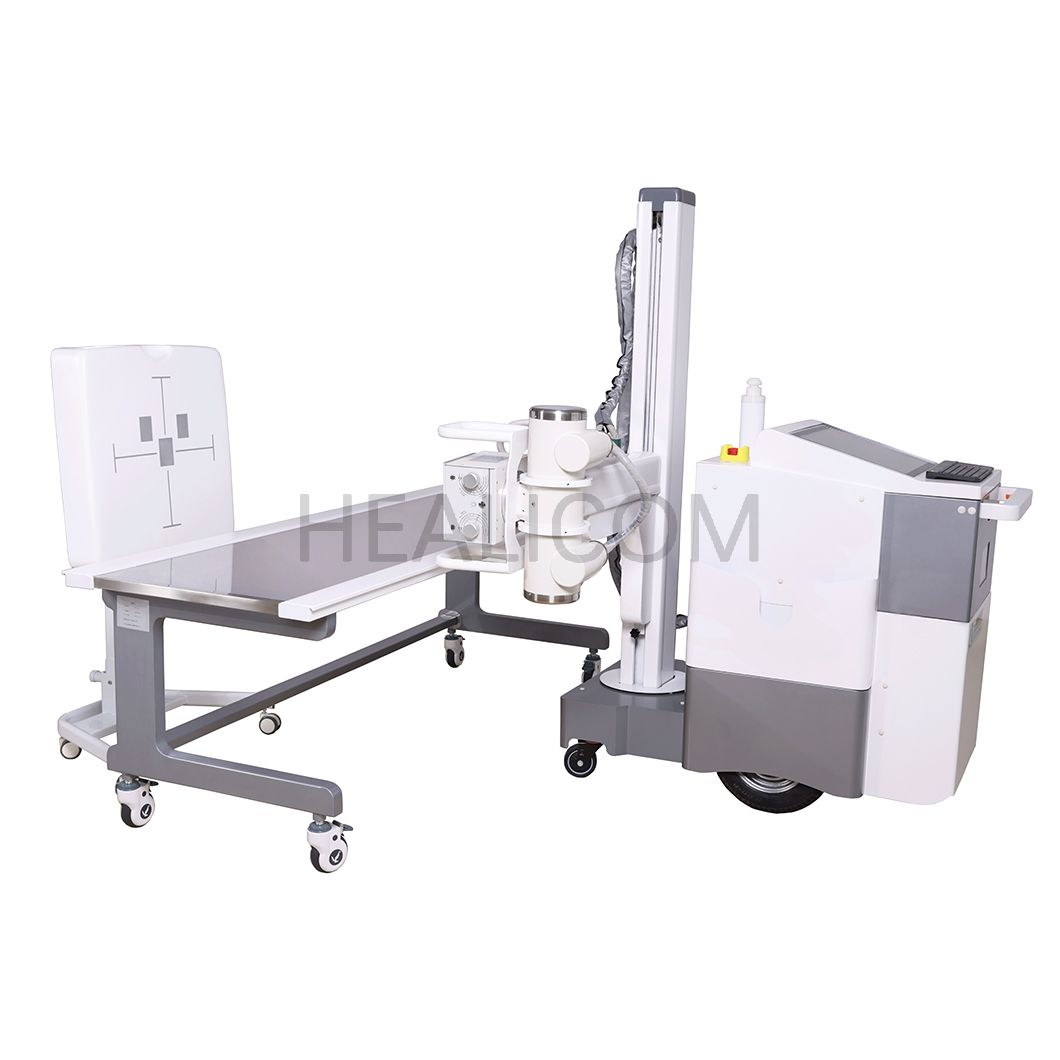

5

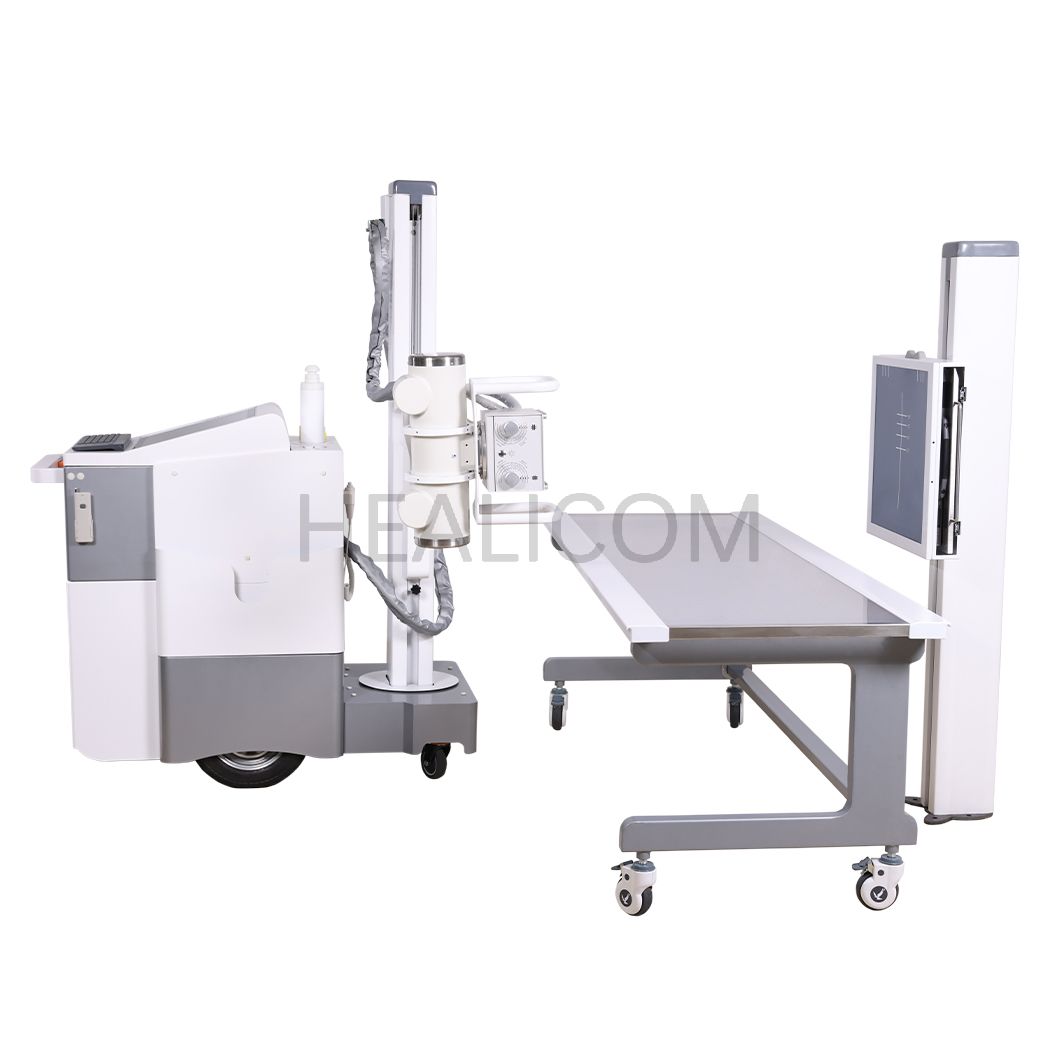

6

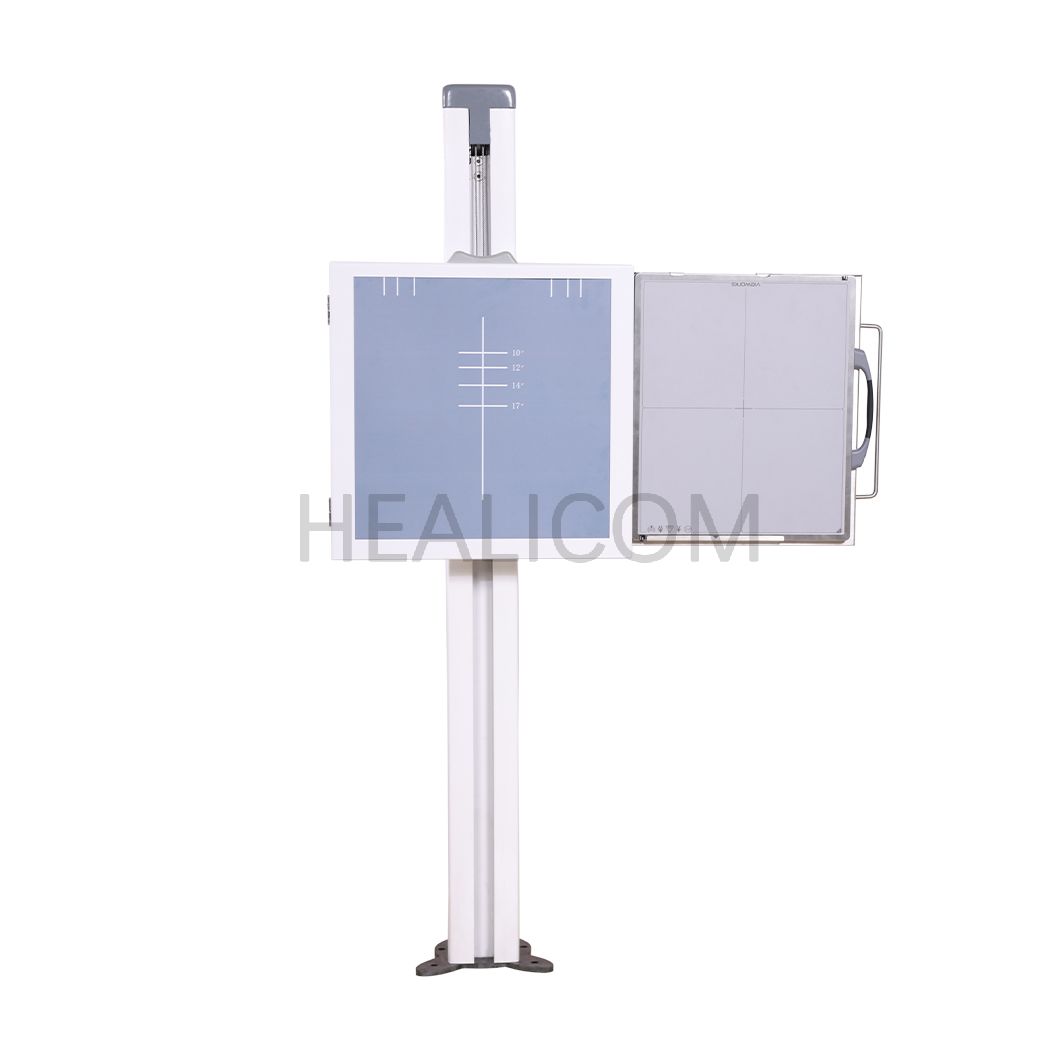

7

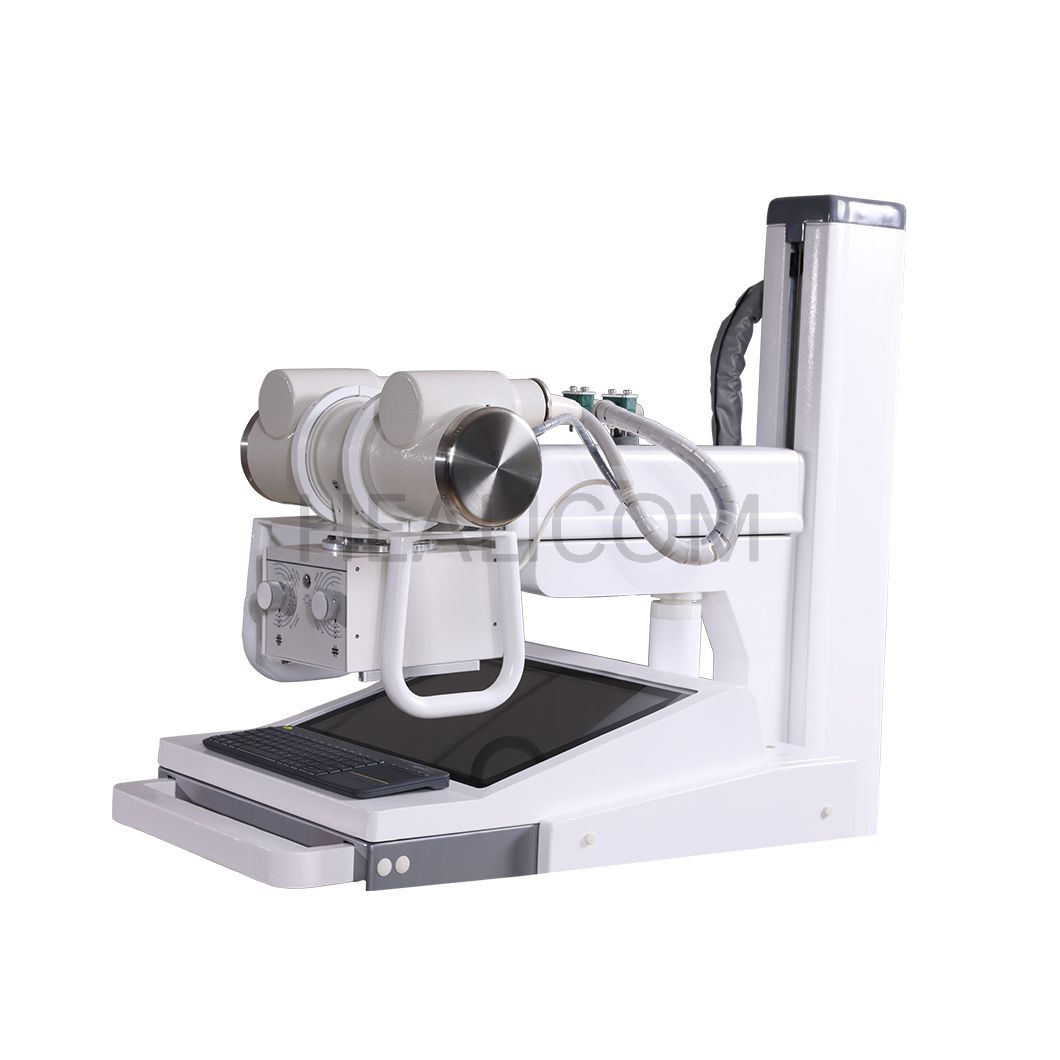

1
