HD-TS1A
Healicom
Product Description

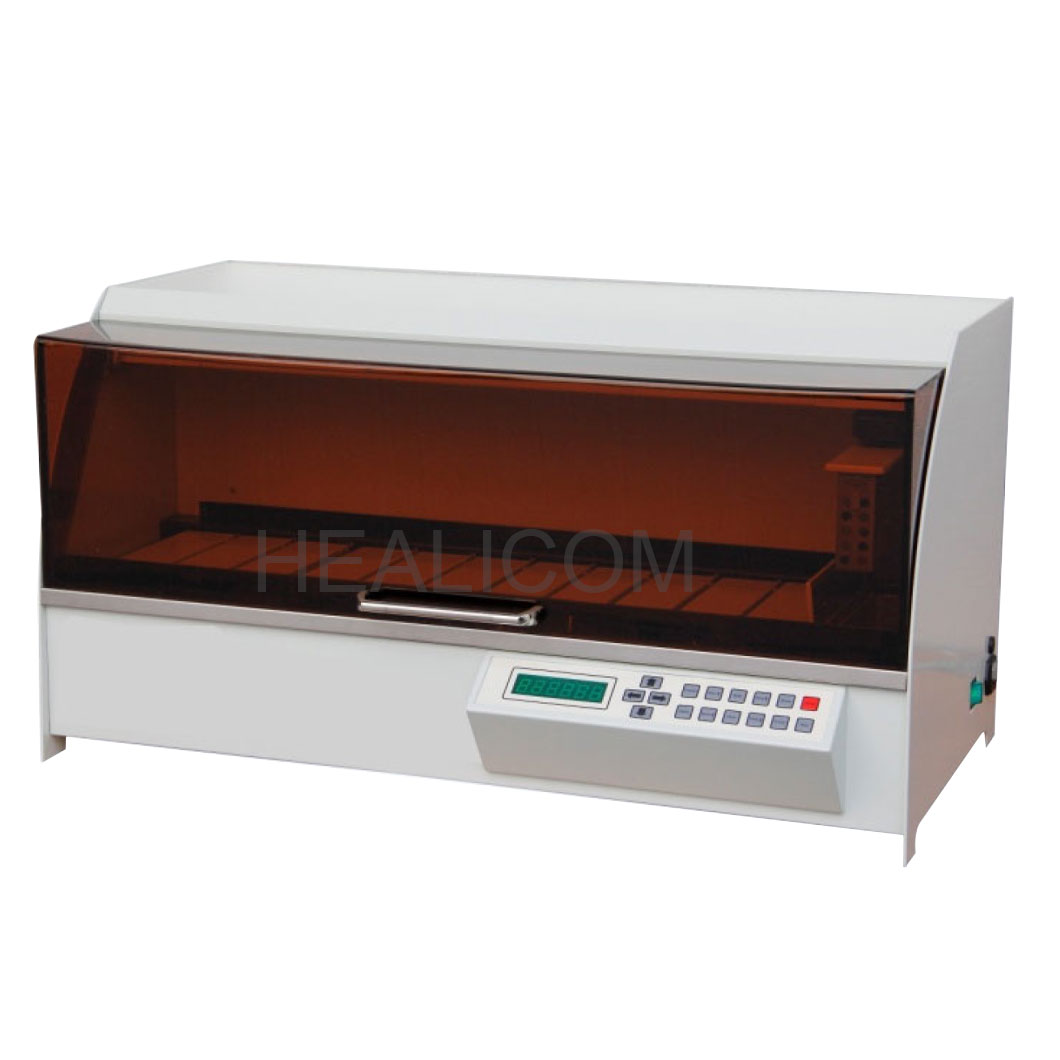

HD-TS1A Linear Type APS-coated Automatic Tissue Processor
Feature
· APS-coated, streamline-design, sturdy housing with high resistance to corrosion
· Economical, reagent saving, practical design with small footprint and low cost
· Two sets of operating programs and two sets of time-extending programs; all built-in programs have memory function
· Single-chip computer control technology allows a complete set of functions
· Well-sealed plexiglass cover with gas-effluxion mechanism, environmentally friendly and safe
· Large-capacity reagent cup: more than 40 tissue specimens can be processed simultaneously
· Not affected by short blackouts or power outages during operation
· Manual adjustment can be conducted anytime during the programmed automatic operation; afterwards, the system automatically enters the programmed operation
· Internal dry heating mechanism with high-precision temperature control
· Two-dimensional, flexible transmission system, low noise, wear-resistant
· High-precision photoelectric positioning control system to ensure reliable operation and precise positioning
· Fully intelligent design, enabling timely determination and recovery from an abnormal event
· Approximately 40 tissue samples can be processed at the same time
| Technical Specifications | |
| Number of Cups | 12 (9 for reagents, 3 for paraffin) |
| Capacity of Each Cup | 700 ml |
| Length of Processing Time in the Cup | Any length between 0 and 99 hours for the first cup Any length between 0 and 24 hours for the other cups |
| Temperature Range | RT - 80ºC |
| Dripping Time | Approximately 30 s |
| Frequency of Agitation | 2 times/minute |
| Tissue Protection Cup | at the 7th station |
| Working Voltage | AC220V±10% 50Hz (standard model) AC110V±10% 60Hz |
| Power Requirements | 500 W |
| Heating Control | heating automatically begins when the tissue enters the 2nd cup, thus avoiding unnecessary energy waste |
| Dimensions | 795×435×415 mm (W×D×H |
| Weight | 50kg |
