Product Description

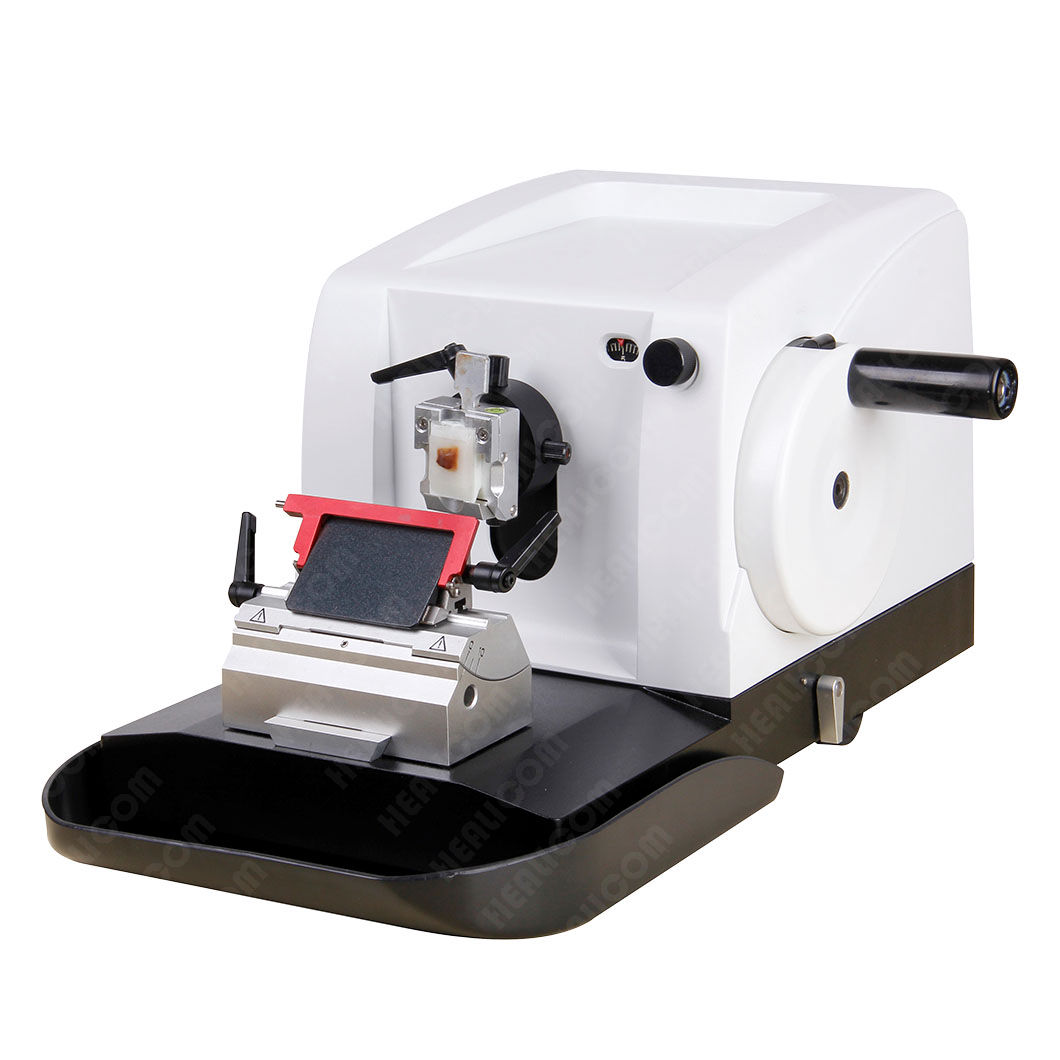

HC-2260 High Performance High-precision Hand-wheel Rotary Microtome

Feature:

* Streamlined housing not only improves the appearance but also facilitates the cleaning process without the need to open the housing; Also can put some consumables;

* Uses imported cross-roller guide rails and a screw motion mechanism to ensure precision resulting in superior sectioning performance;

* Advanced high-precision micro-drive feed system enables even and high-precision sectioning;

* Hand-wheel is rotated based on a mechanical balance mechanism, and can be locked at any position, providing the maximum level of safety and convenience;

* Cassette holder can be locked at any position along each of the three axes, enabling easy adjustment of the specimen sectioning angle;

* The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment;

* Easy and fast switching between different specimen clamps (two options: paraffin block clamp and cassette clamp);

* The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables easy changing of the blade;

* The blade holder can be laterally moved and adjusted, without the need to manually move the blade, enabling use of the full length of the blade (slicing at three different segments);

* Ergonomic design, greatly reducing the discomfort associated with long hours of operation;

* Hand-wheel balance is precisely adjusted and can be locked at any position to ensure the safety and convenience of sectioning;

* Well-designed tray on the top of housing, convenient use;

* Magnetically fixed large waste tray is easy to install and uninstall.


Technical Specifications
Section Thickness Setting Range
0–60μm
Section thickness setting options
0–10μm increment 1μm
10–20μm increment 2μm
20–60μm increment 5μm
Trimming Thickness Setting Range
0 - 60μm
Minimum Setting of Sectioning Thickness
1μm
Total Horizontal Specimen Feed
29mm
Vertical Specimen Stroke
60mm
Movement Range of the Base of Blade Holder Base
0-60mm (front to back)
Movement Range of the Blade Press plate
0-23mm
Maximum Specimen Size
60×70mm
Specimen Orientation
XY – 8°
Precision Error
±1%
Dimensions
570×440×290mm (W×D×H)
Net weight
28kg
