HD-BM&BL
Healicom
Product Description

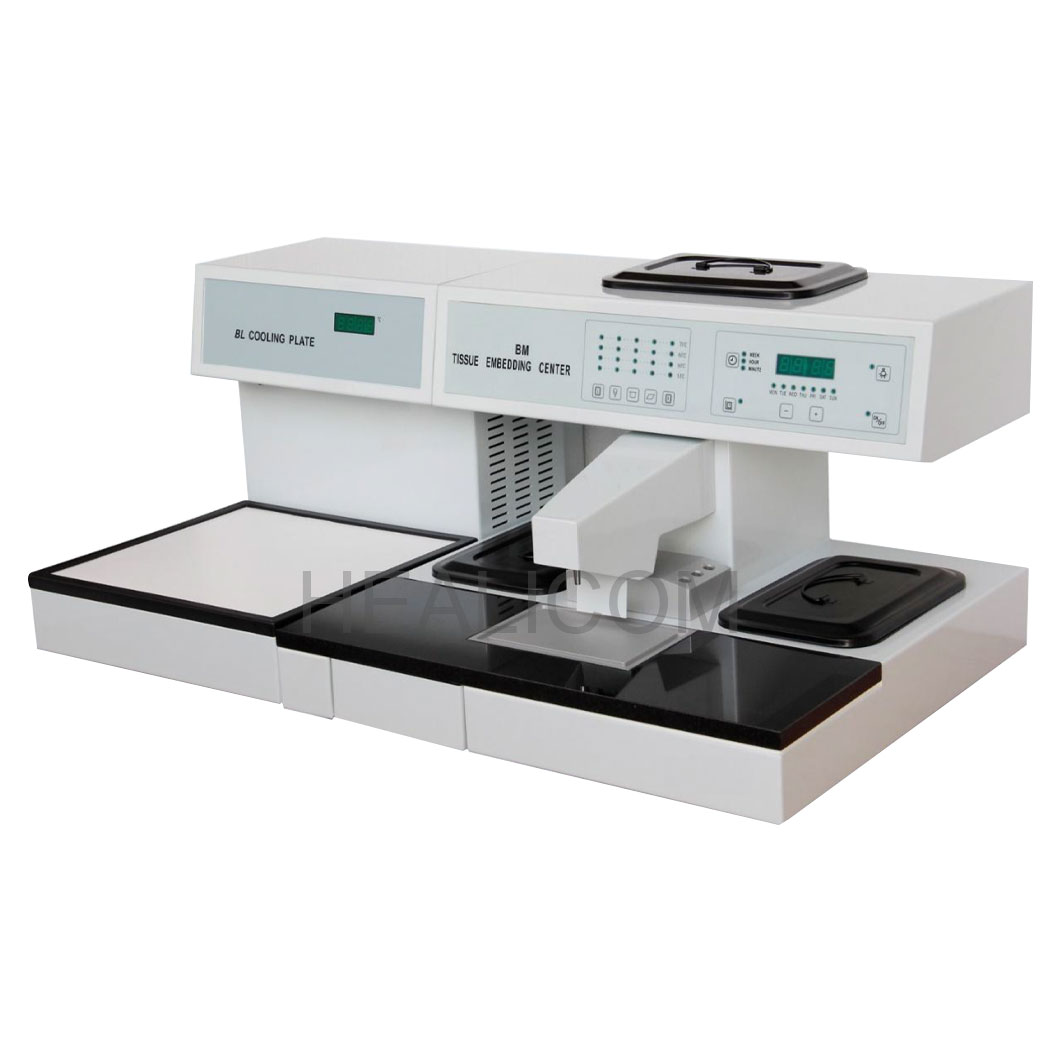

HD-BM&BL Laboratory Tissue Embedding & Cooling System
Features:
·Fully programmable computer controls allow automatic system start and stop anytime (weekly);
·Temperature is controlled by microprocessors made in the USA and they are displayed using color-changing LEDs to enable clear visibility of working status;
·Five heated areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, and heating plate (working area), are individually controlled and work independently without interference from each other;
· Flexible heating mechanism overcomes the shortcomings of traditional technology that can result in excessive temperature differences,System provides fast heating and precise temperature control. In addition, the dual-protection from overheating is safe, reliable and energy-saving;
·Automatic memory and restoration functions: After startup, all preset temperature data are automatically stored in the system;
·Flexible module configuration options through a design which separates the Cryo Module from Embedding Module;
·Safe and reliable low-voltage illumination system;
·Heated working plate and forceps wells make tissue embedding more convenient;
·Large granite working area eases the cleanup of excessive paraffin.
| Technical Specifications | |
| Paraffin Chamber Capacity | 3 liters |
| Temperature Range of Forceps Wells | 55 - 70ºC |
| Temperature Range of Paraffin-melting Chamber | 55 - 70ºC |
| Temperature Range of Thermal Storage Compartments | 55 - 70ºC |
| Temperature Range of Heated Working Areas | 55 - 70ºC |
| Temperature Range of Paraffin dispenser | 55 - 70ºC |
| Temperature Control Precision | ±1% |
| Paraffin Flow Control | Paraffin flow control via finger touch plate and optional foot pedal |
| Fully programmable ON/OFF control allows automatic system start and stop anytime weekly | |
| Working Temperature of Cryo-Module | ≤ -20ºC |
| Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 650W (HC-BM), 300W (HC-BL) |
| Dimensions | 525×550×385 mm (W×D×H) (HC-BM) 590×345×385 mm (W×D×H), (HC-BL) |
| Net weight | 26kg (HC-BM); 27kg (HC-BL) |
