HC-202
Healicom
Product Description
Feature:

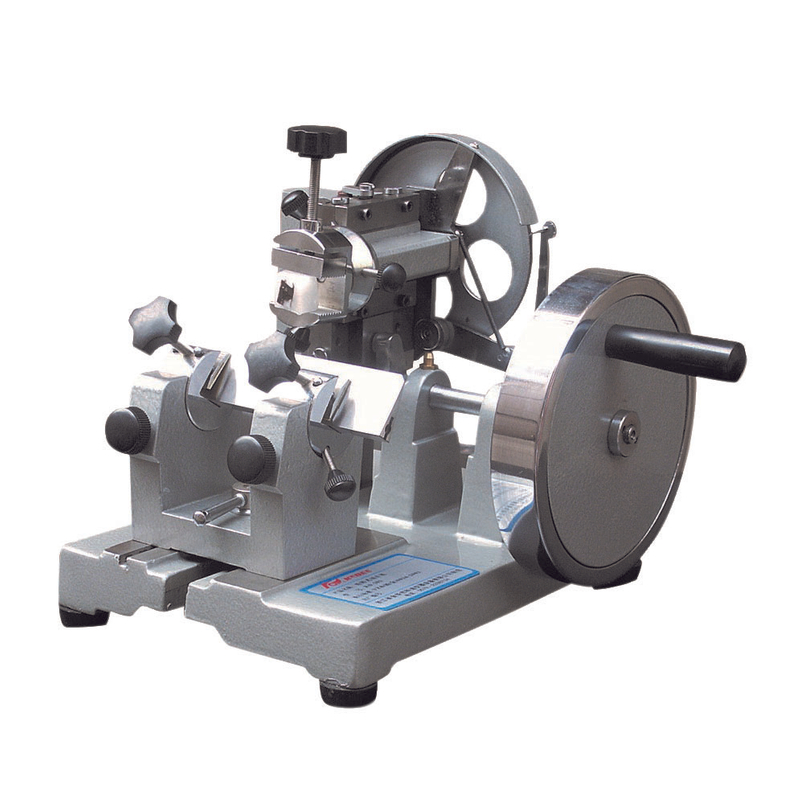

HC-202 Rotary Microtome is a simple but practical model. This product consists of a crank driving system and ratchet wheel feeding mechanism, and can provide even and continuous sectioning.
Technical Specifications | |
Section Thickness Setting Range | 0 - 25μm with an increment of 1μm |
Trimming Thickness Setting Range | 0 – 500μm |
Minimum Setting of Sectioning Thickness | 1μm |
Maximum Specimen Size | 35×25 mm |
Total Horizontal Specimen Feed | 30 mm |
Vertical Specimen Stroke | 55 mm |
Precision Error | ±5% |
Dimensions | 280×300×240mm (W×D×H) |
Net weight | 20kg |
