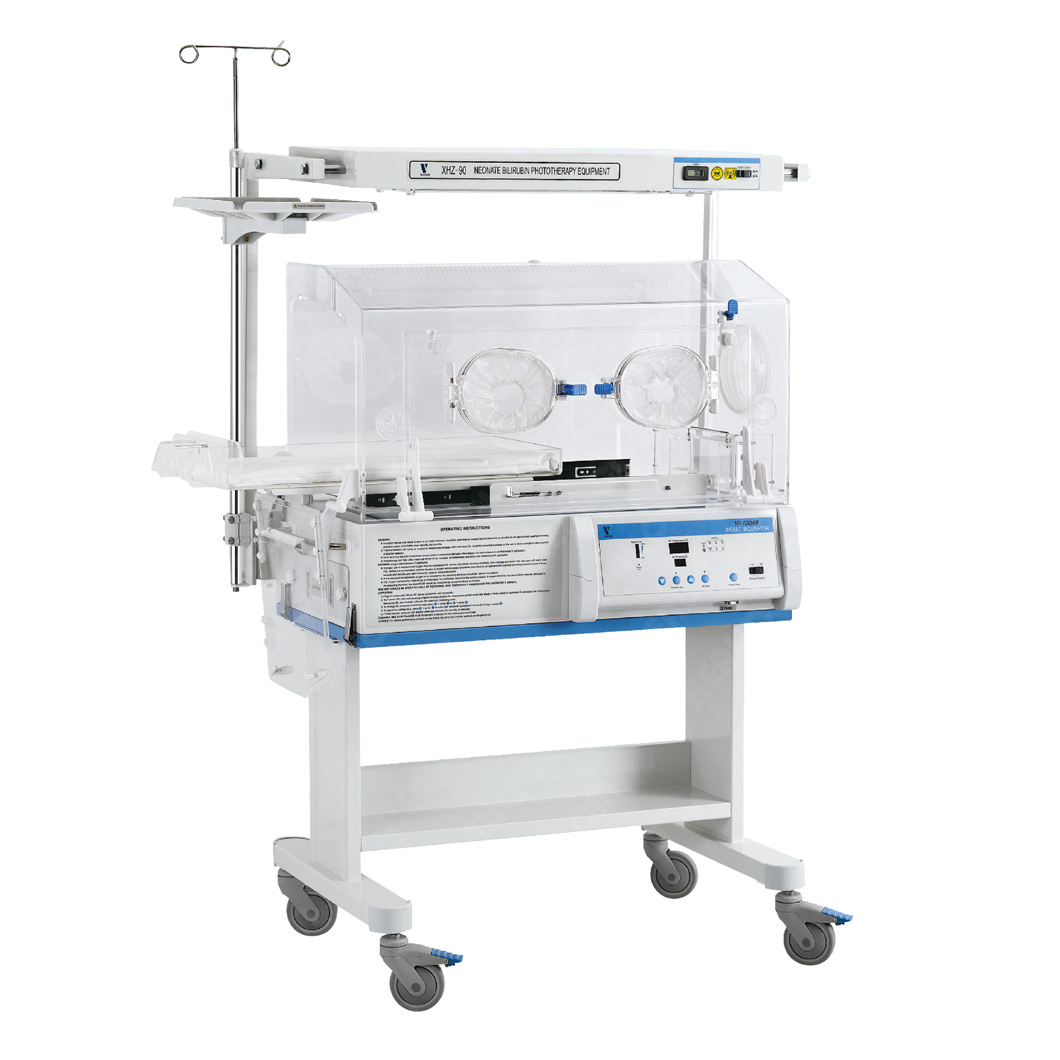

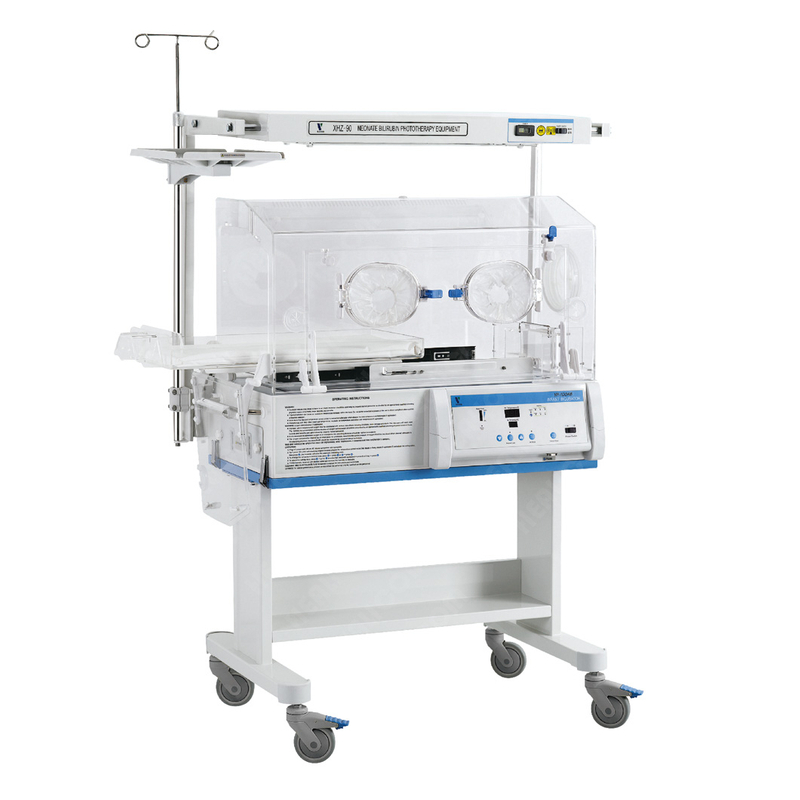

H-3500
Healicom
Product Description
Brief introduction
● Air mode control, set temperature and air temperatures are displayed separately;
● Passive humidification;
● Multiple failure alarm indications;
● RS-232 connector for data output;
● Configure with fixed Neonate Bilirubin Phototherapy Equipment model XHZ-90 with blue fluorescence lamp;
● Lose noise DC motor;
Standard Configuration
Hood, Base,Controller, 1.v pole, Shelf, side door.Neonate Bilirubin Phototherapy Equipment with Blue Light Fluorescent Tubes (Fixed model).
Optional Configuration
">37℃" temperature override mode function, Baby mode,Neonate Bilirubin Phototherapy Equipment with Blue LED(Fixed model), and SpO2.
Specification | |
Power requirement | AC220V-230V/50Hz or AC110-120V/50-60Hz,850VA |
Control Mode: | Air mode control by microcomputer |
Air temperature control range | 25℃-37℃ |
override mode | 37℃-39℃ is optional |
The temperature fluctuation range between incubator temperature and average incubator temperature (under stable temperature condition) | ≤0.5℃ |
Temperature uniformity | ≤0.8℃ |
Noise inside hood | ≤45dB(A) |
Failure alarm | : over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on. |
