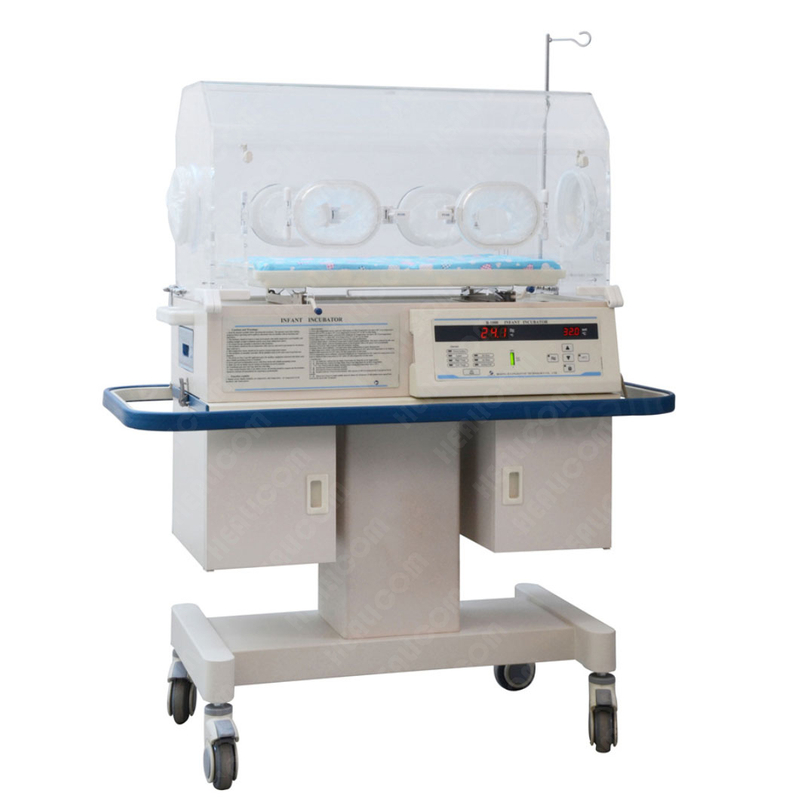

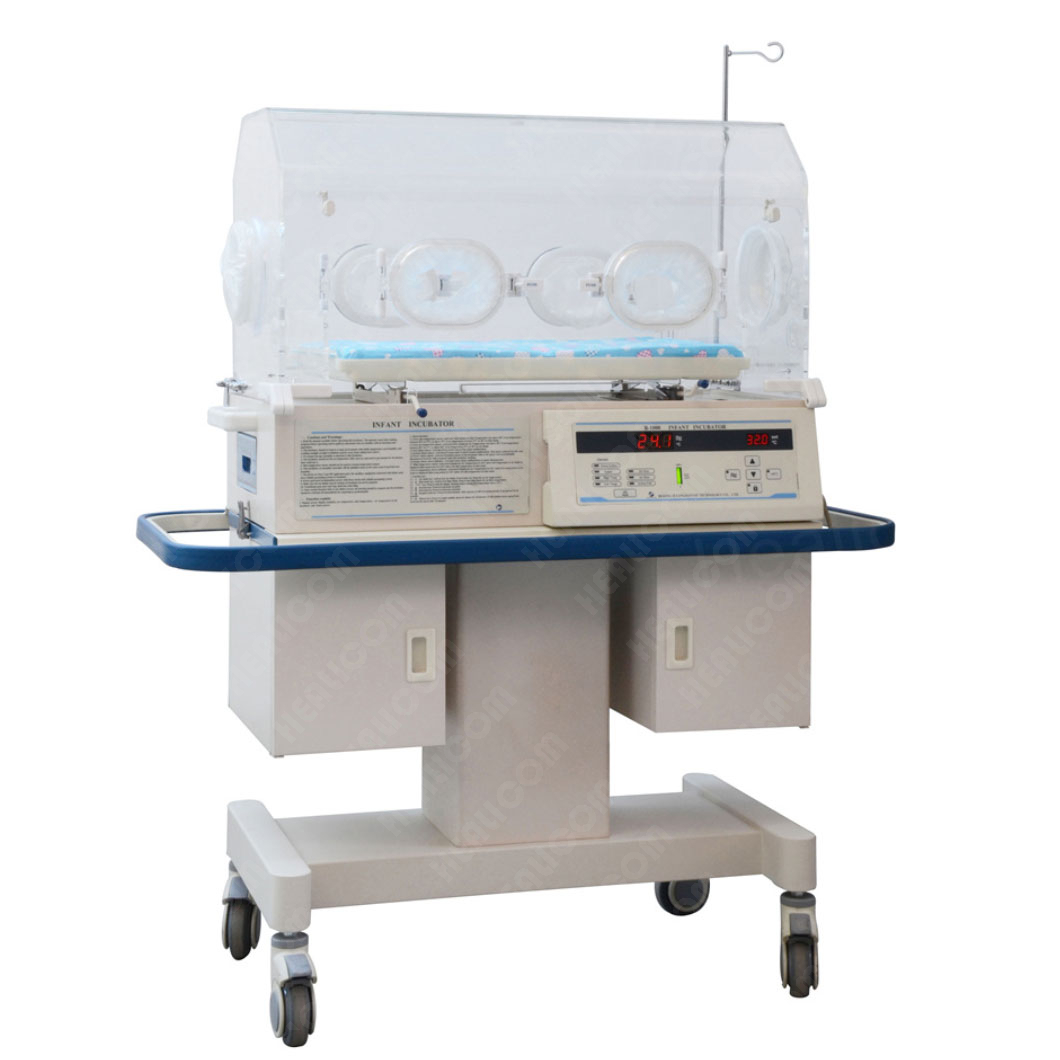

H-1000 Medical Infant Incubator

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
H-1000
Brand:
Healicom

Product Description

Product Description

Features

1. Servo Control Mode: air temperature;
2. Parameter Displaying: set temperature,air temperature, heat power rate;
3. Audible & Visual Alarms: powerfailure, sensor failure, higher & lower temp, air temperature override,fan failure, system failure;
4. >37ºC Preset Mode: power failure reset memory, alarm silence, keypad lock, self-testfunction;
5. Hood with dual slope; 6 hand-ports;
6. RS-232 Output Connector (use for networksystem);
7. IV poles;
8. Protective guard rail;
9. Storage cabinets

Technical Specifications

Power requirement	≤400VA
Temperature control mode	Air servo control
Air Temp Control Range	20.0ºC-37.0ºC
Temperature override mode to	37.1ºC-39.0ºC
Temperature fluctuation	≤0.5ºC
Mattress temperature uniformity	≤0.8ºC
Temperature rise time	≤45 min
Noise level within hood environment	≤55dB
Alarms	Power failure alarm, Fan failure alarm, Sensor failure alarm
High air temperature alarm	+3.0ºC
Low air temperature alarm	-3.0ºC
Over air temperature alarm	≤38.0ºC; ≤40.0ºC
System failure alarm
Alarm silence function

Specifications of hood
Mattress to Hood: 450 mm
Observation side of hood: Two incline
Operate port: 6 (2 Iris ports)
Tubing grommets: 4
Front access panel: 826×310 mm
Mattress Tray Size: 630×360 mm
Infant bed tilt adjusting ±10° step-less

Operational condition
Environment temperature: +20ºC-+30ºC
Environment relative humidity: 30%-75%
Environment air velocity of flow: <0.3m/s

Others
Mattress tray Max. load 5kg
Transfusion pole Max. load 2kg
Cabinet Max. load 6kg
