Product Description

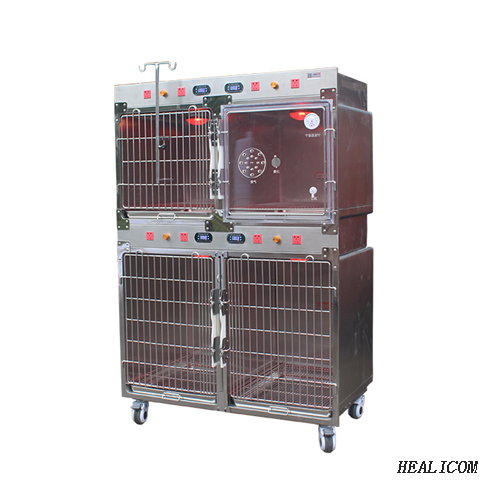

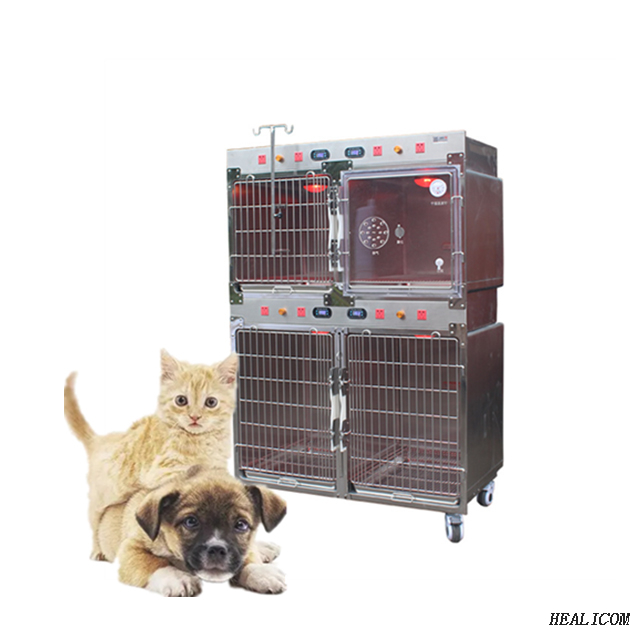

Inpatient Vet Oxygen Chamber Cage with Power Supply

Product Description




Product feature:

1. The cage structure is reasonable, super pressure-bearing, sturdy and durable.
2. The door lock has a unique sliding design, which is automatically locked and has good safety.
3. The pedal mesh and the cage door are high frequency and high current welding, which is firm not desoldered.hygienic
4. No dead angle design for Dirt receiving basin, and it is made of full round corners, washing is convenient.
5. Seamless water retaining edge for more convenient and hygienic use
6. The lower cage active plate design, the pumping plate can be changed into a large cage.
7. Move brake wheel at the bottom, quiet, wear-resistant, easy to move and fix.
8. The cage is innovative and exquisite. Feel free to combine and customize on demand.
9.Withwarm light, Inpatient oxygen chamber, 16-bit power connector,Dry and wet temperature display, Leakage Protection
10. Thermostat controller, Over-temperature electric power off, Safe and reliable

Parameter:
The out size 1220*700*1810mm(L*D*H)
The upper cage 610*610*700mm (L*H*D)
The under cage 610*820*700mm (L*H*D)
Dirt receiving basin 687*540*45mm (L*W*H)
Pedal mesh 687*545*10mm (L*W*T)
Power Supply Layer 1220*600*120mm (L*H*T)
The under cage door 530*690*8mm (L*H*T)



Material:

Fully 304 stainless steel material, anti-corrosion, acid-proof and rust-free, thickness of the cage material is 1.2mm, the cage door is composed of 8mm diameter and 6mm diameter steel wire. The Pedal mesh is composed of steel wire with diameter 10mm and diameter 4mm. The thickness of Dirt receiving basin is 0.8mm.The bottom moving wheel uses a high-strength medical universal brake wheel.
