WET-6000
Healicom
Product Description
1.parameter of endoscope
1-1 | Top diameter | ≤Φ8.0mm |
1-2 | Input tube | ≤Φ8.0mm |
1-3 | Biopsy channel | ≥Φ2.0mm |
1-4 | Working length | ≥1500mm |
1-5 | Total length | ≥1800mm |
1-6 | Field of view | ≥140º |
1-7 | Depth of field | ≥3-100mm |
1-8 | Image solution | ≥480000pixels (CCD) |
1-9 | Bending angles | ≥ up210º down≥90º left&right≥100º maximum 230 |
1-10 | Image frozen | 16 images frozen,stroe,playback. |
1-11 | warranty | One year |
2.parameter of processer& light source
2-1 | Contrast adjustment | 0-128 |
2-2 | Image adjustment | color adjustment level: 0-128，vessel enhancement |
2-3 | Metering mode | AVE/PEAK |
2-4 | Image enhance | 0-30 |
2-5 | White balance | Auto/manual white balance |
2-6 | Pump | pressure 30-80Mpk，air supply 4L/min-10L/min |
2-7 | illuminance | ≥200000Lx，LED light source 30000hours life. |
3.parameter of suction device
3-1 | Vessel capacity | Not less than 1 l |
3-2 | Maximum suction volume | 20 L / Min |
4.parts list
product name | Quantity | Remark |
WET-6000 video Endoscope | ||
WET-6000 video Endoscope | 1 | |
Biopsy forceps | 6 | Different type |
Cleaning brush | 1 | |
Mouth pad | 3 | |
Leak detector | 1 | |
Leak cover | 1 | |
Clean lid | 1 | |
Attract the valve body baffle cap | 2 | |
Water bottle interface seal ring | 6 | |
Wash ear ball | 1 | |
Water injection bottle assembly | 1 | |
Endoscopic box | 1 | |
Instructions | 1 | |
EMV-3000 Endoscope processor &light source （With air pump and SD record card and Rigid endoscope interface） | ||
EMV-3000 Endoscope processor &light source（LED lamp） | 1 | |
power cable | 1 | |
Instructions | 1 | |
Suction device | 1 | |
Suction device | 1 | |
power cable | 1 | |
Instructions | 1 | |
Trolly | 1 | |
15” LCD monitor | ||

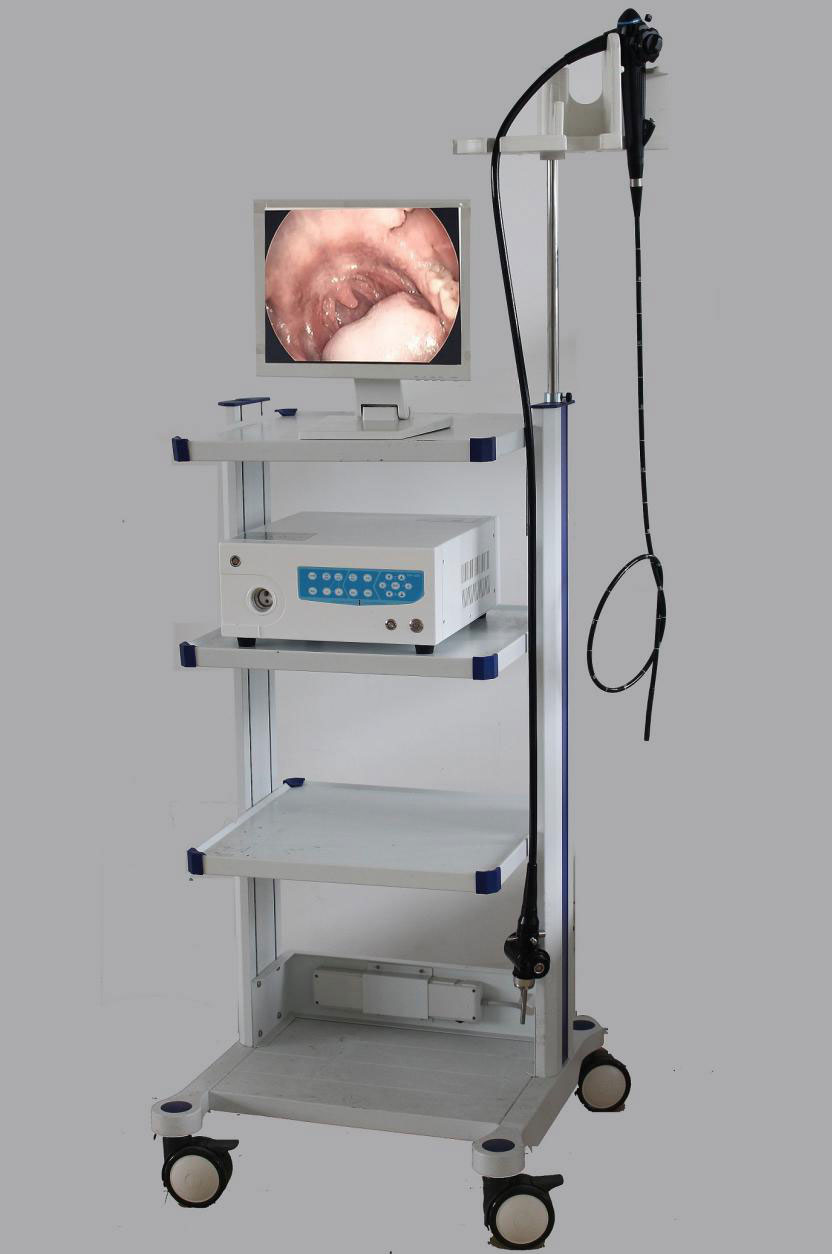

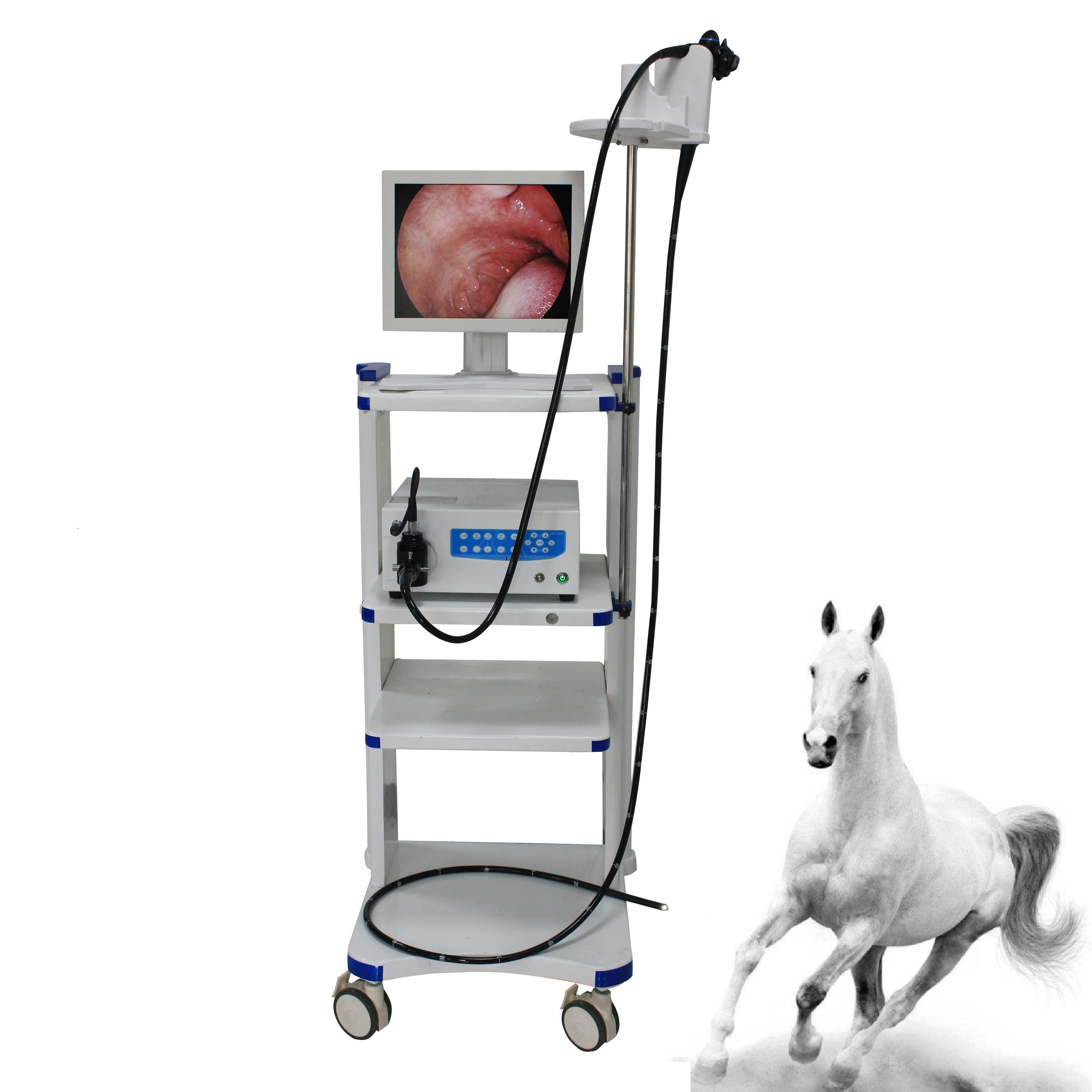

5.picture of products
