WG
Healicom

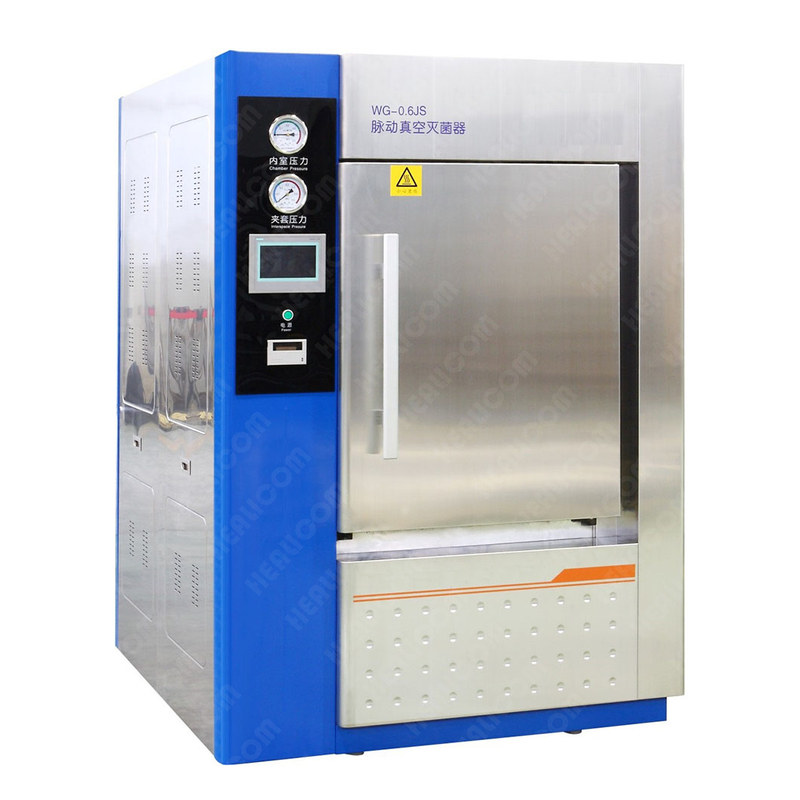

Product Description
• it is designed and manufactured in accordance with GB150 "the Pressure Vessel”, GB 8599 “The Technical Requirements of Large Steam Sterilizer--Automatic Control Protocol”, and TSG R0004 the “Safety and Technology Specification for Fixed Monitor Vessels” and related inspection procedures.
• Tank of the horizontal rectangular double-deck structure is made from S30408.
• Door sealing: Pneumatic sealing; both doors are interlocked and completely conform to the requirements of the specification.
• The equipment has standard GMP authentication interface.
Sterilizer piping system: the pipeline is designed with the best configuration. By employing imported parts and quality domestic brands into main components.
Sterilizer control system: with the adoption of Siemens PLC plus Siemens touch screen, this system is easy to implement the program selection, parameter setting, equipment operation, report processing and other functions. It has perfect safety measures. The F0 value and the temperature time gives double guarantee for sterilization. A single parameter control is also available. It has a perfect sterilization records.
| Main Parameters and Utilities | |||
| design pressure | 0.245MPa | working pressure | 0.225 MPa |
| design temperature | 139℃. | working temperature | 105-134℃ |
| vacuum | -0.09 MPa | temperature equilibrium | ≤±1℃ |
| water source pressure | 0.15-0.3 MPa | compressed Air pressure | 0.3-0.7 MPa |
| steam pressure | 0.3-0.7 MPa | power | AC380V/50HZ The three-phase and five-wire system |
| Size & Utilities | ||||||
| Model | overall size L×W×H （mm） | Chamber size L×W×H （mm） | Steam consumption （kg） | Tap water consumption （kg） | Power （kw） | Net weight （kg） |
| WG-0.25 | 1100×1350×1900 | 800×600×600 | 18KG | 35 KG | 2+24KW | 900Kg |
| WG-0.36 | 1300× 1350× 1900 | 1000×600×600 | 25 KG | 40 KG | 2+24KW | 1000 Kg |
| WG-0.6 | 1500× 1360× 1950 | 1200×610×910 | 30 KG | 45 KG | 3+36KW | 1400 Kg |
| WG-0.8 | 1800× 1360 ×1950 | 1500×610×910 | 40 KG | 50 KG | 3 KW | 1600 Kg |
| WG-1.2 | 1750 ×1440× 1950 | 1450×680×1180 | 48 KG | 55 KG | 4 KW | 1800 Kg |
| WG-1.5 | 2150 ×1440 ×1950 | 1850×680×1180 | 55 KG | 60 KG | 4 KW | 2000 Kg |
| WG-2.0 | 1950 ×1750× 2200 | 1600×900×1400 | 65 KG | 65 KG | 4.5 KW | 2500 Kg |
| WG-2.5 | 2300 ×1750× 2200 | 1950×900×1400 | 75 KG | 75 KG | 6 KW | 3000 Kg |
| WG-3.0 | 2700 ×1750× 2200 | 2400×900×1400 | 90 KG | 90 KG | 8 KW | 3500 Kg |
